Headliner: Service and Repair

Headliner Replacement

Removal Procedure

Caution: Do not attempt to repair or alter the head impact energy-absorbing material glued to the headliner or to the garnish trims. If the material is damaged, replace the headliner and/or the garnish trim. Failure to do so could result in personal injury.

1. Remove the center pillar upper trim panel.
2. Remove the windshield side upper garnish moldings.
3. Remove the coat hooks.
4. Remove the roof rail assist handles.
5. Remove the sunshades.
6. Remove the dome lamp.




7. Disconnect the headlining trim finish panel wire harness connectors.

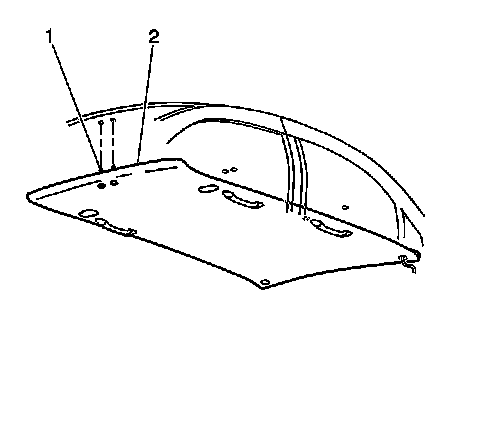

8. Remove the headlining trim finish panel rear retainers (1).
9. Remove the headlining trim finish panel (2) from the vehicle.

Installation Procedure




1. Install the headlining trim finish panel (2) into the vehicle.
2. Install the headlining trim finish panel rear retainer (1).
3. Connect the headlining trim finish panel wire harness connectors.
4. Install the dome lamp.
5. Install the sunshades.
6. Install the roof rail assist handles.
7. Install the coat hooks.
8. Install the windshield side upper garnish moldings.
9. Install the center pillar upper trim panel.
