Exhaust Pipe: Service and Repair

Intermediate Pipe Replacement

Removal Procedure

1. Notice:
Do not over-flex or damage the flex decoupler joint when moving the flex decoupler joint from the normal mounting position. The flex decoupler joint will flex a maximum of six degrees which is equivalent to the pipes connected at the joint which move 1 inch for each foot length of pipe. A three foot pipe would move a maximum of three inches.

Important:
A service muffler will be needed when replacing the intermediate pipe on an originally equipped, welded system.

Raise the vehicle.
2. Support the 3-way catalytic converter.

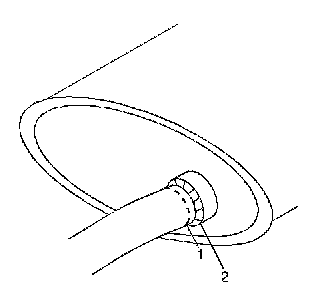

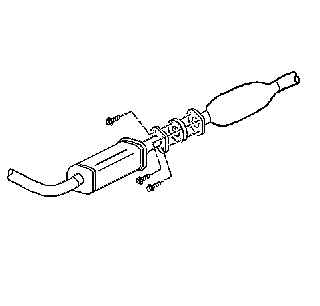

3. Cut the intermediate pipe (1) at the muffler (2).





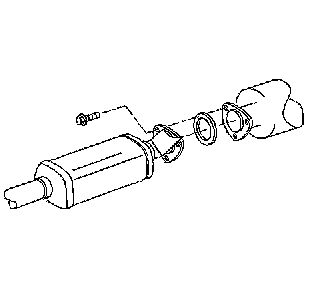

4. Remove the intermediate pipe from the 3-way catalytic converter.

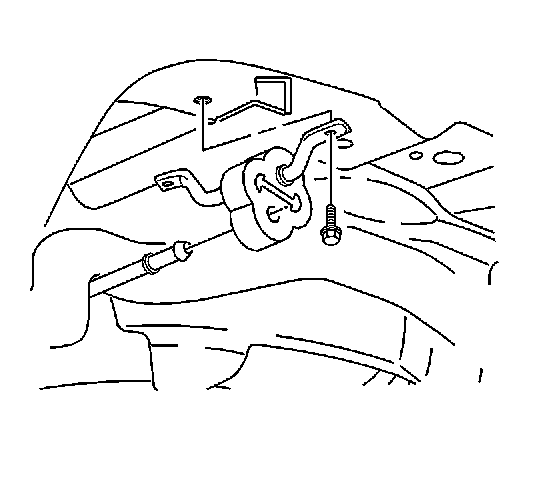

5. Remove the intermediate pipe from the hanger.
6. Remove the intermediate pipe.





7. Remove the 3-way catalytic converter seal.
8. Clean the flange surface.

Installation Procedure





1. Install the 3-way catalytic converter seal.





2. Install the intermediate pipe to the hanger.





3. Install the intermediate pipe to the 3-way catalytic converter bolts.
^ Tighten the bolts to 34 Nm (25 ft. lbs.).





4. Clamp the muffler (2) to the intermediate pipe (1).
^ Tighten the clamp to 50 Nm (37 ft. lbs.).
5. Lower the vehicle.
