Muffler: Service and Repair
Muffler ReplacementRemoval Procedure
1. Raise and suitably support the vehicle.

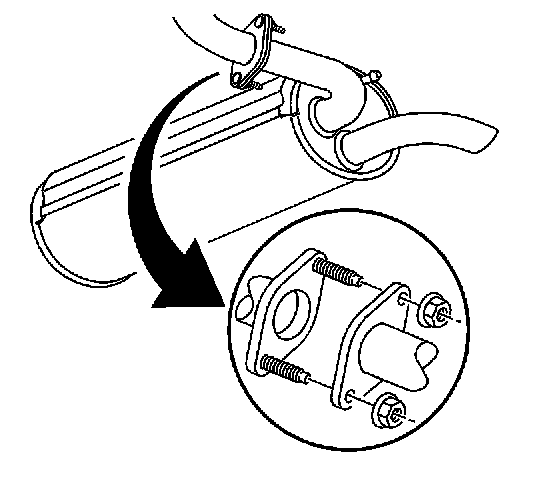

2. Remove intermediate pipe to muffler nuts.

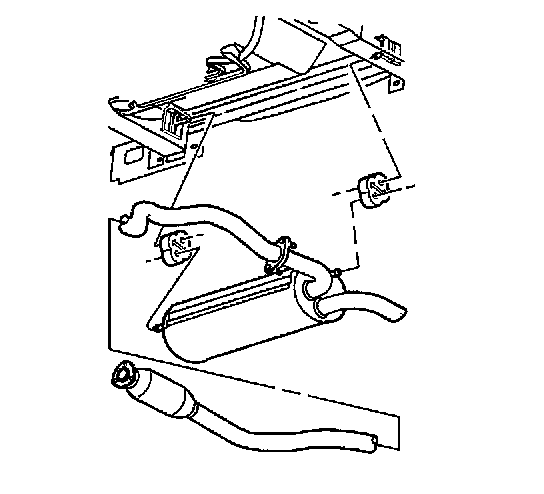

3. Disconnect the exhaust muffler rear hanger insulators from the exhaust muffler.
4. Remove the exhaust muffler.
Installation Procedure
1. Install the exhaust muffler.
2. Connect the exhaust muffler rear hanger insulators to the exhaust muffler.
3. Notice:
Refer to Fastener Notice in Cautions and Notices.
Install the exhaust muffler to the intermediate pipe.
^ Tighten the exhaust muffler nuts to 50 Nm (37 ft. lbs.).
4. Lower the vehicle.
5. Inspect the exhaust system for leaks and underbody contact.
