Glove Box Lamp: Service and Repair

INSTRUMENT PANEL (I/P) LAMP REPLACEMENT

REMOVAL PROCEDURE




1. Remove the instrument panel cluster.

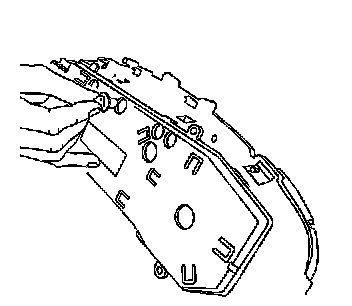

2. Remove the lamp socket from the IP cluster by rotating the socket counterclockwise.
3. Remove the bulb from the lamp socket.

INSTALLATION PROCEDURE




1. Install the bulb into the lamp socket.
2. Install the lamp socket to the IP cluster by rotating the socket clockwise.
3. Install the cluster into the instrument panel.
