Front Suspension
Wheel Bearing/Hub Replacement - FrontRemoval Procedure
1. Raise the vehicle.
2. Remove the tire and wheel assembly.
3. Remove the wheel drive shaft nut.
4. Remove the brake rotor.

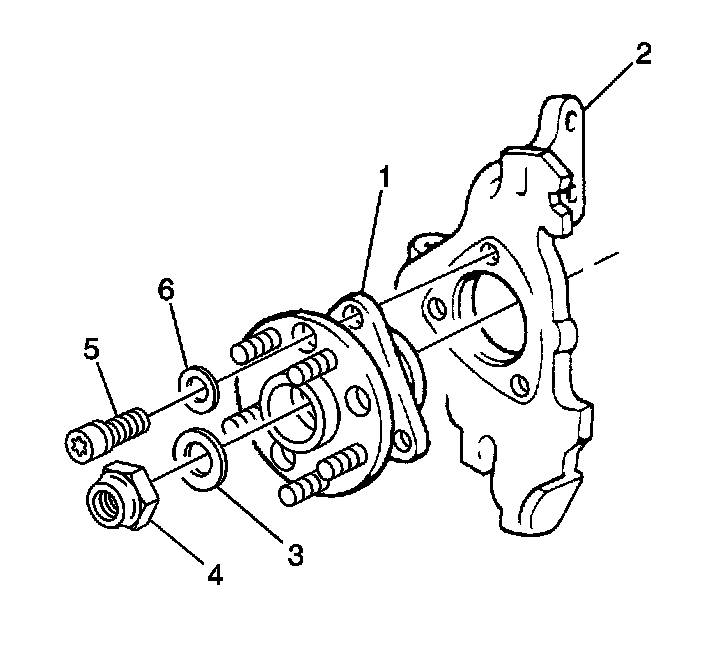

5. Remove the hub and bearing assembly bolts (5).
6. Remove the hub and bearing assembly (1) from the steering knuckle (2).
Installation Procedure
1. Install the hub and bearing assembly (1) to the steering knuckle (2).
2. Notice:
Refer to Fastener Notice in Service Precautions.
Install the hub and bearing assembly bolts (5).
^ Tighten the hub and bearing assembly bolts to 95 Nm (70 ft. lbs.).
3. Install the brake rotor.
4. Install the wheel drive shaft nut.
5. Install the tire and wheel assemblies.
6. Check the front wheel alignment.
