Steering Column Trim Covers
Steering Column Trim Covers ReplacementRemoval Procedure

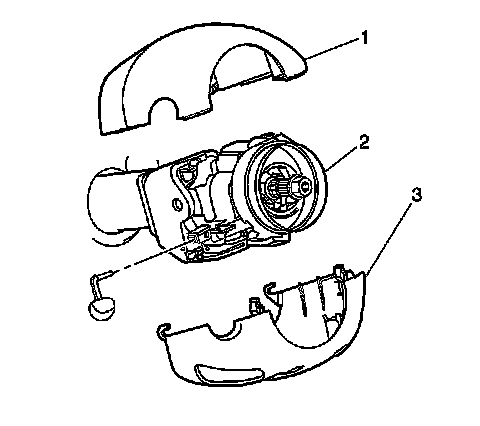

1. Remove the retaining screws from the lower steering column trim cover (3).
2. Remove the upper column trim cover (1) tilting up and unsnapping from the lower column trim cover hinges (3).
3. Remove the tilt lever.
4. Remove the lower column trim cover (3) from the steering column (2).
Installation Procedure
1. Install the lower column trim cover (3) to the steering column (2).
2. Install the tilt lever.
3. Install the upper column trim cover (1) to the steering column (2).
4. Notice:
Install the retaining screws to the lower steering column trim cover (3).
^ Tighten the screws to 2 Nm (18 inch lbs.).
