Front Floor Console Extension Replacement - Side

Front Floor Console Extension Replacement - Side

Removal Procedure





1. Remove the floor console. Refer to Front Floor Console Replacement Front Floor Console Replacement.

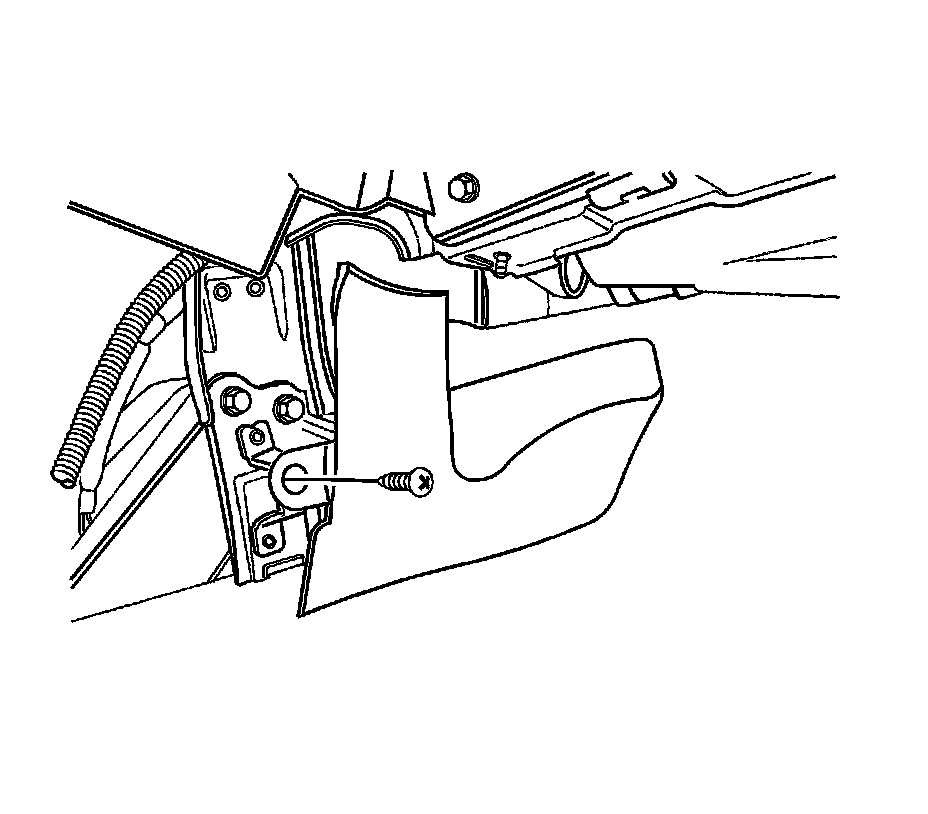

2. Remove the screw and the front console extension.

Installation Procedure





1. Install the front console extension with the screw.

2. Install the floor console. Refer to Front Floor Console Replacement Front Floor Console Replacement.
