Speedometer Head: Service and Repair

Speedometer Replacement

Removal Procedure





Caution:
Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

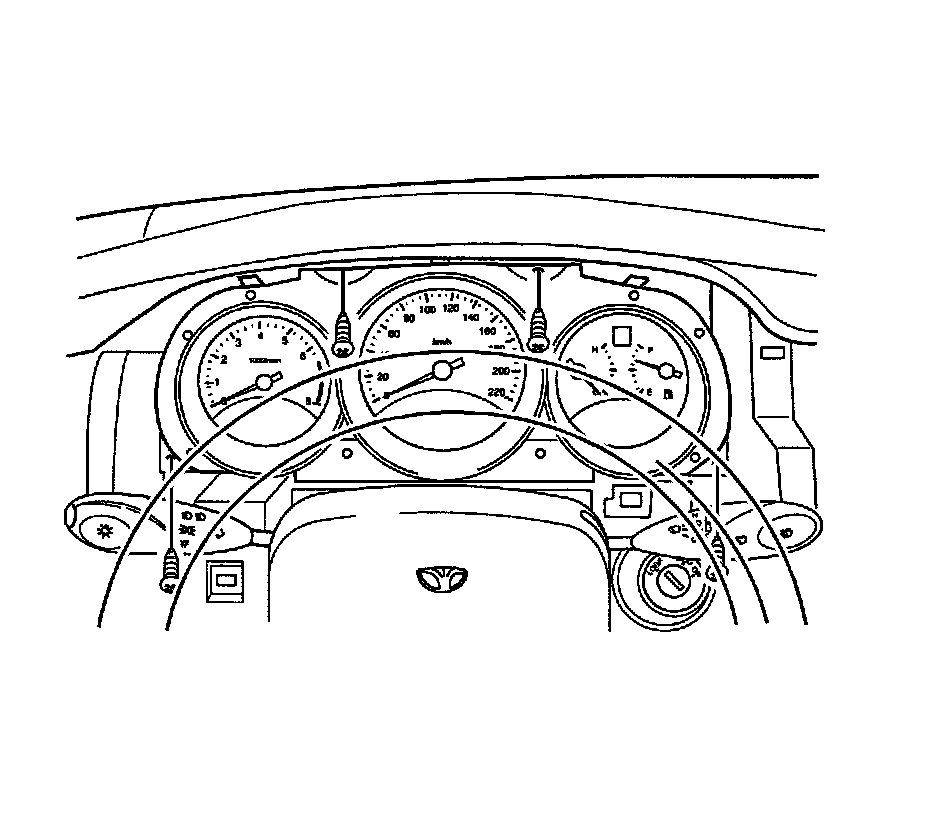

2. Remove the instrument cluster. Refer to Instrument Cluster Replacement Service and Repair.

3. Press the clips down and remove the instrument cluster lens.





4. Remove the screws and the instrument cluster case.

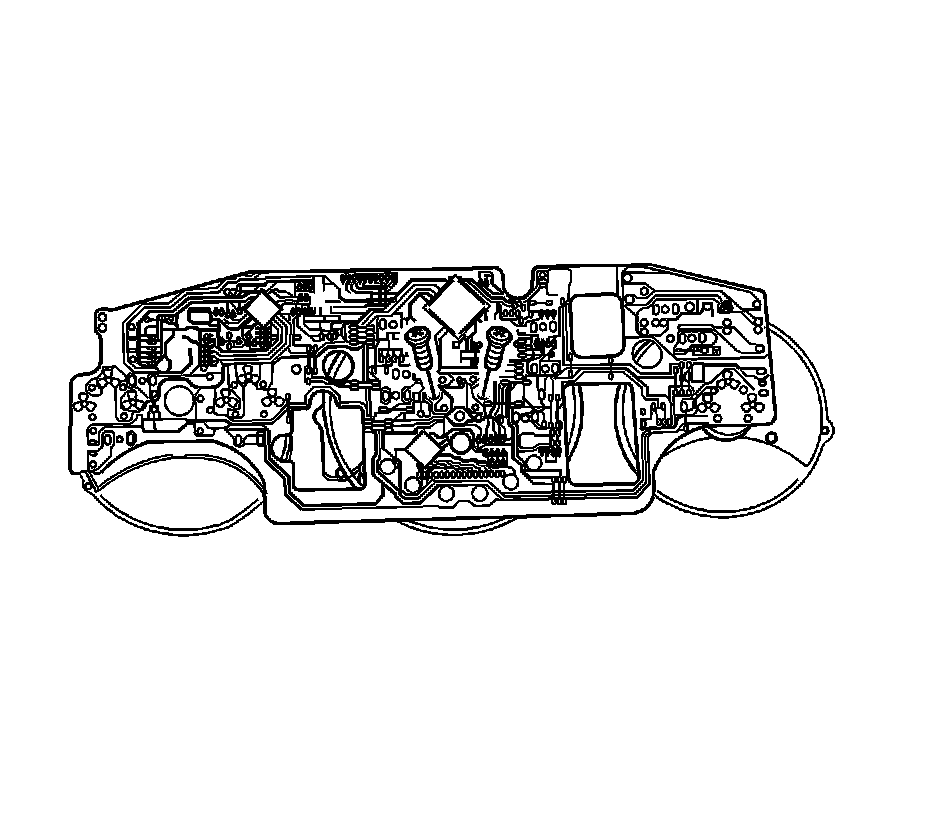

5. Remove the screws and the speedometer from the instrument cluster.

Installation Procedure





Notice:
Refer to Fastener Notice Fastener Notice.

1. Install the speedometer with the screws.

Tighten the speedometer screws to 2 Nm (18 lb in).

2. Install the instrument cluster case with the screws.

3. Install the instrument cluster lens.





4. Install the instrument cluster. Refer to Instrument Cluster Replacement Service and Repair.

5. Connect the negative battery cable.
