Horn: Locations

Horn Component Views

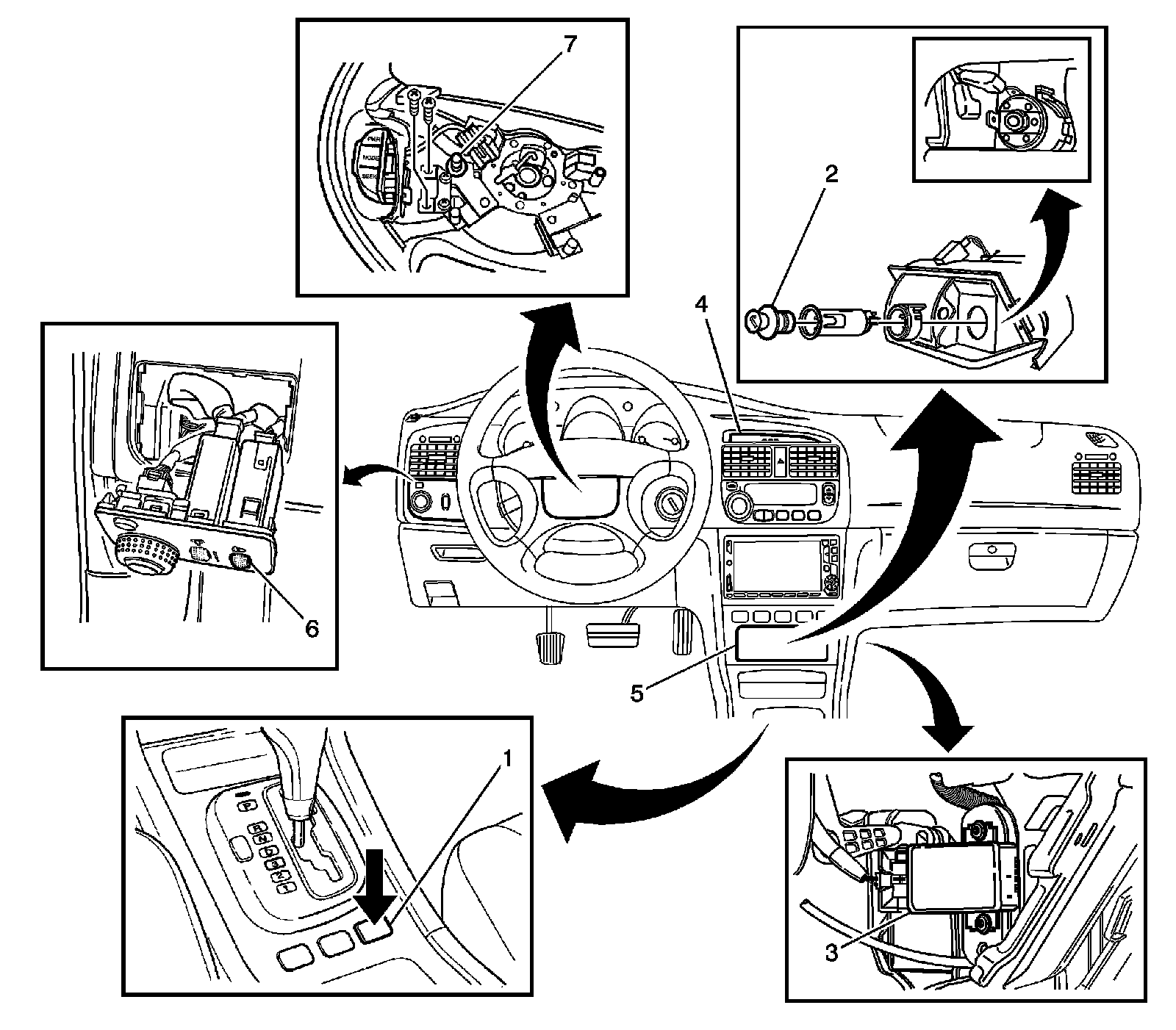

Horn Switch





1 - Shift Program Switch, Hold Mode Switch

2 - Cigar Lighter

3 - Daytime Running Lamp (DRL) Control Module

4 - Clock

5 - Auxiliary Power Outlet

6 - I/P Dimmer Switch/Headlamp Leveling Switch

7 - Horn Switch

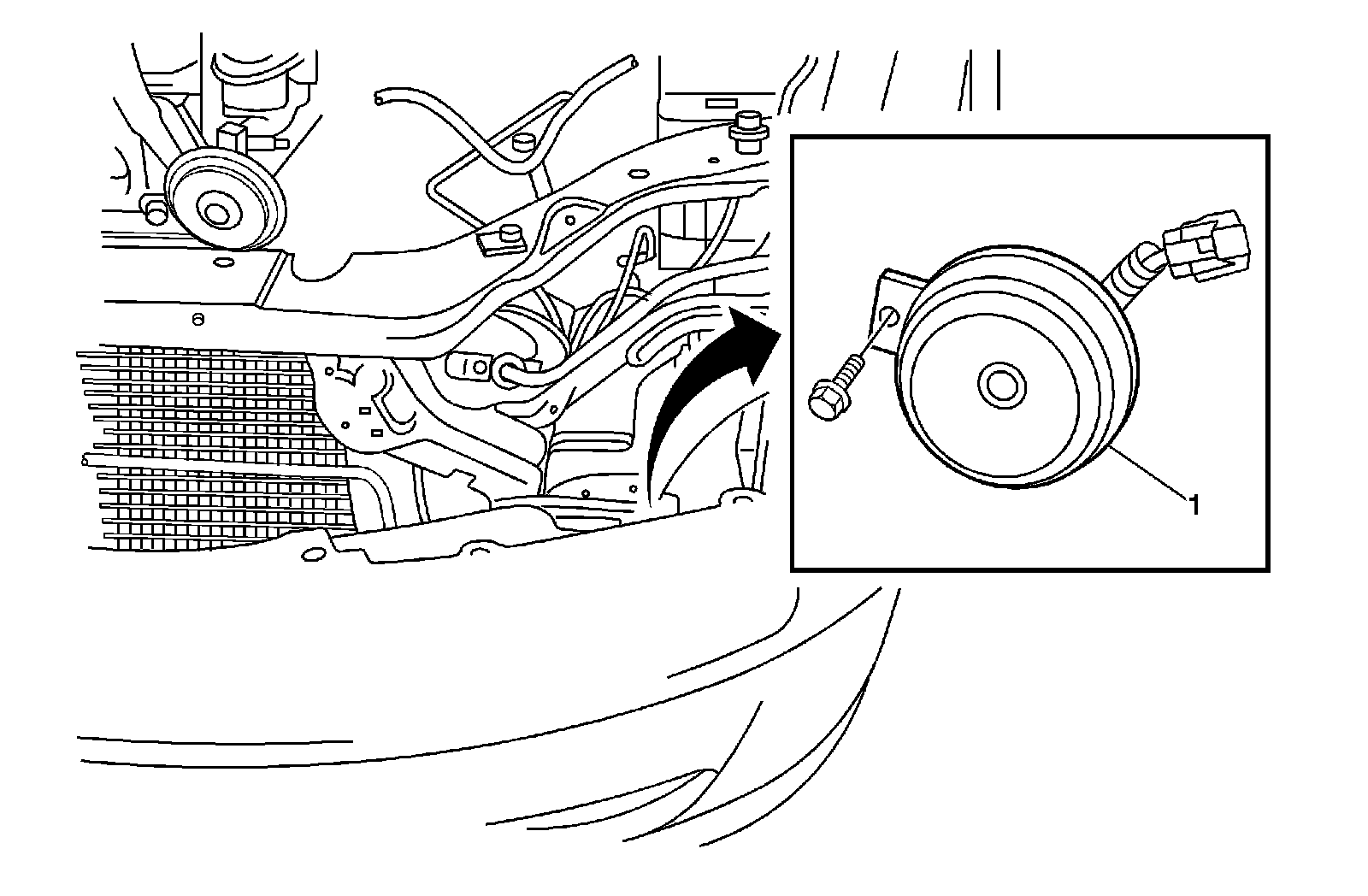

Horn





1 - Horn High and Low Note- Left Side Shown, Right Similar
