Suspension: Locations

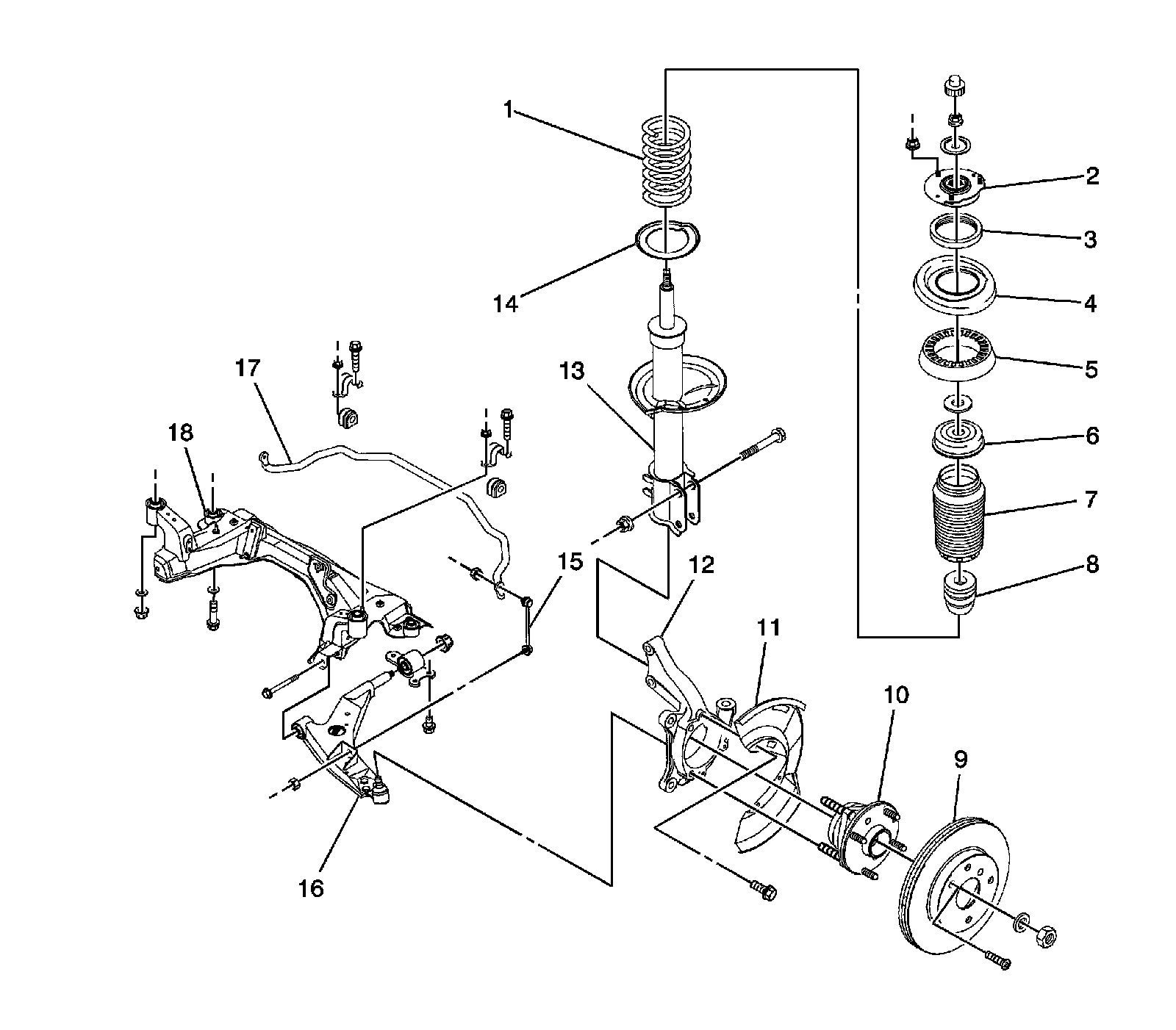

Front Suspension Components





1 - Coil Spring

2 - Strut Mount

3 - Mount Inner Bearing

4 - Spring Upper Seat

5 - Spring Upper Insulator

6 - Piston Rod Boot Seat

7 - Piston Rod Boot

8 - Hollow Bumper

9 - Front DISC

10 - Front Hub

11 - Brake Dust Cover

12 - Front Knuckle

13 - Front Strut

14 - Spring Lower Insulator

15 - Stabilizer Link

16 - Control Arm

17 - Stabilizer Bar

18 - Crossmember
