21. Differential Assembly Disassemble

Differential Assembly Disassemble





Caution:
Refer to Safety Glasses Caution Safety Glasses Caution.

1. Remove the torque converter housing. Refer to Converter Housing Removal 18. Converter Housing Removal.

Important:
To avoid incorrect operation, do not disassemble the differential.

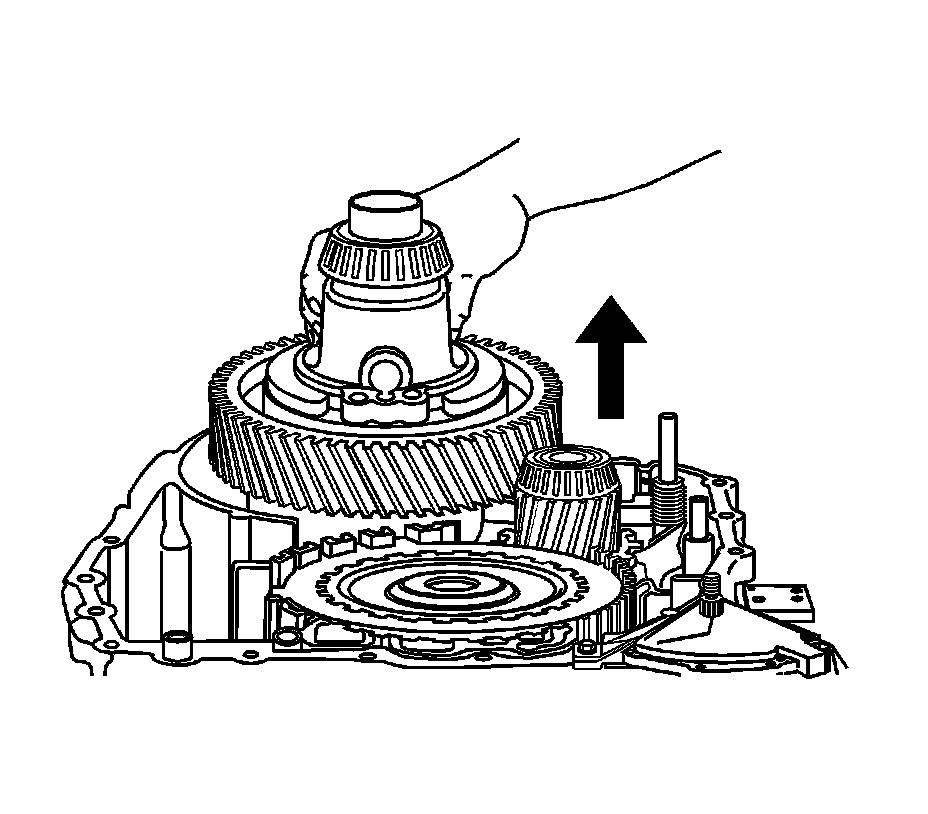

2. Lift out the differential.
