24. Control Valve Body Disassemble

Control Valve Body Disassemble





Caution:
Refer to Safety Glasses Caution Safety Glasses Caution.

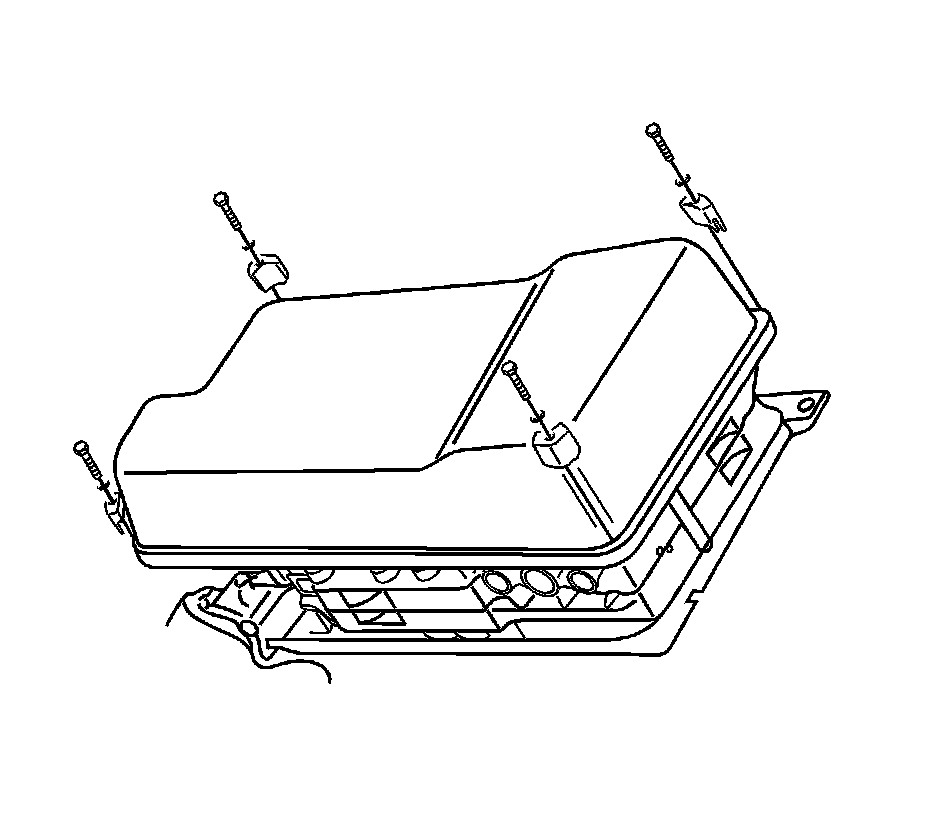

1. Remove the oil pan bolts and the oil pan.

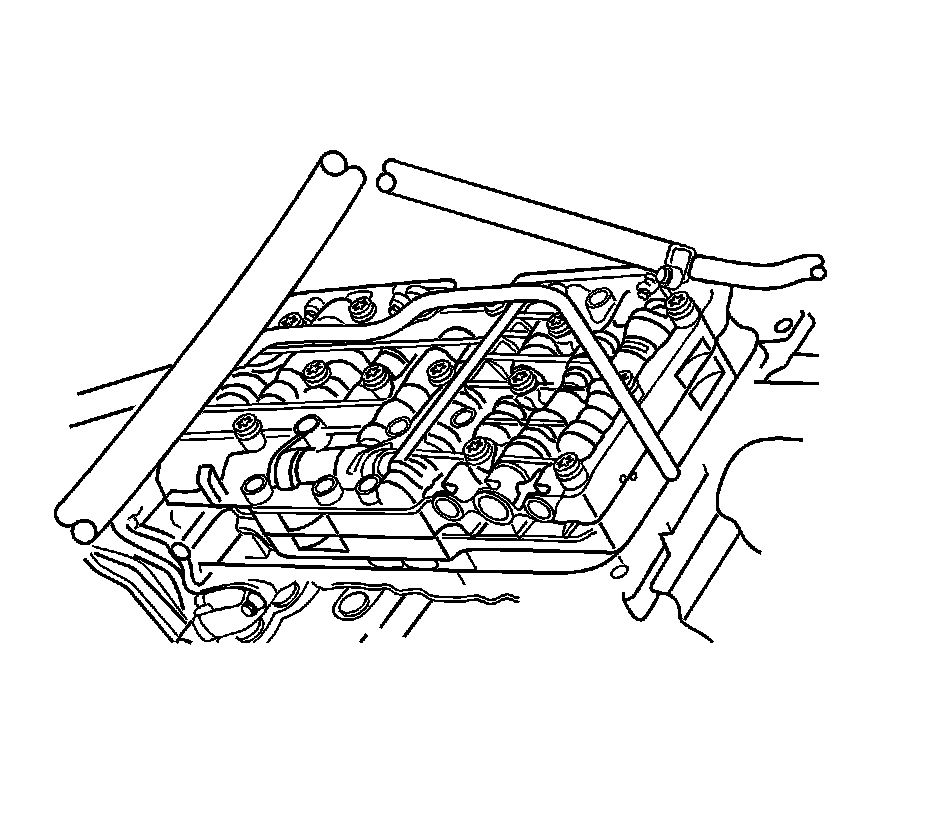

2. Remove the oil pan gasket.

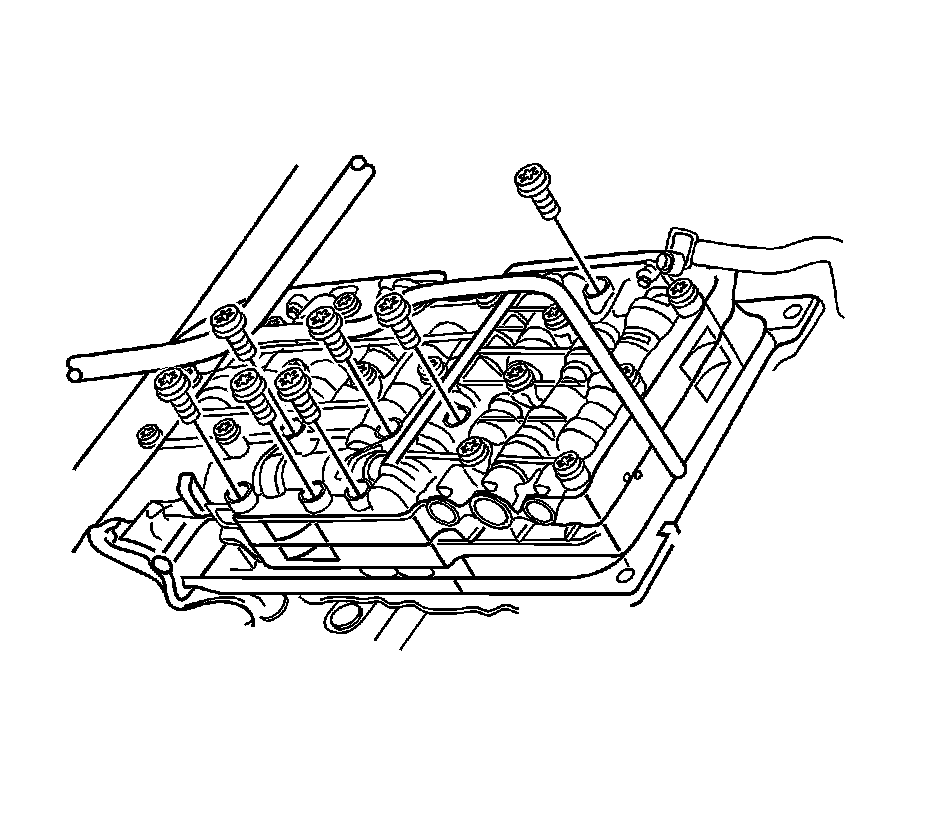

3. Remove valve body fixing bolts and transaxle input speed sensor bolt on the valve body.

4. Remove the holder for the transaxle input speed sensor.





5. Tilt the valve body.

6. Remove the fastening screw for the output speed sensor under the valve body assembly.

7. Pry the cable out of the retaining clip. Pull out the output speed sensor.
