6. Bearing Plate Assembly Installation

Bearing Plate Assembly Installation





Notice:
Refer to Fastener Notice Fastener Notice.

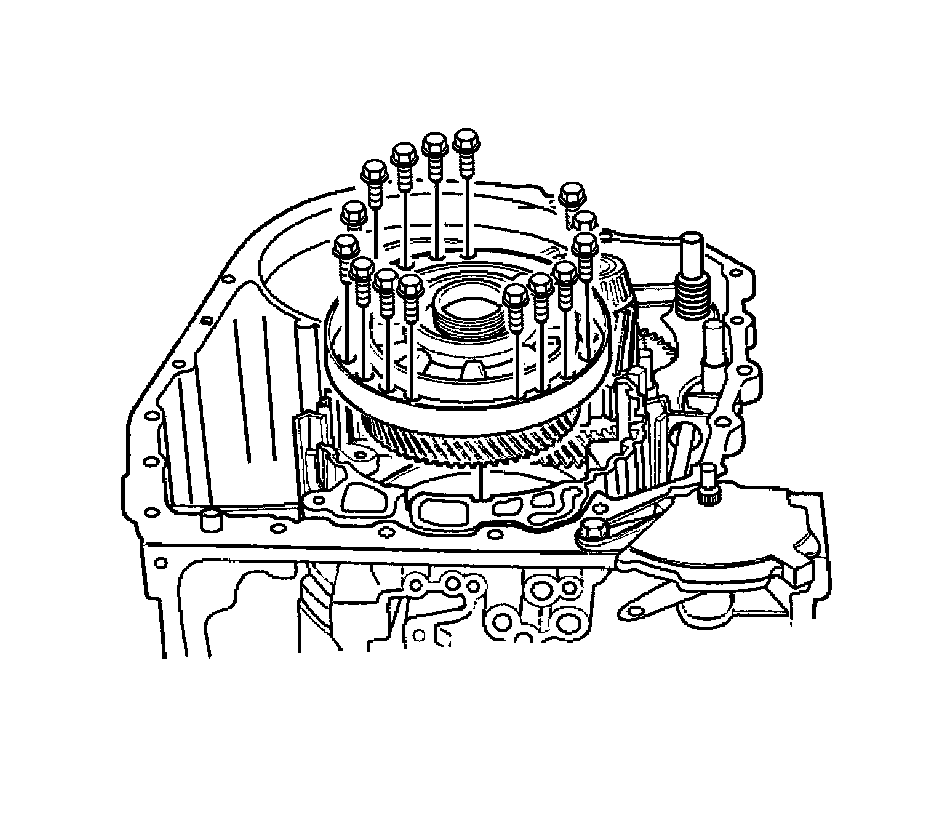

1. Install the bearing plate bolts and bearing plate.

Tighten the bearing plate bolts to 27 Nm (17 lb in).

2. Install the piston F. Refer to Brake F, Slotted Nut Installation 14. Brake F, Slotted Nut Installation.
