Home >> Chevrolet >> 2005 >> Malibu L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> LR (Sedan)

LR (Sedan)

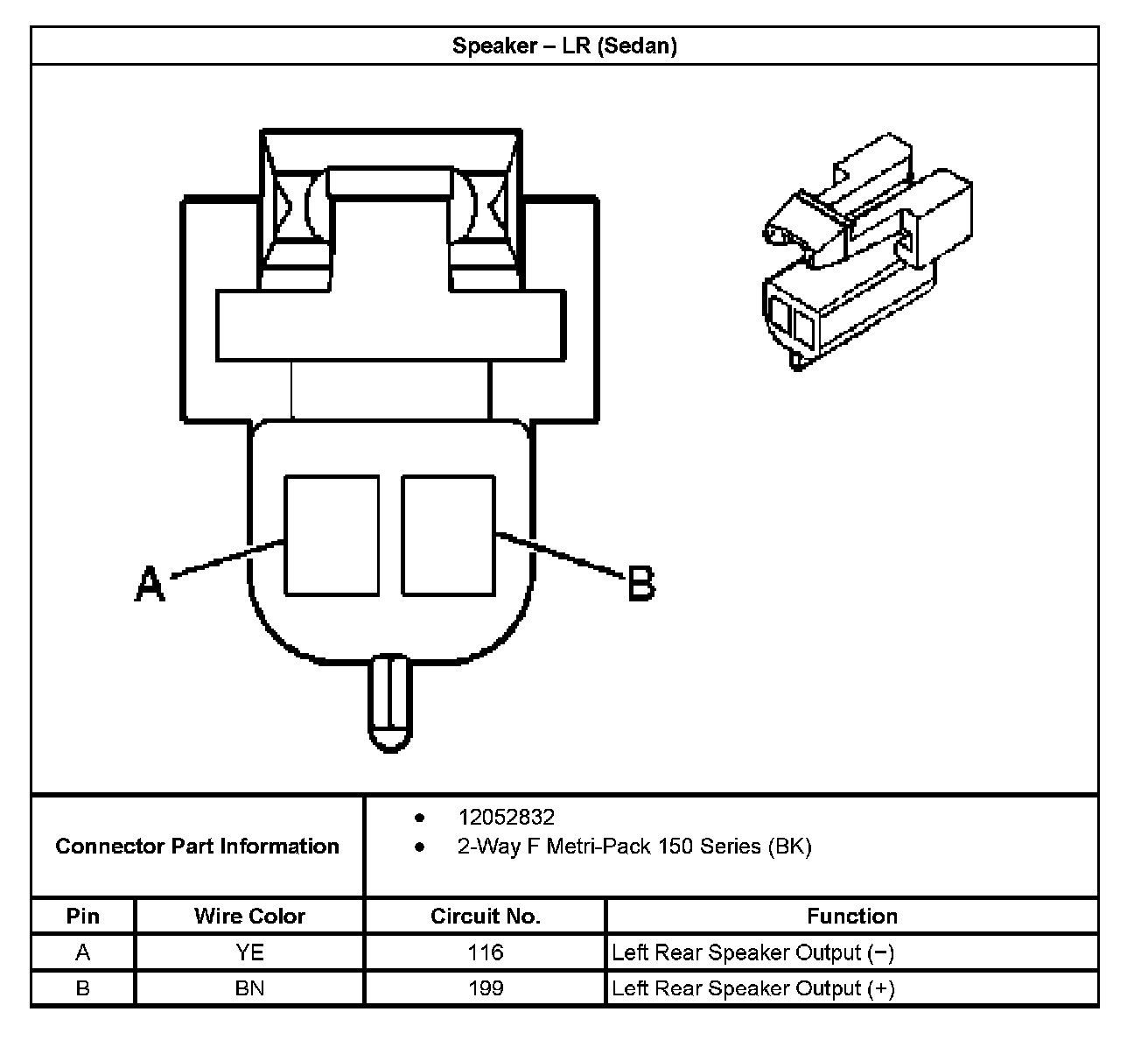

Speaker - LR (Sedan):
