Chevrolet
>>
2006
>>
Corvette V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Tail Lamp
>>
Tail/Stop Lamp
Tail/Stop Lamp

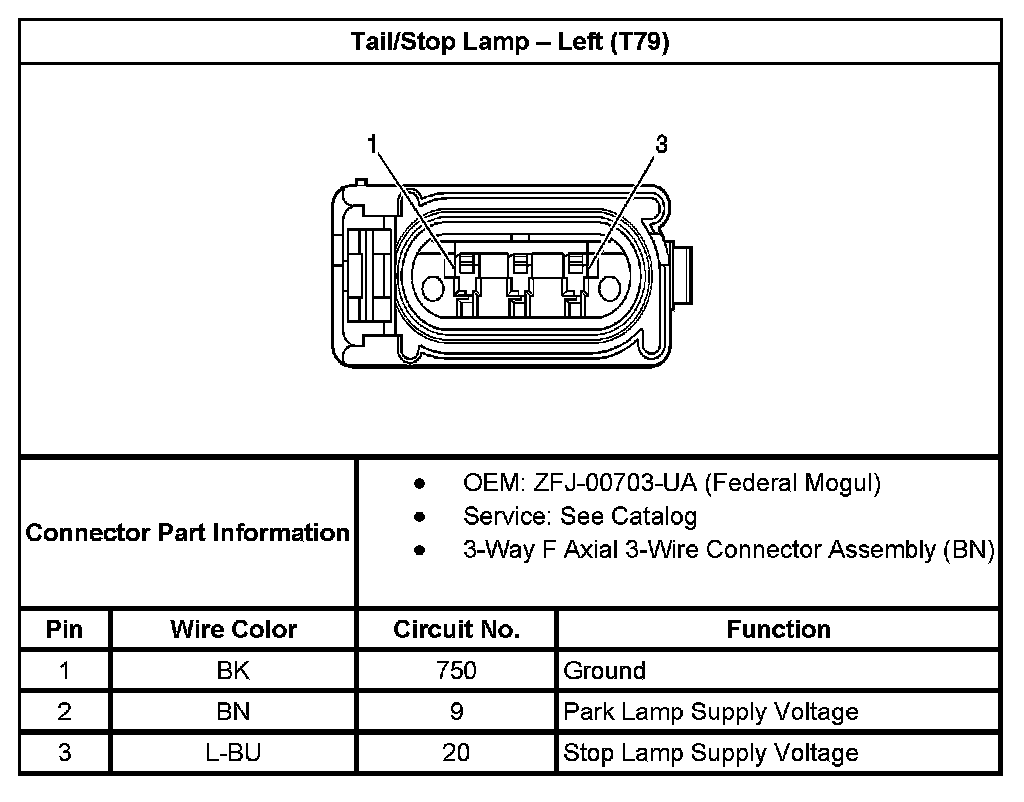

Tail/Stop Lamp - Left (With RPO Code T79):

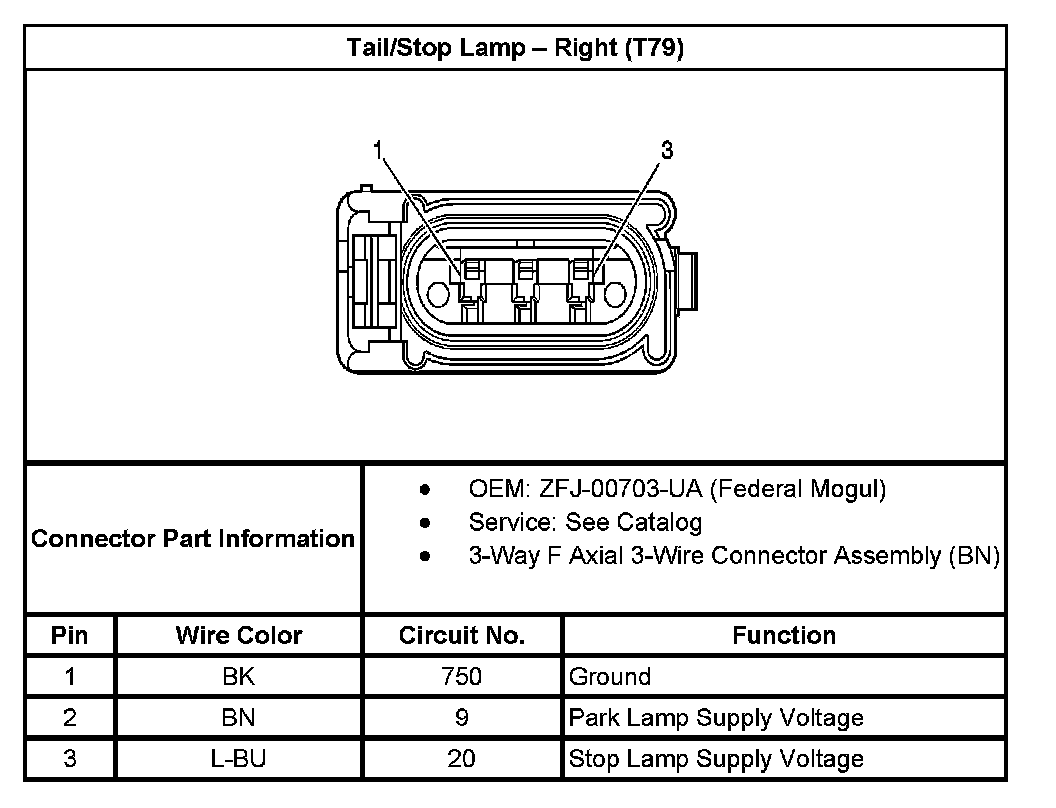

Tail/Stop Lamp - Right (With RPO Code T79):
