Fluid Pan: Specifications





Transmission Fluid Pan Bolt (QTY:18)

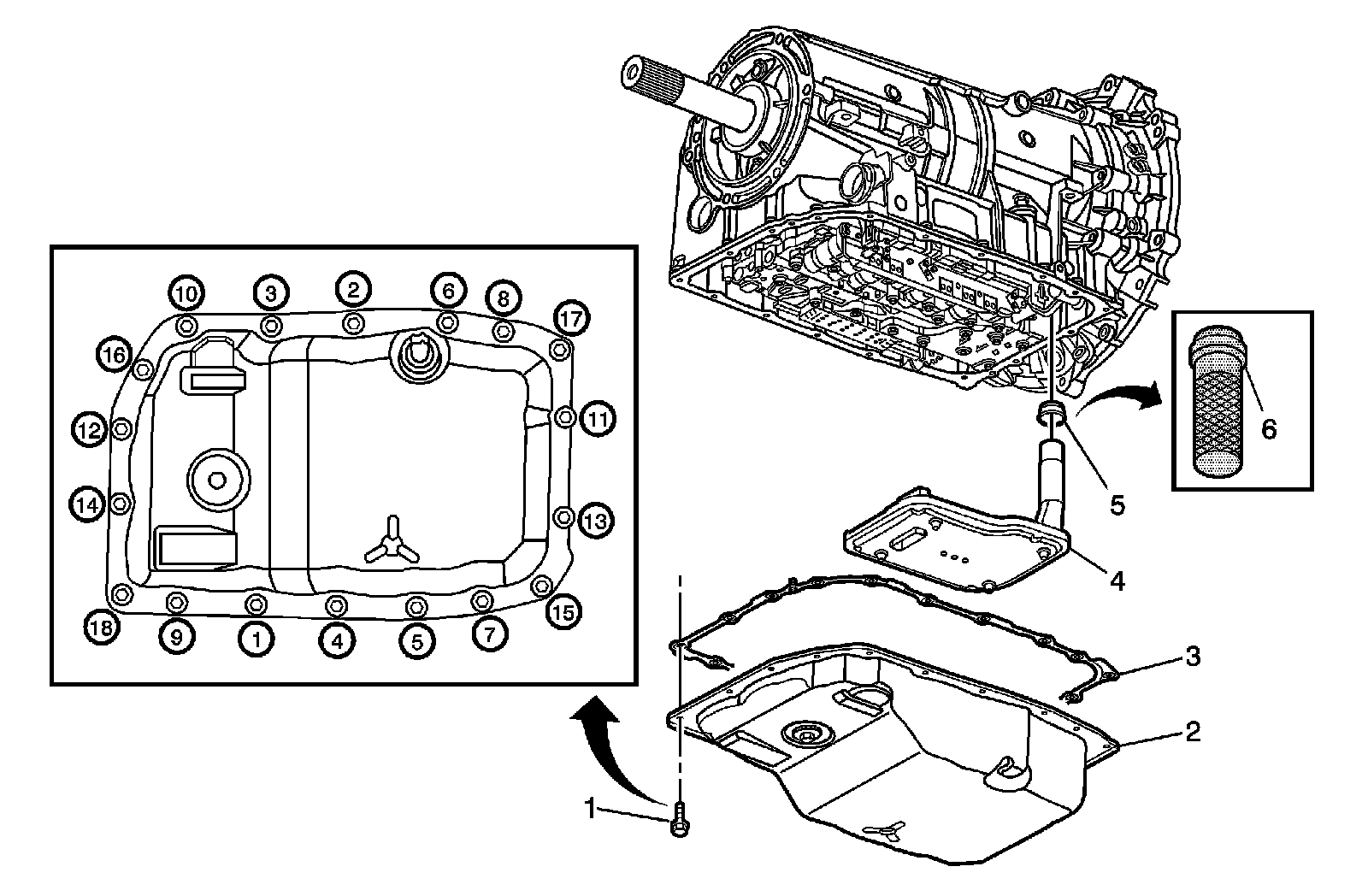

Tighten the bolts in the sequence shown 9 N.m (80 lb in)
