Steering Column

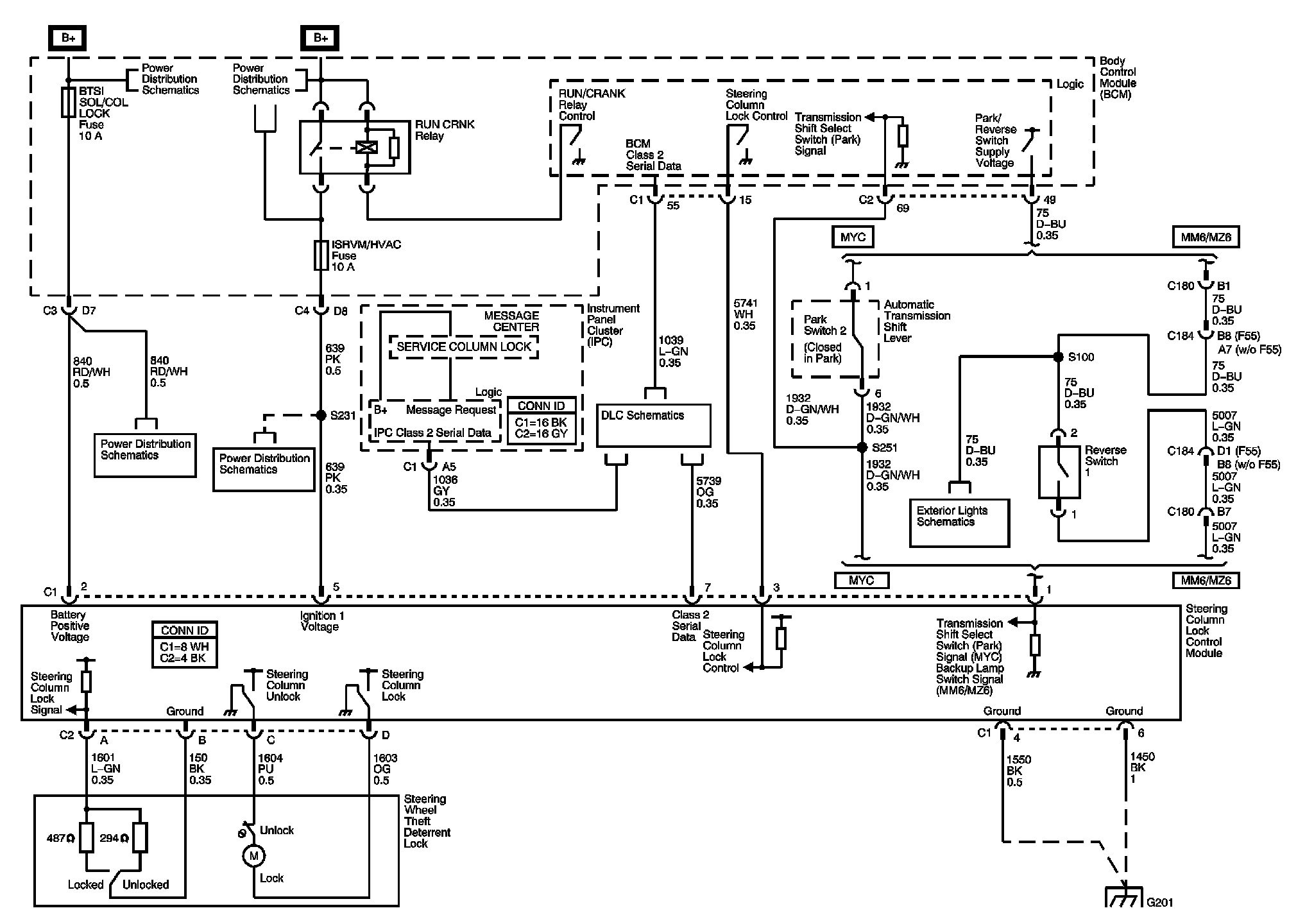

Steering Column Schematics (Part 1):

Column/Ignition Lock Schematics

Steering Column Schematics (Part 2):

Tilt/Telescoping Steering Column Schematics

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
