Cruise Control Switch: Service and Repair

Cruise Control Switch Replacement

Removal Procedure

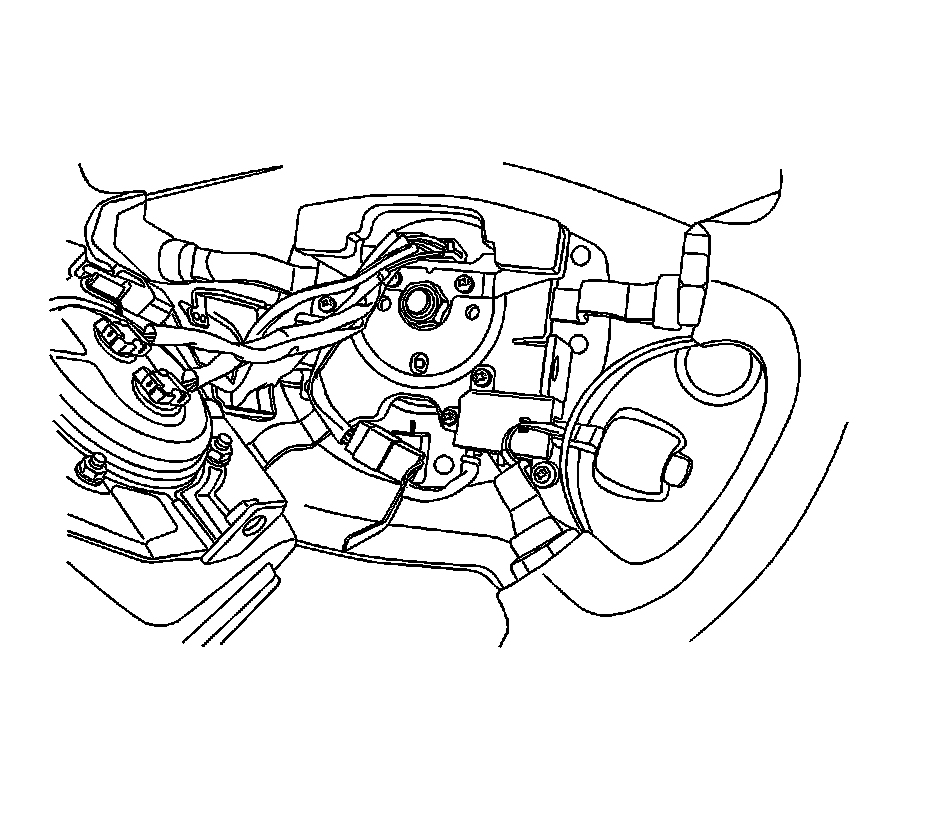

1. Remove the cruise control switch cover.
2. Remove the audio remote controller. Refer to Section 9F, Audio Systems.
3. Remove the SIR module. Refer to Section 8B, Supplemental Inflatable Restraints (SIR).
4. Remove the cruise control switch.

Installation Procedure

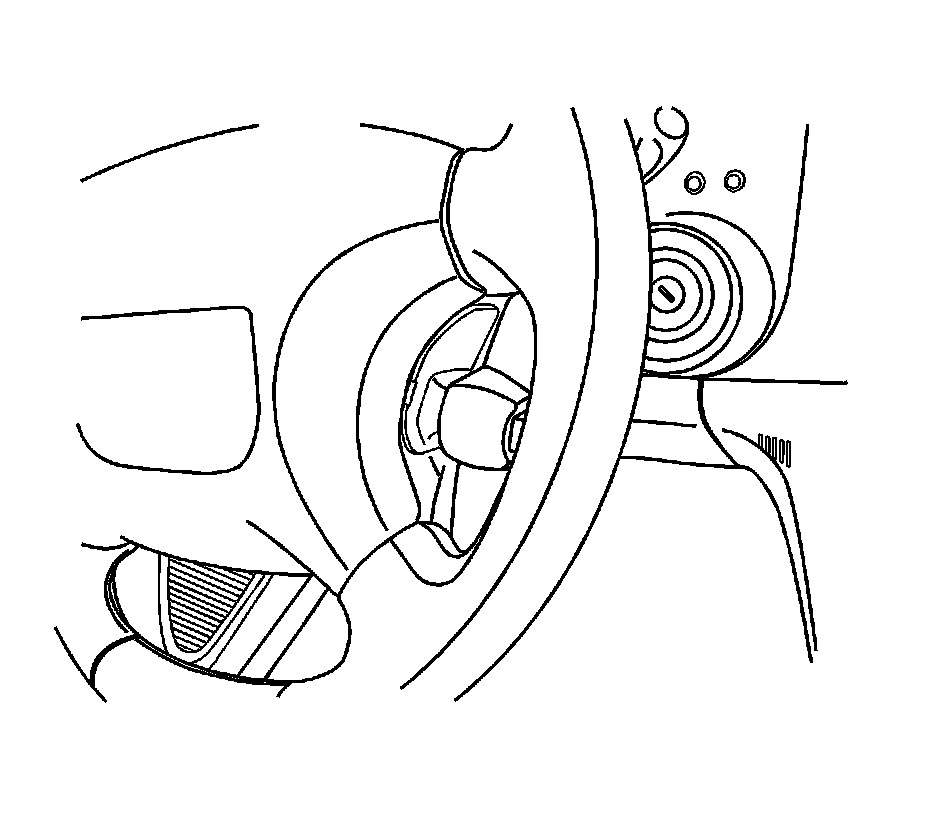

1. Install the cruise control switch.
2. Install the SIR module. Refer to Section 8B, Supplemental Inflatable Restraints (SIR).
3. Install the audio remote controller. Refer to Section 9F, Audio Systems.
4. Install the cruise control switch cover.
