HVAC Schematics




HVAC Schematics

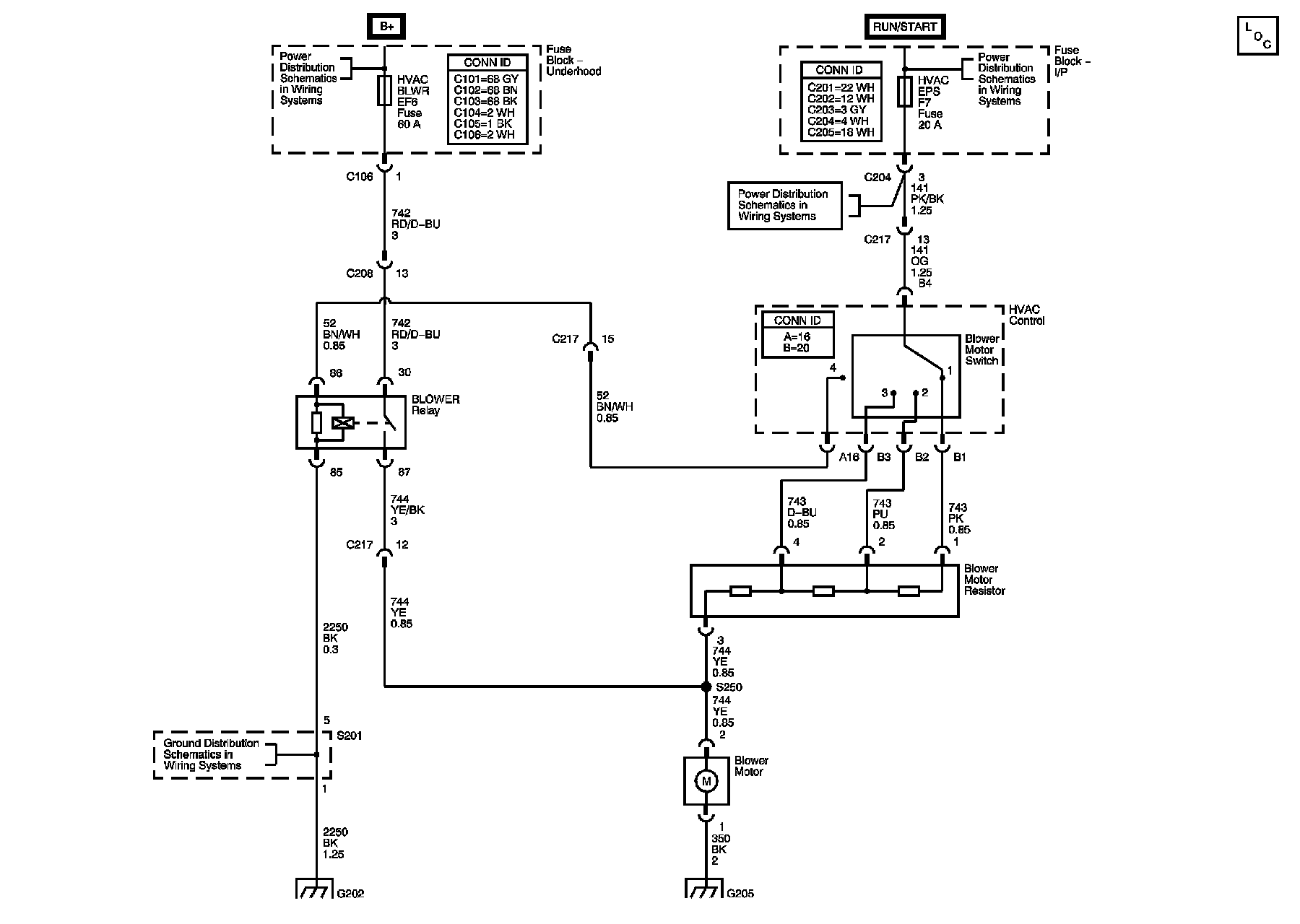

Blower Controls





Compressor Controls (2.5L Sirius D6)

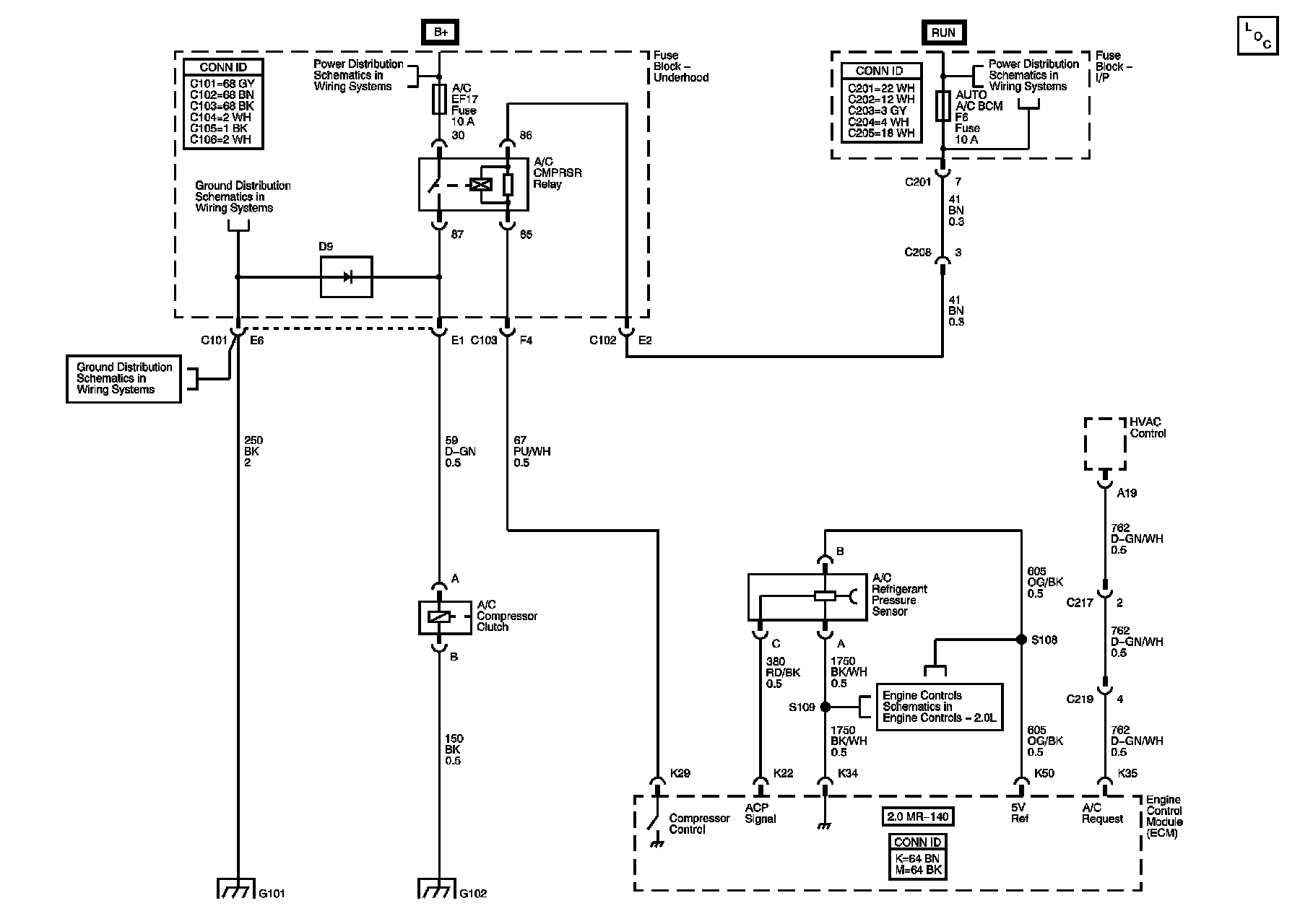

Compressor Controls (2.0L MR-140)

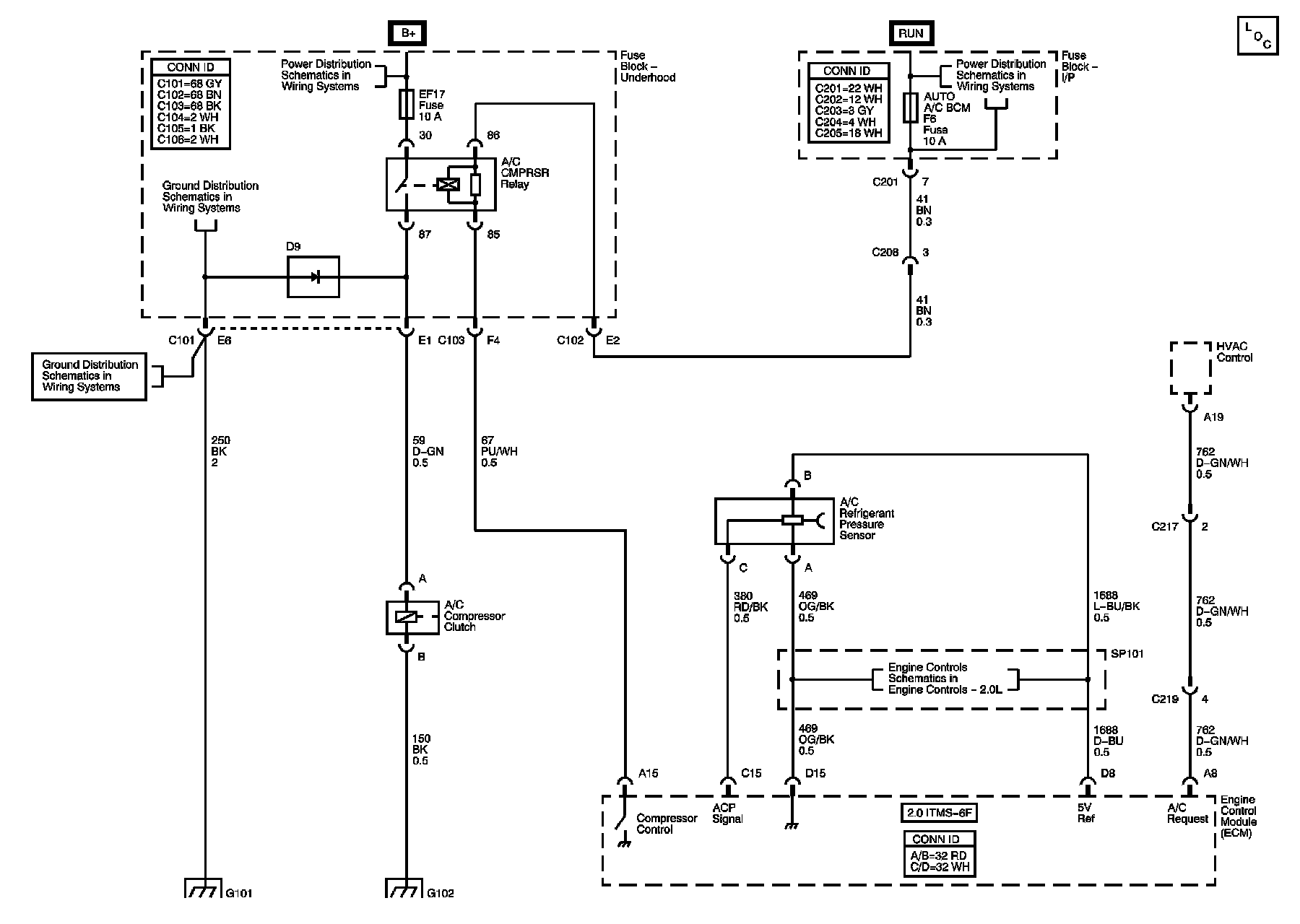

Compressor Controls (2.0L ITMS-6F)

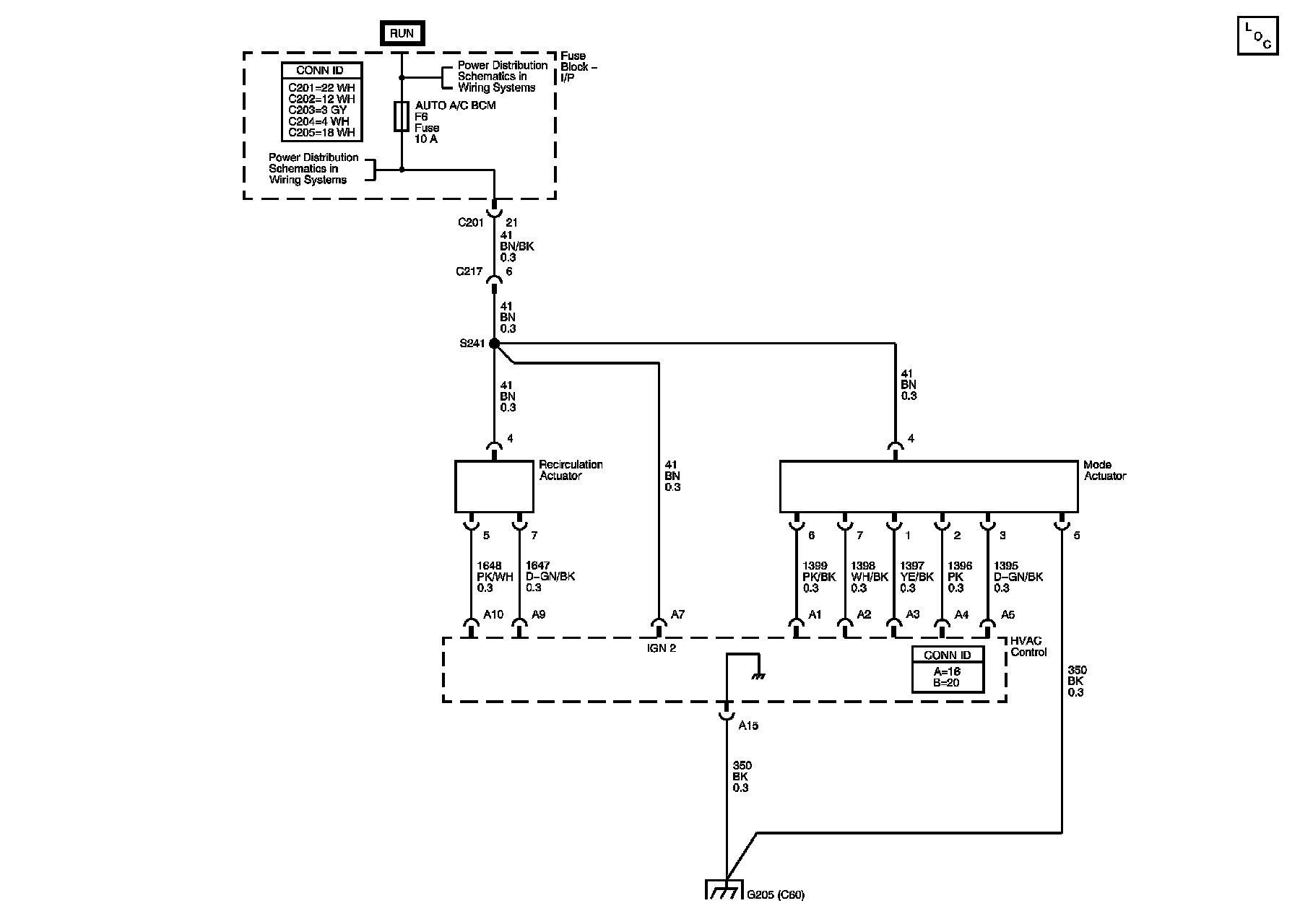

Air Delivery and Temperature Controls
