Fuse Block: Locations

Electrical Center Identification Views

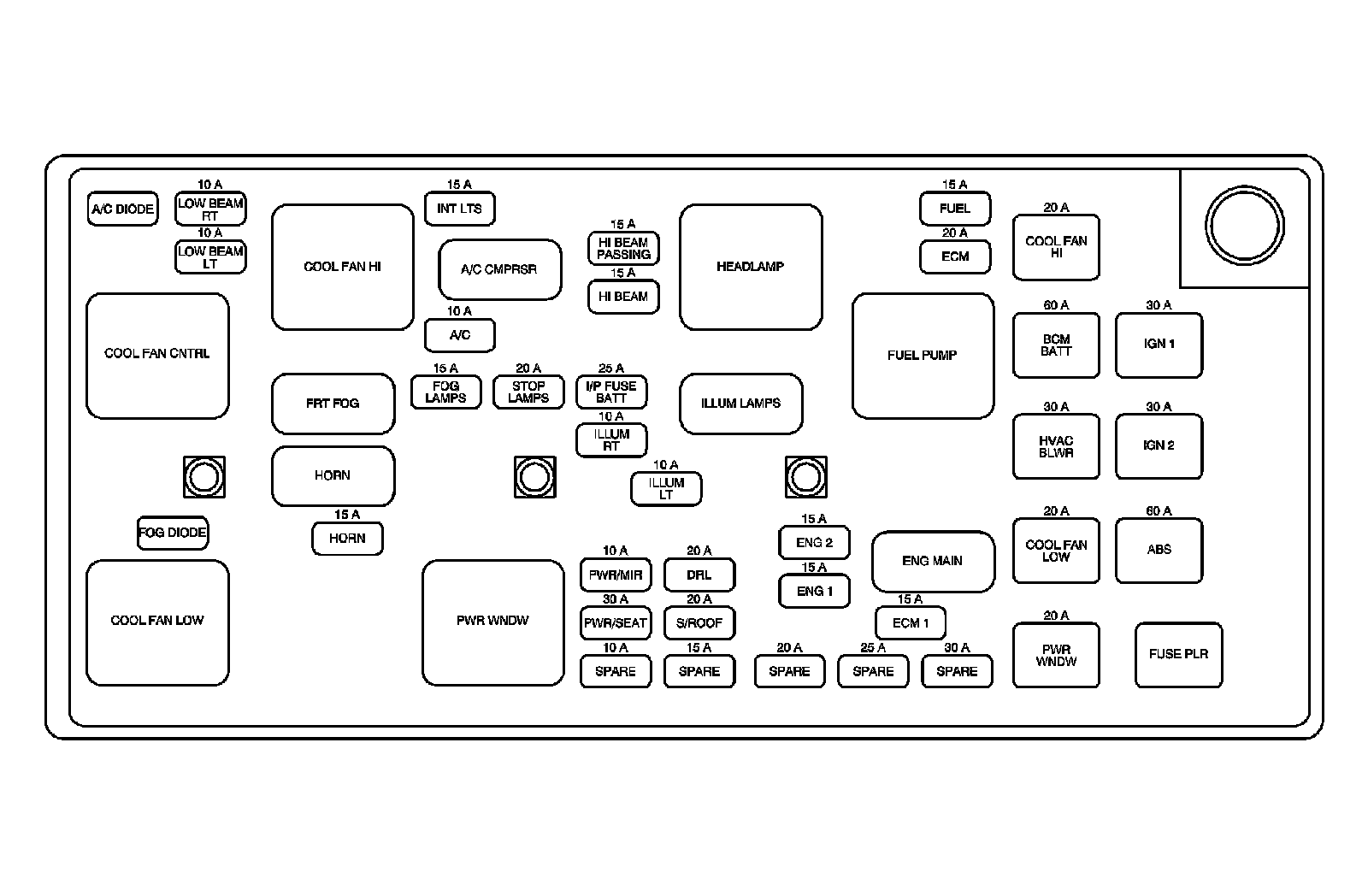

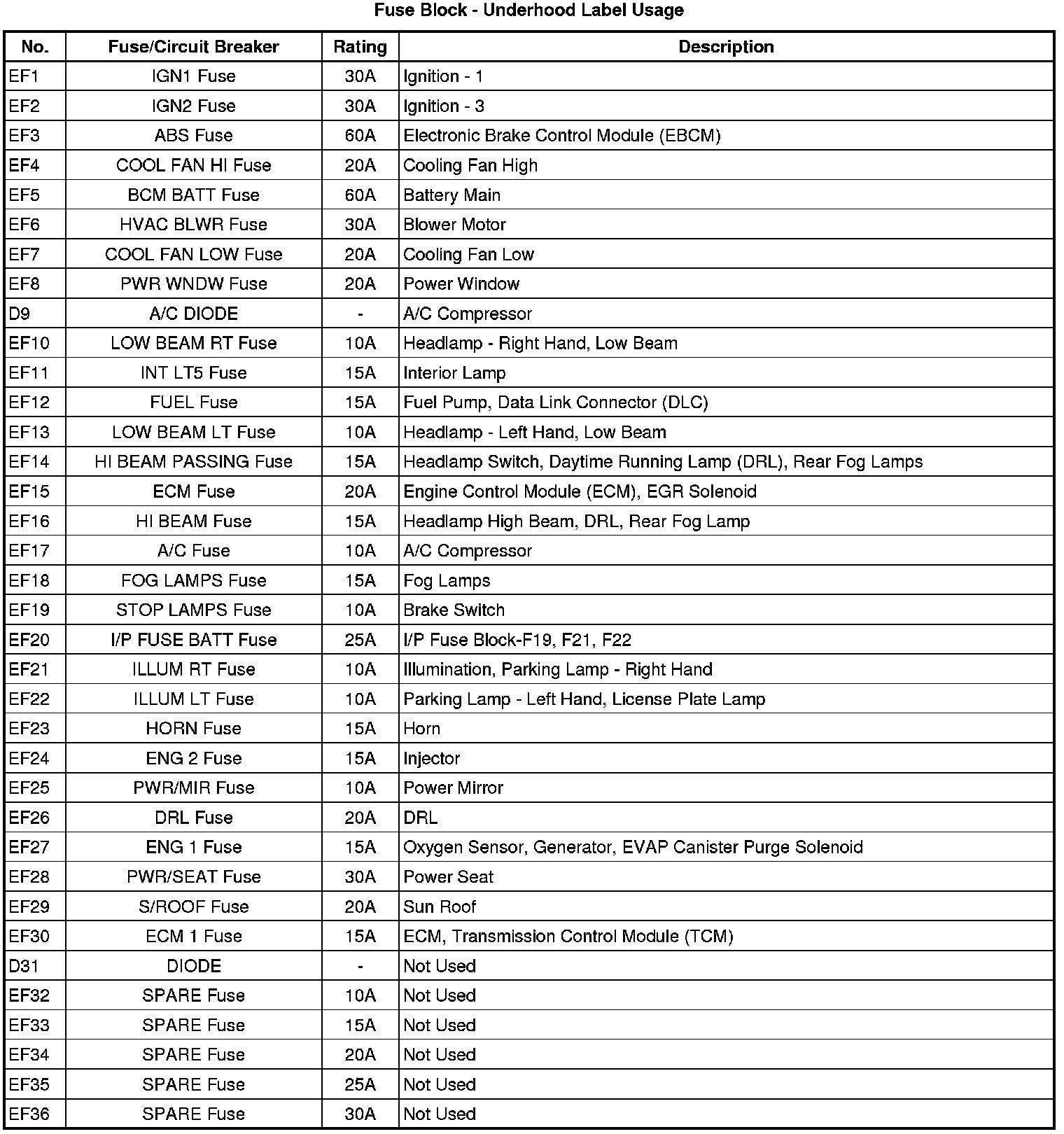

Fuse Block Underhood Label

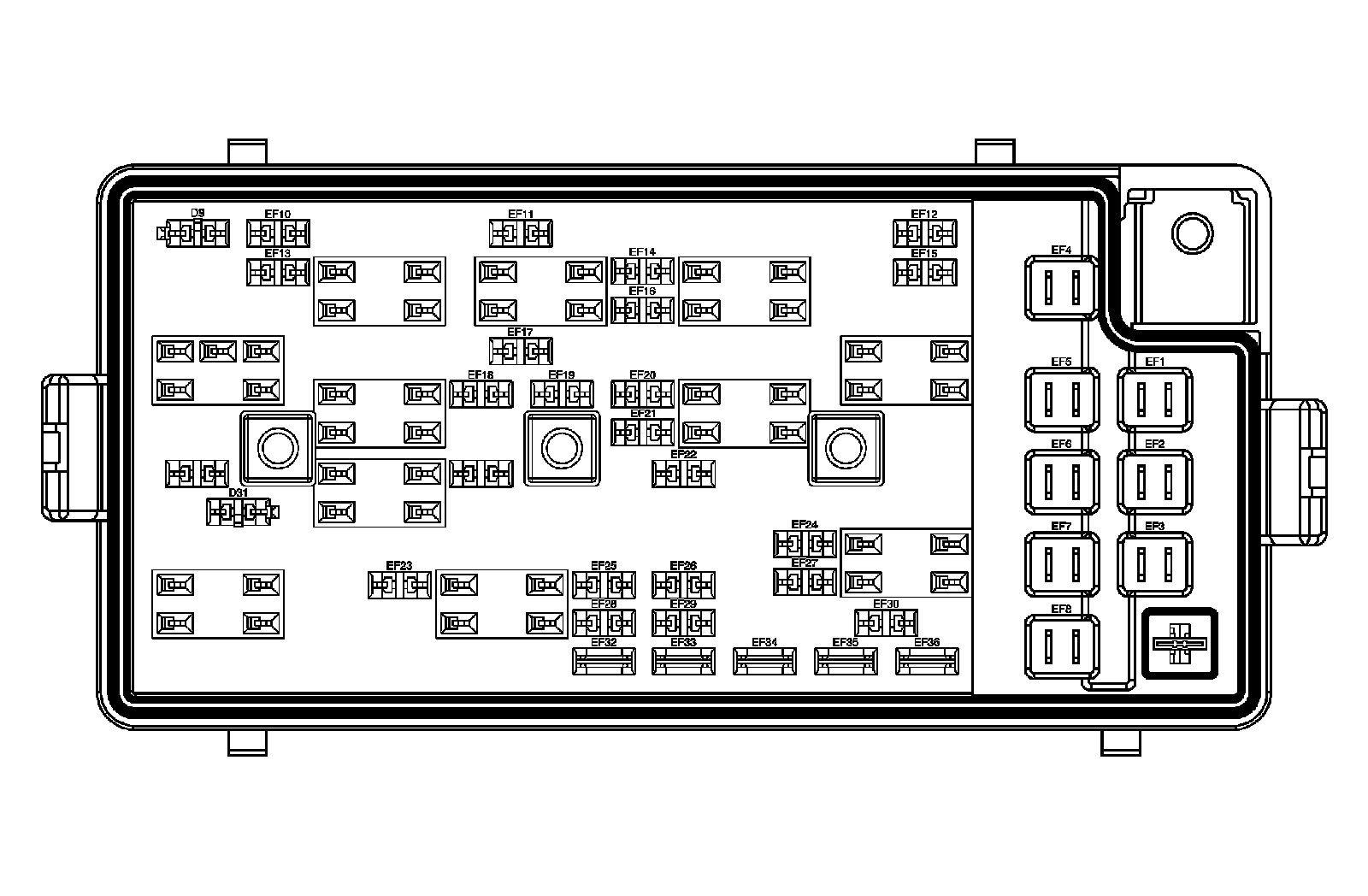

Fuse Block Underhood - Top View

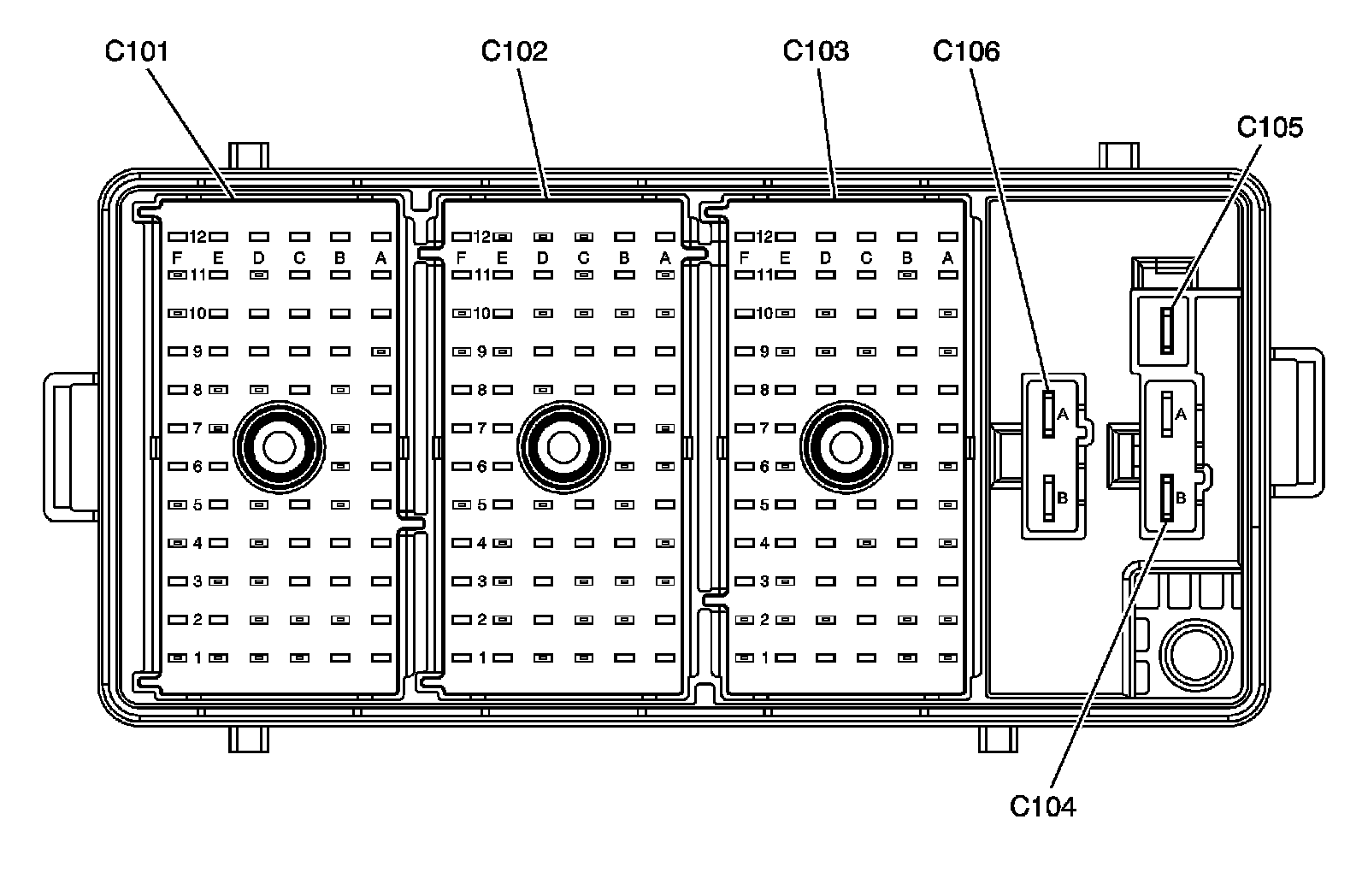

Fuse Block Underhood - Bottom View

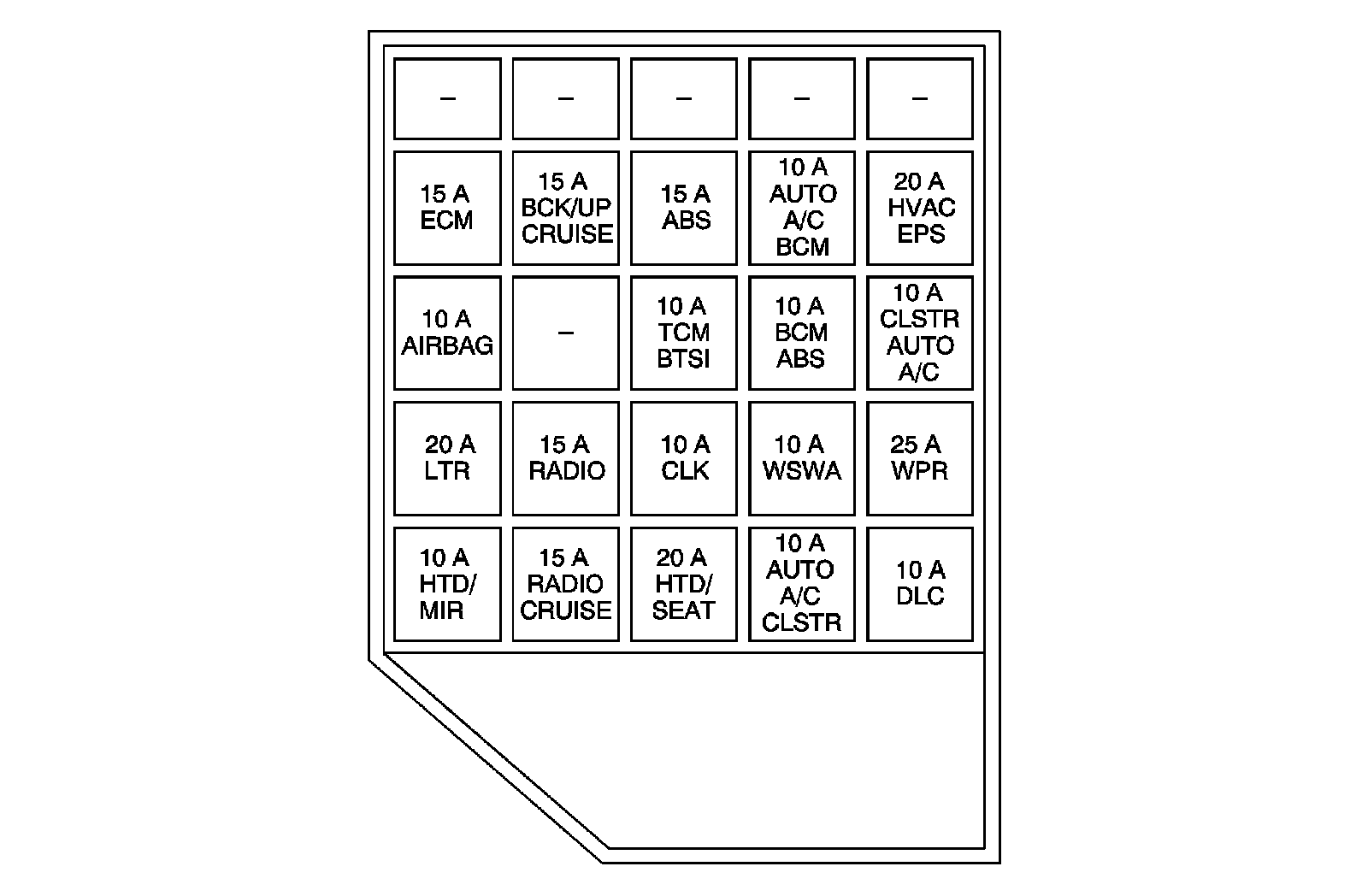

Fuse Block I/P Label

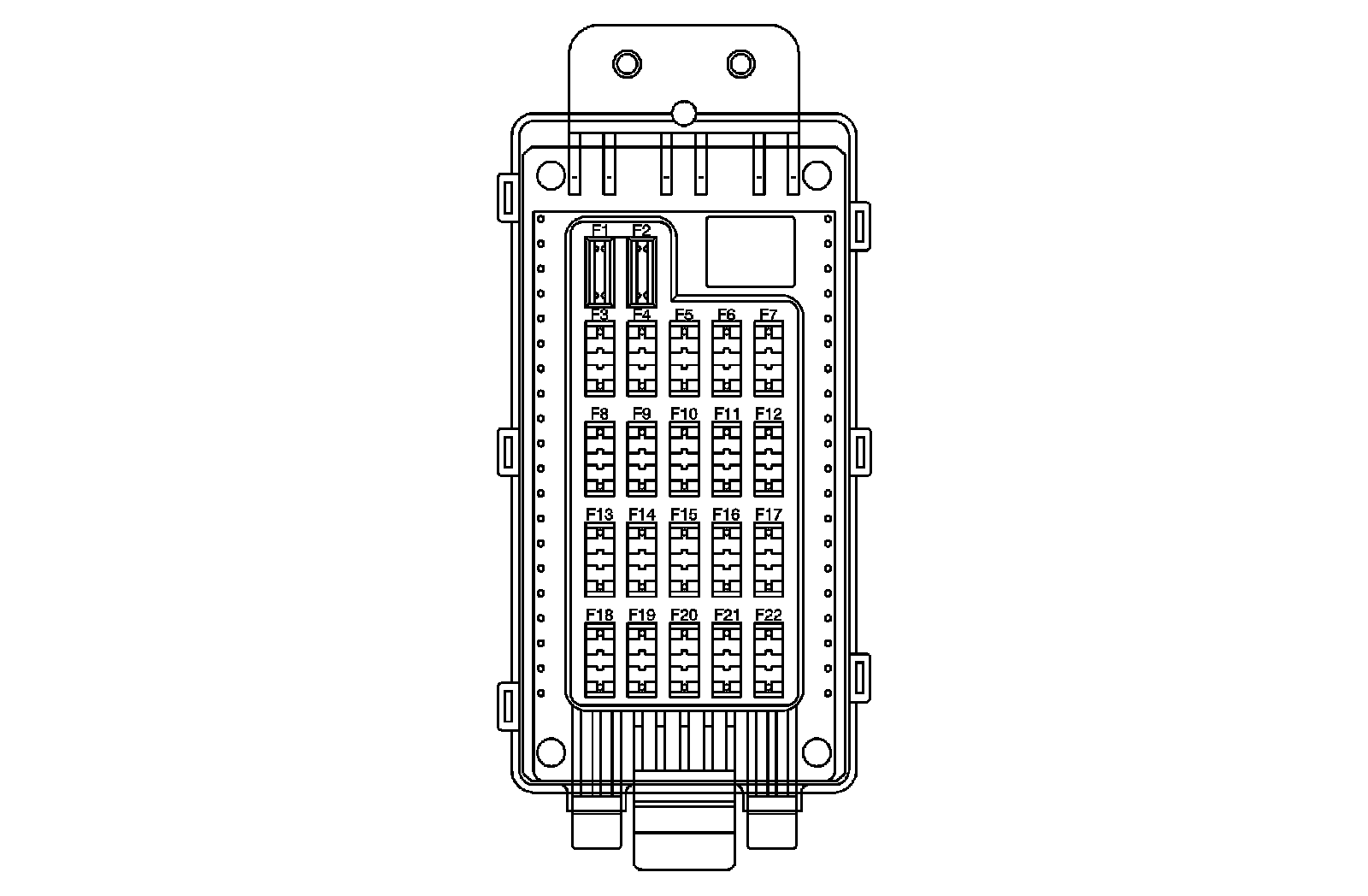

Fuse Block IP - Top View

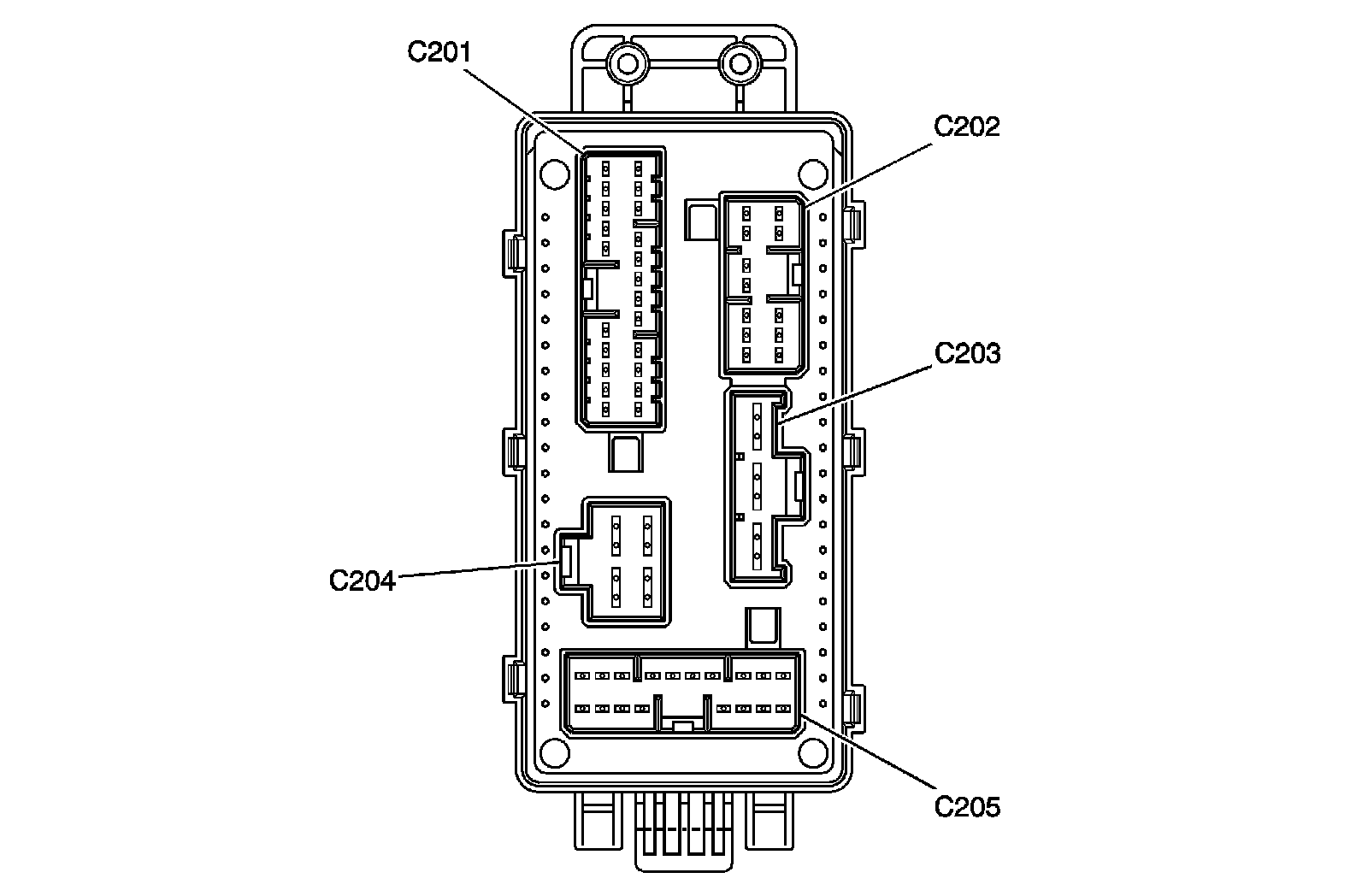

Fuse Block IP - Bottom View
