Armrest Replacement - Rear Seat

ARMREST REPLACEMENT - REAR SEAT

REMOVAL PROCEDURE
1. Remove the 60 percent rear seat.

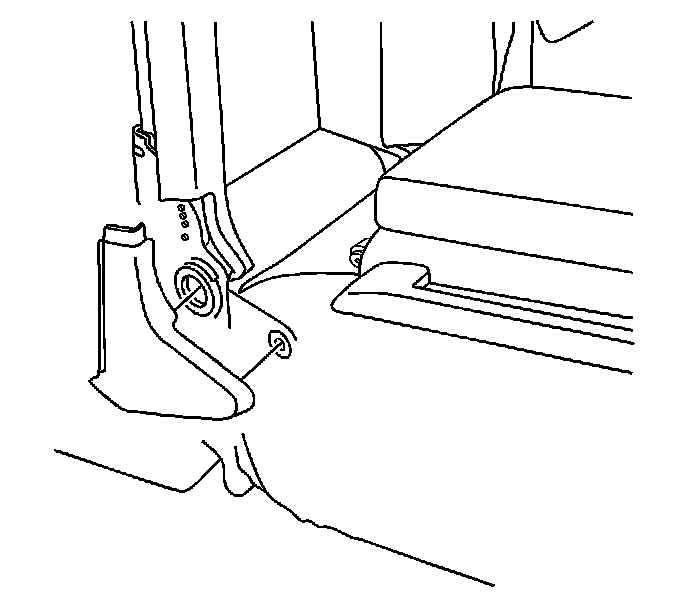

2. Remove the inboard side shield by pulling straight off.

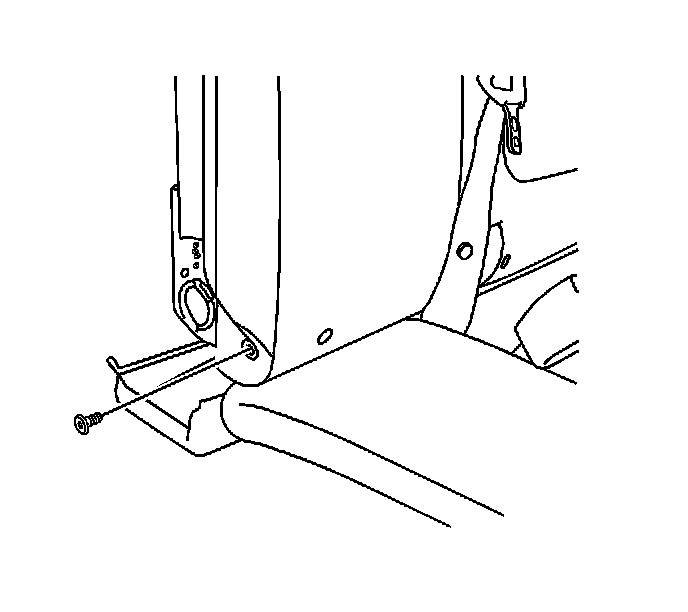

3. Remove the armrest fastener.
4. Remove the armrest from the seat assembly.

INSTALLATION PROCEDURE
1. Install the armrest to the seat assembly.




2. Install the armrest fastener.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the fastener to 5 N.m (44 lb in).




3. Install the inboard side shield.
4. Install the 60 percent rear seat.
