Automatic Transaxle - 4T65-E

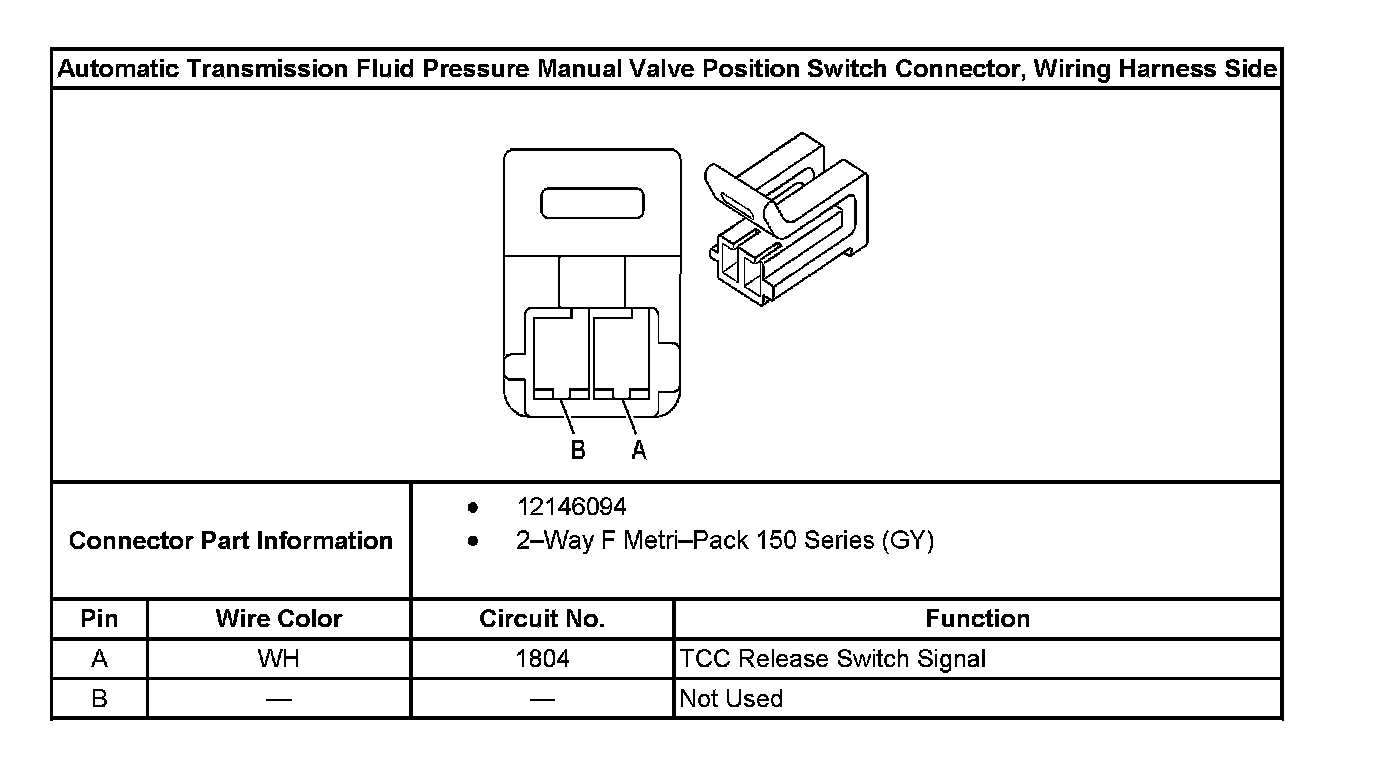

Automatic Transmission Fluid Pressure Manual Valve Position Switch Connector, Wiring Harness Side:
