Air Door Cable: Service and Repair

Mode Control Cable Replacement

Removal Procedure






Caution: Refer to Battery Disconnect Caution.

1. Disconnect the negative battery cable.

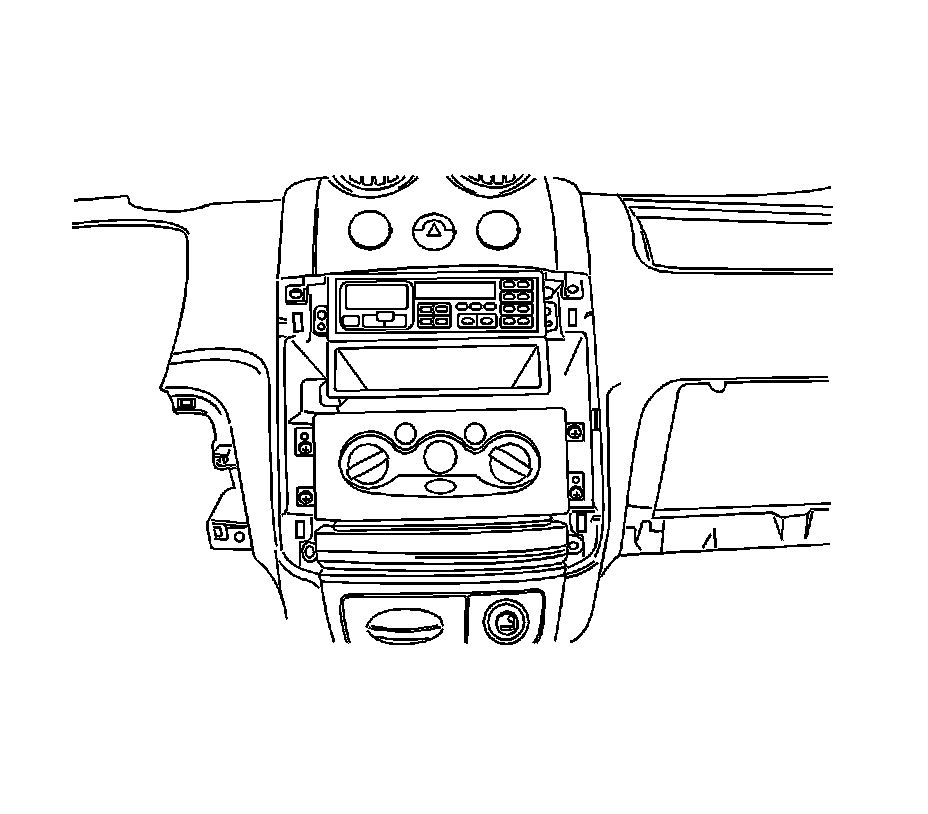

2. Remove the audio system.

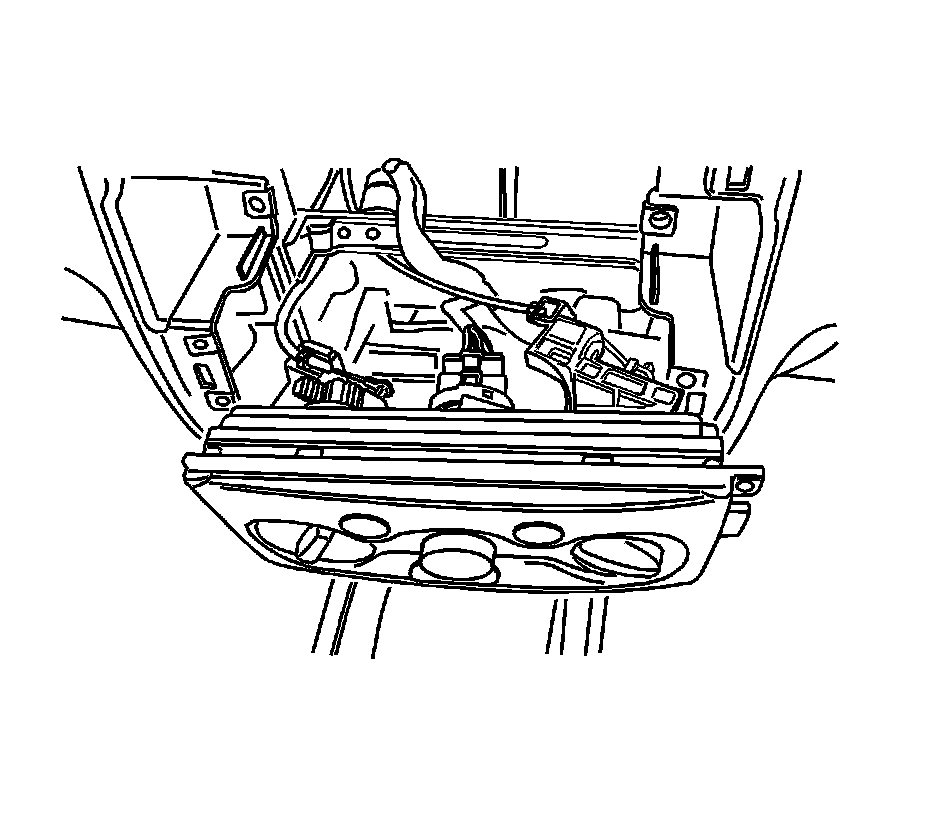

3. Remove the HVAC controller.

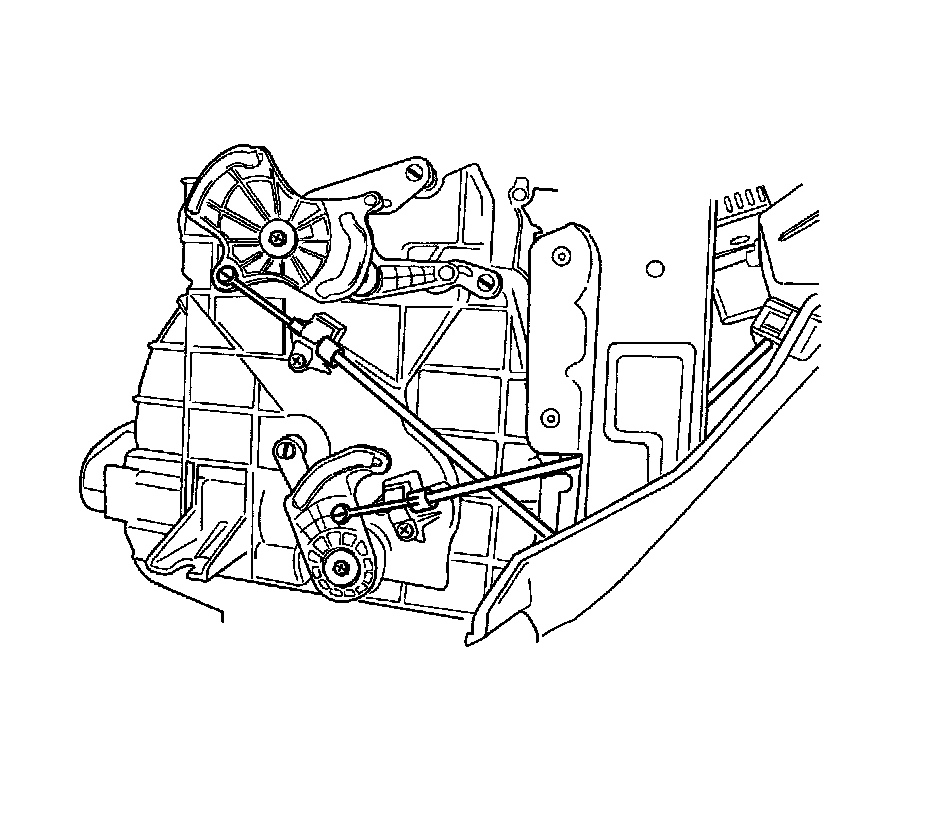

4. Disconnect the heater/defrost cable eyelet from the post.

Installation Procedure




1. Connect the vehicle heater/defrost cable eyelet to the post and the cable housing to the slide.




2. Install the HVAC controller.
3. Install the audio system.
4. Install the dash end panel.
5. Connect the negative battery cable.
6. Operate the heating/cooling systems to verify proper function.
