Control Module HVAC
Control Module HVAC
Component Connector End Views

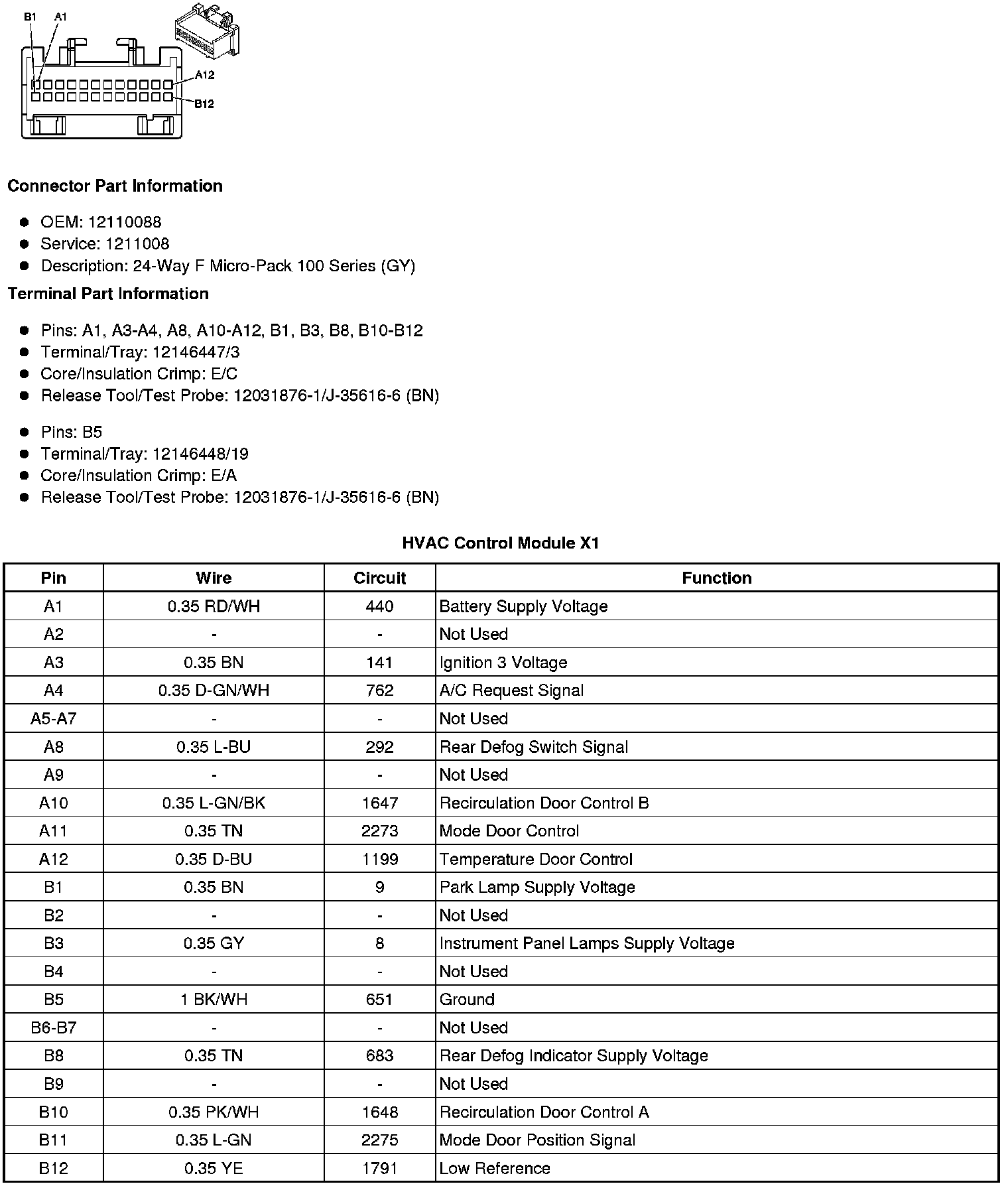

HVAC Control Module X1

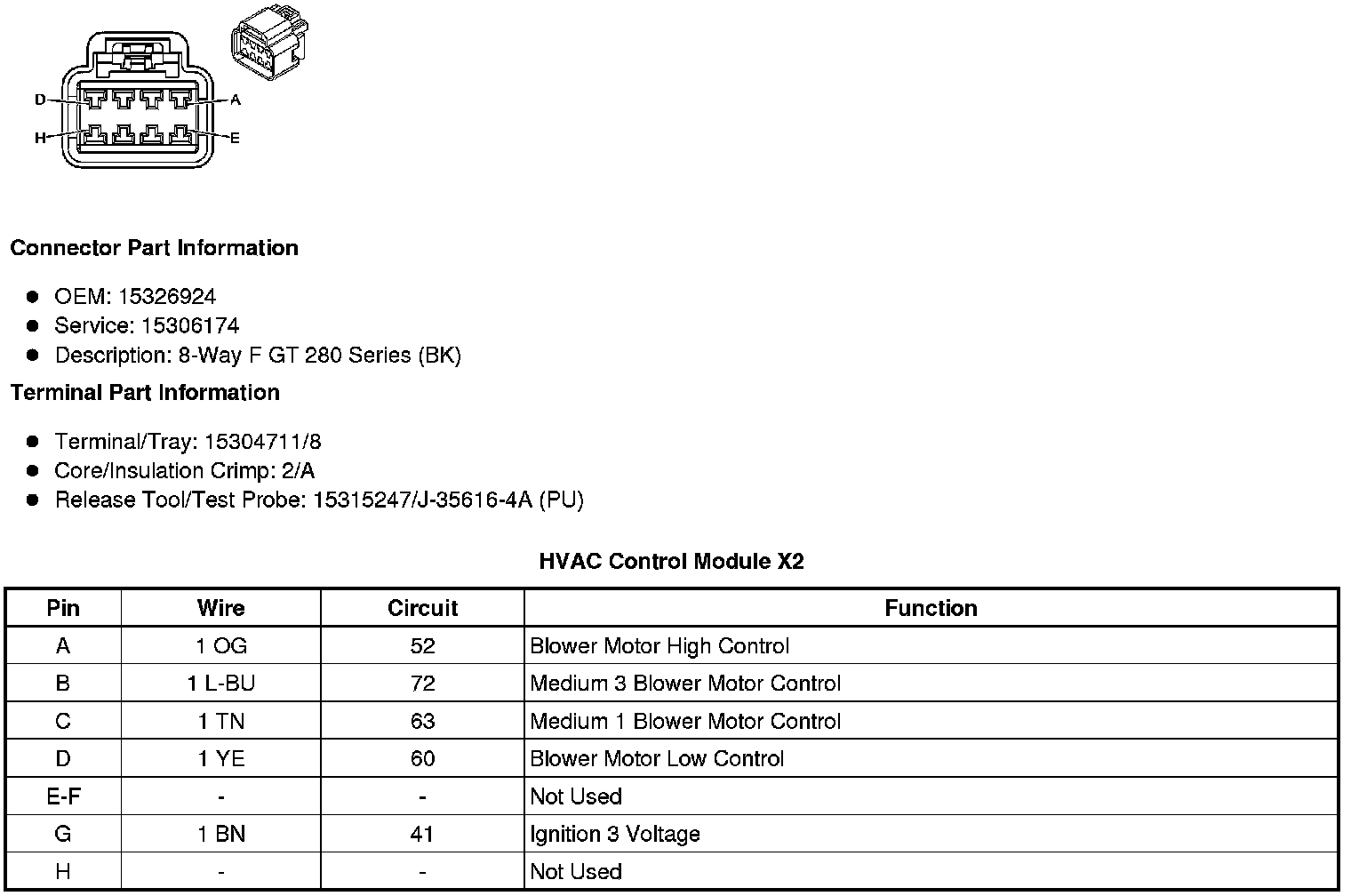

HVAC Control Module X2
