Home
>>
Chevrolet
>>
2011
>>
Camaro V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Valve Lifter Oil Manifold Assembly Q43
Valve Lifter Oil Manifold Assembly Q43

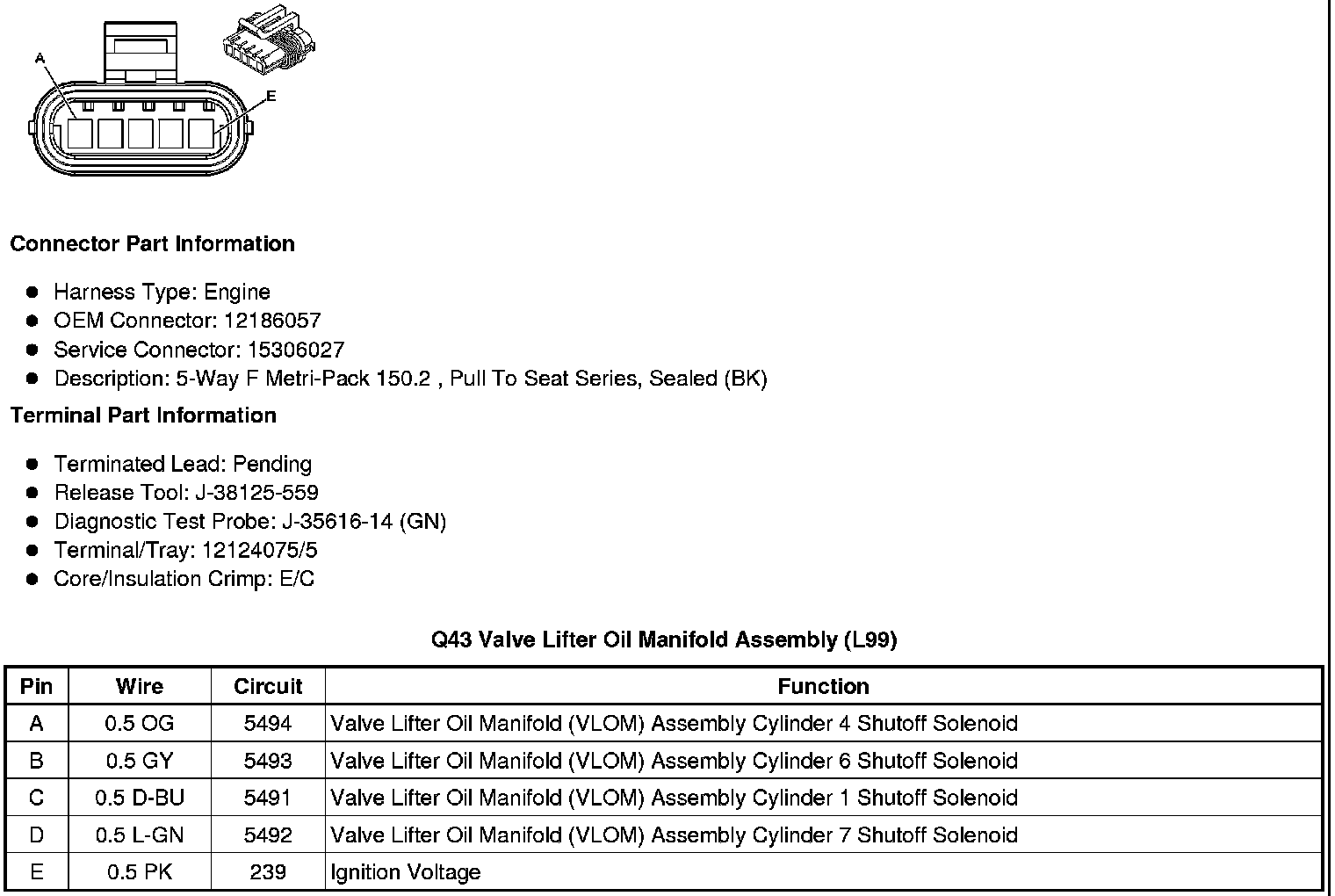

Component Connector End Views
Q43 Valve Lifter Oil Manifold Assembly (L99)
