Heating and Air Conditioning




HVAC Schematics

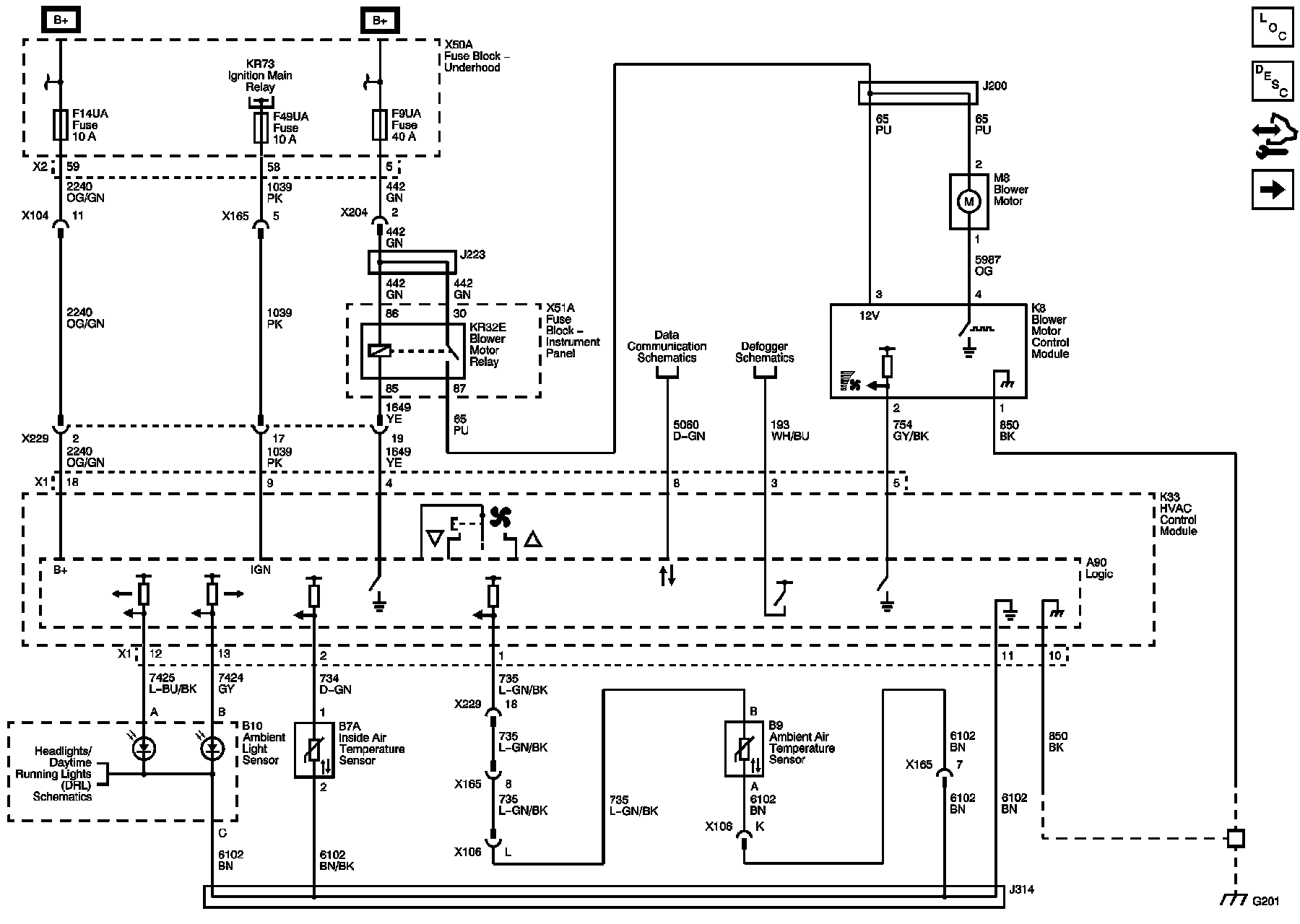

Module Power, Ground, Serial Data, Temperature Sensors, and Blower Controls

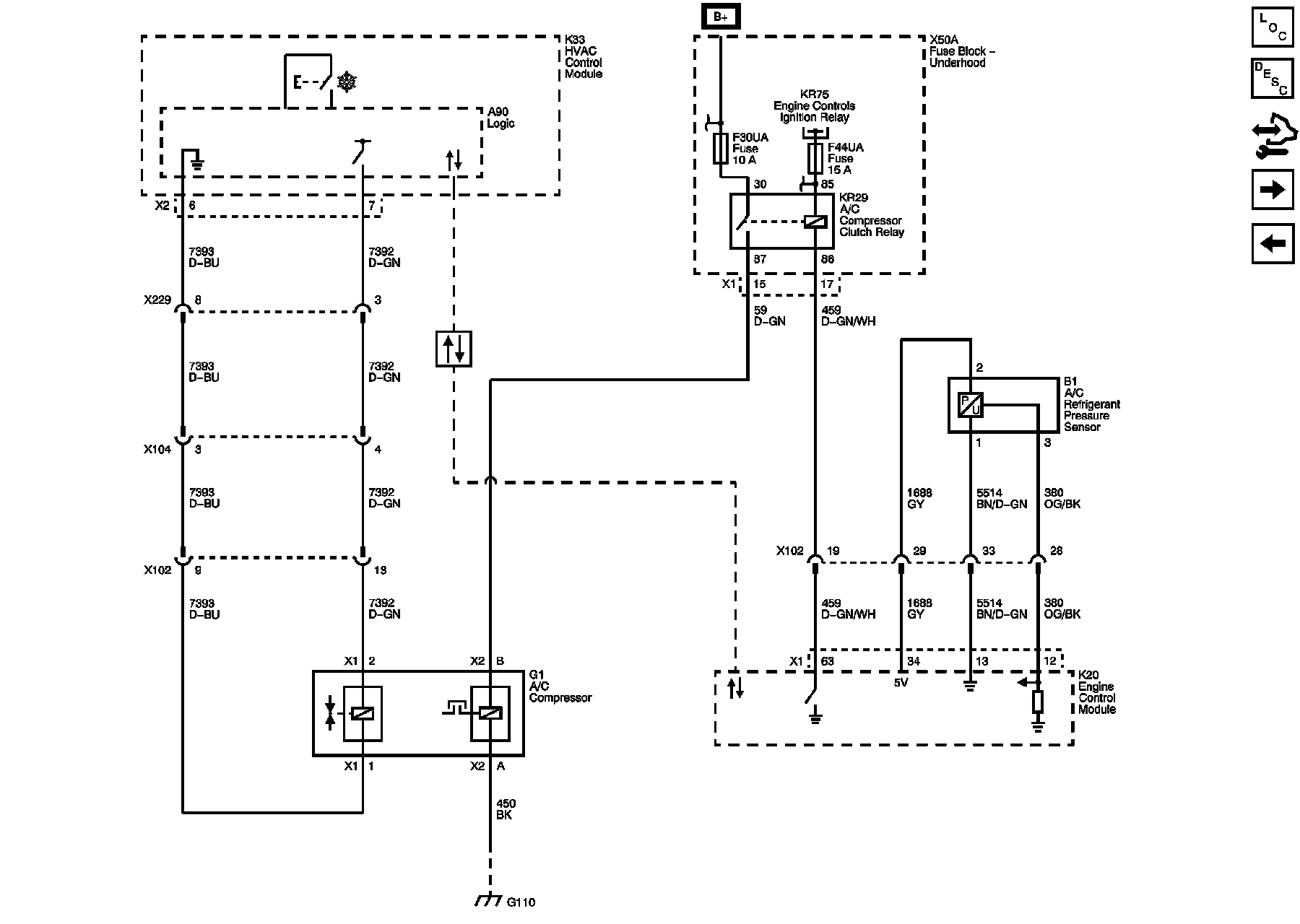

Compressor Controls

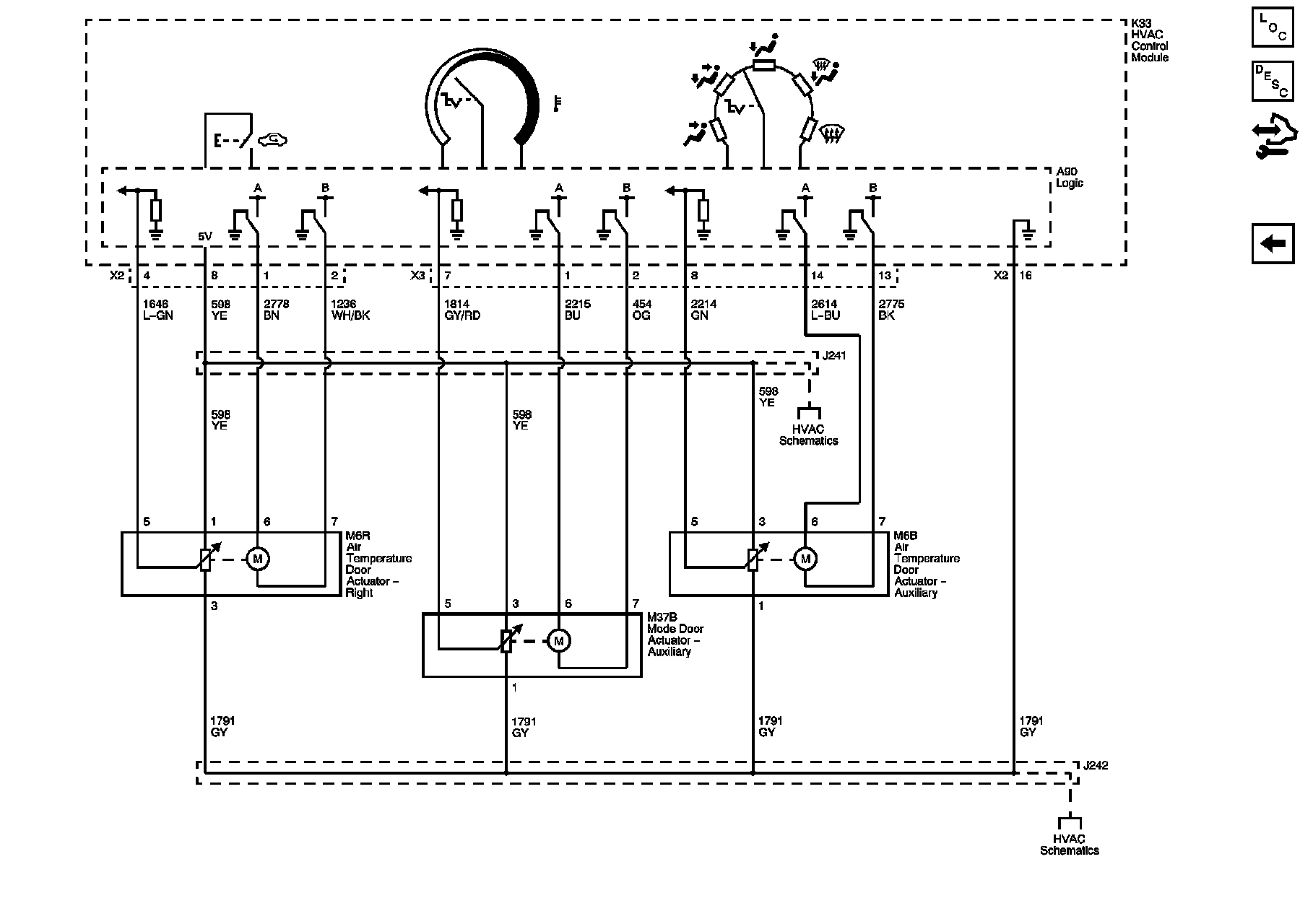

Air Delivery and Temperature Controls

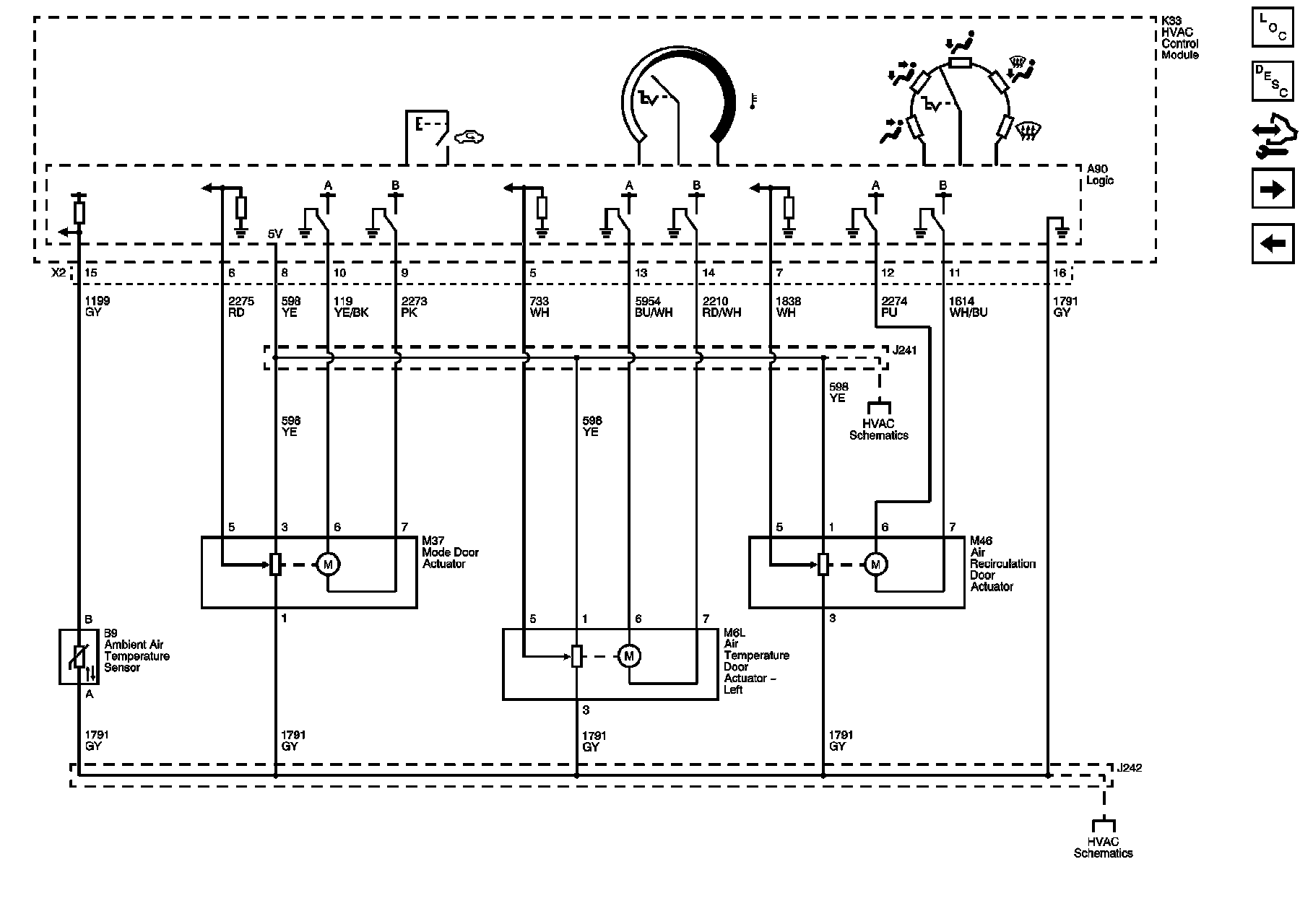

Air Delivery Controls
