Behind the Instrument Panel Harness Routing

Harness Routing Views

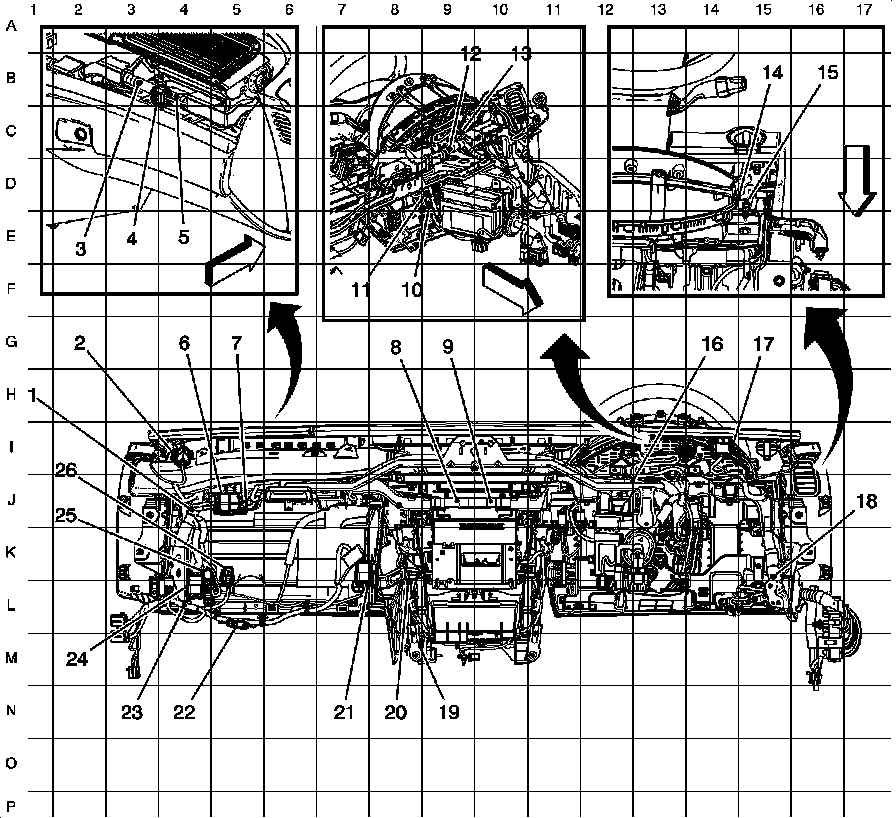

Behind the Instrument Panel Harness Routing





1 - J205

2 - X213

3 - J211

4 - JX200

5 - J208

6 - X229

7 - X228

8 - J299

9 - J214

10 - J216

11 - J215

12 - J236

13 - J239

14 - J221

15 - J222

16 - J269

17 - X212

18 - J223

19 - X223

20 - J240

21 - J209

22 - X205

23 - X274

24 - J200

25 - X230

26 - X267
