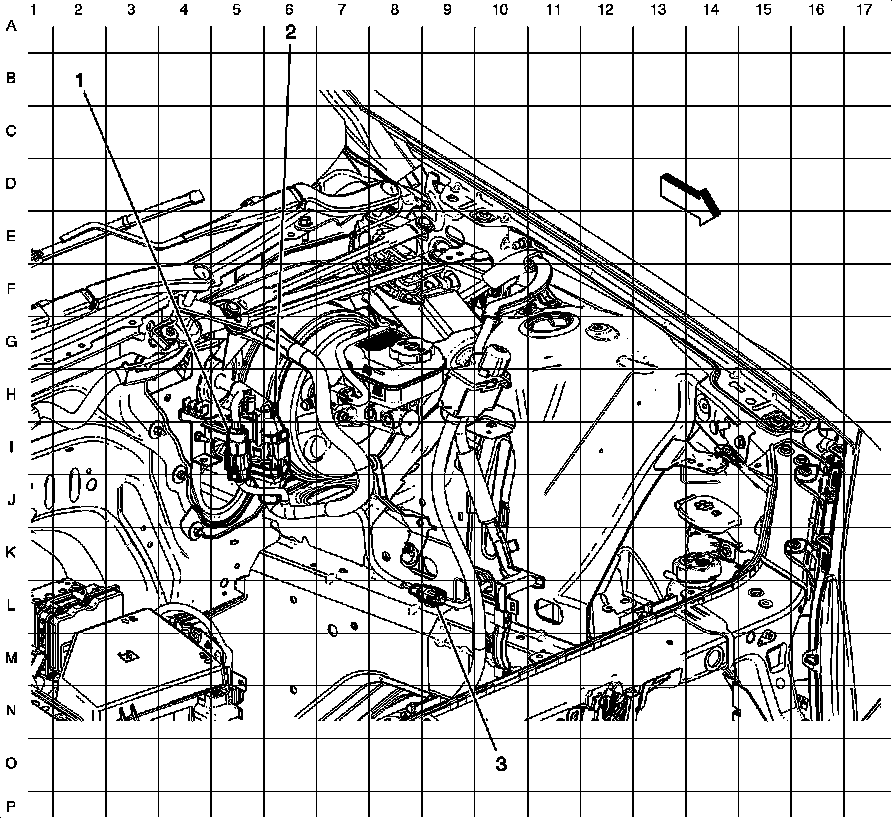

Left Side of the Engine Compartment Harness Routing

Harness Routing Views

Left Side of the Engine Compartment Harness Routing





1 - X106 Front Compartment Harness to the Forward Lamp Harness

2 - X104 Forward Lamp Harness to the I/P Harness

3 - X162
