Home >> Chevrolet >> 2011 >> Caprice PPV V8-6.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Accessory Relay >> Locations >> R7 RAP 2 KR76A Retained Accessory Power Relay

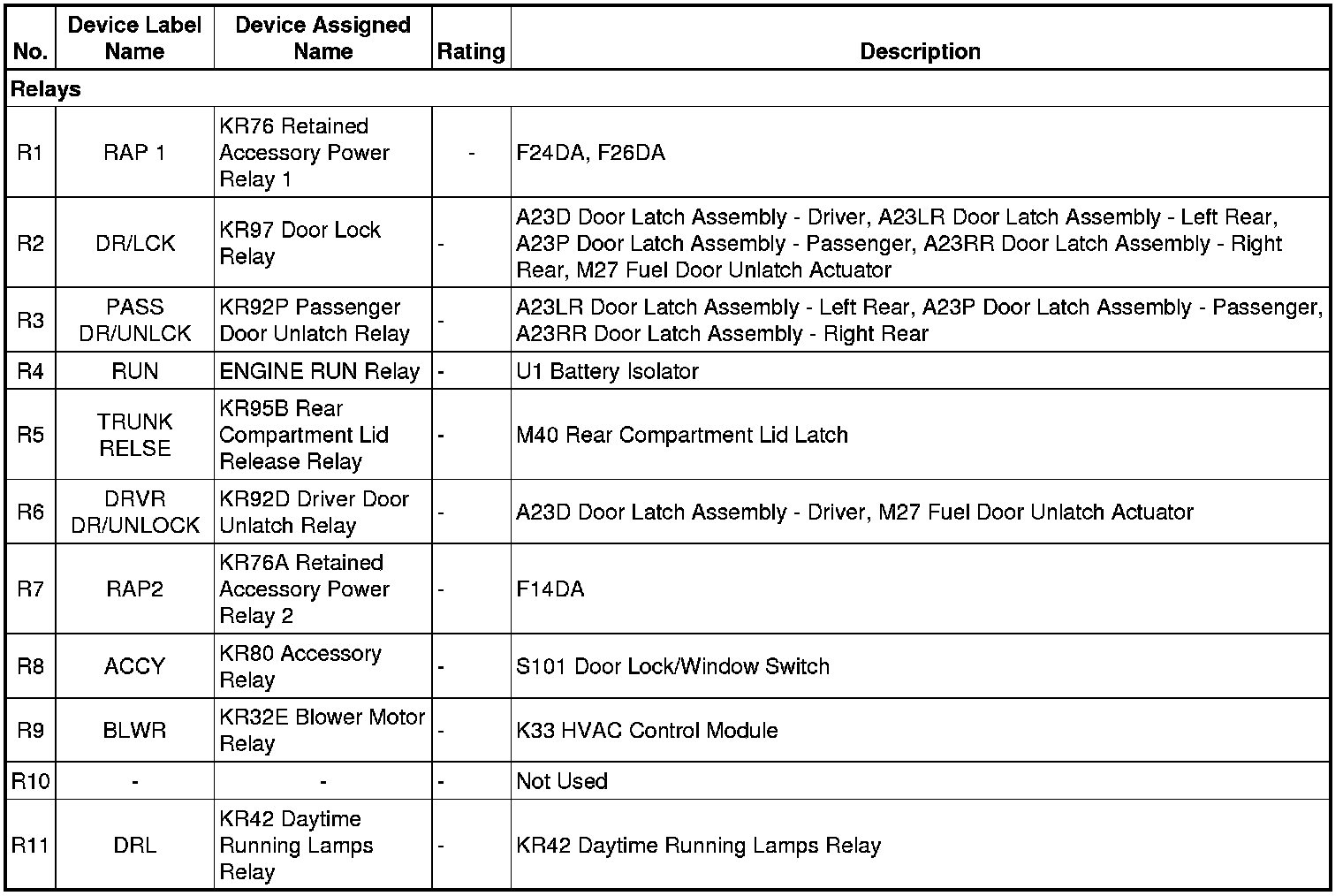

R7 RAP 2 KR76A Retained Accessory Power Relay

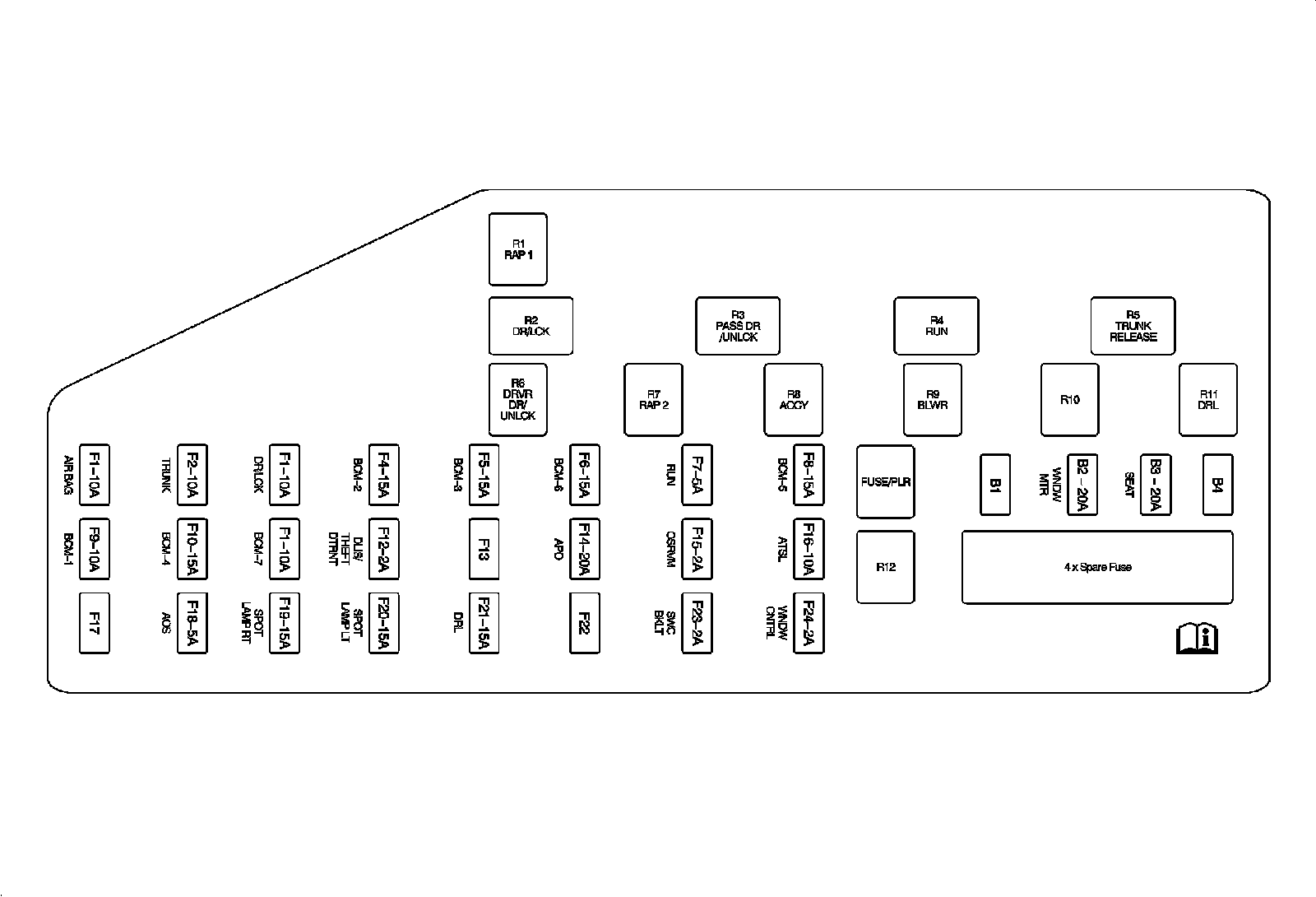

Electrical Center Identification Views

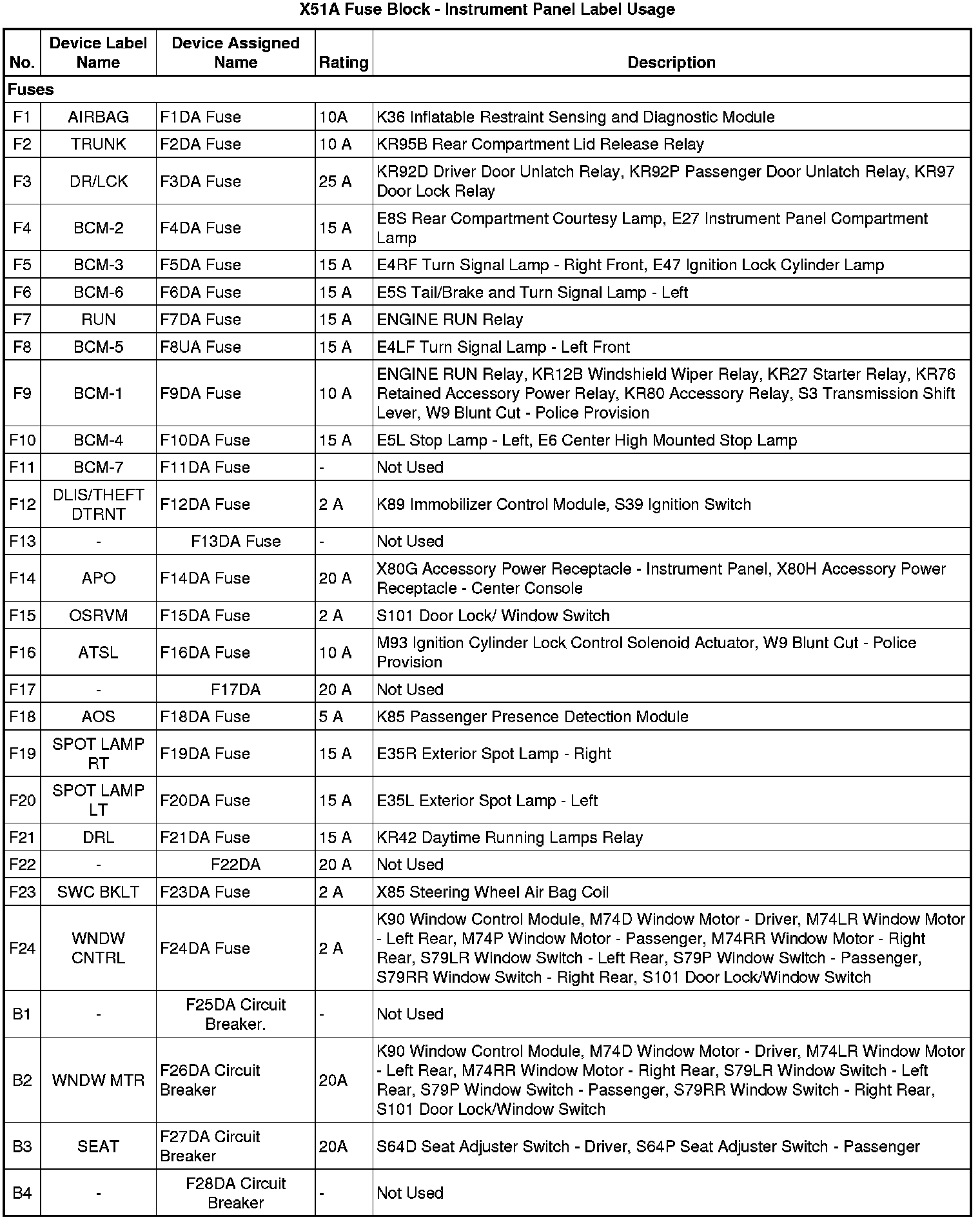

X51A Fuse Block - Instrument Panel Label

R5 TRUNK RELSE KR95B Rear Compartment Lid Release Relay
