Axle Shaft Assembly

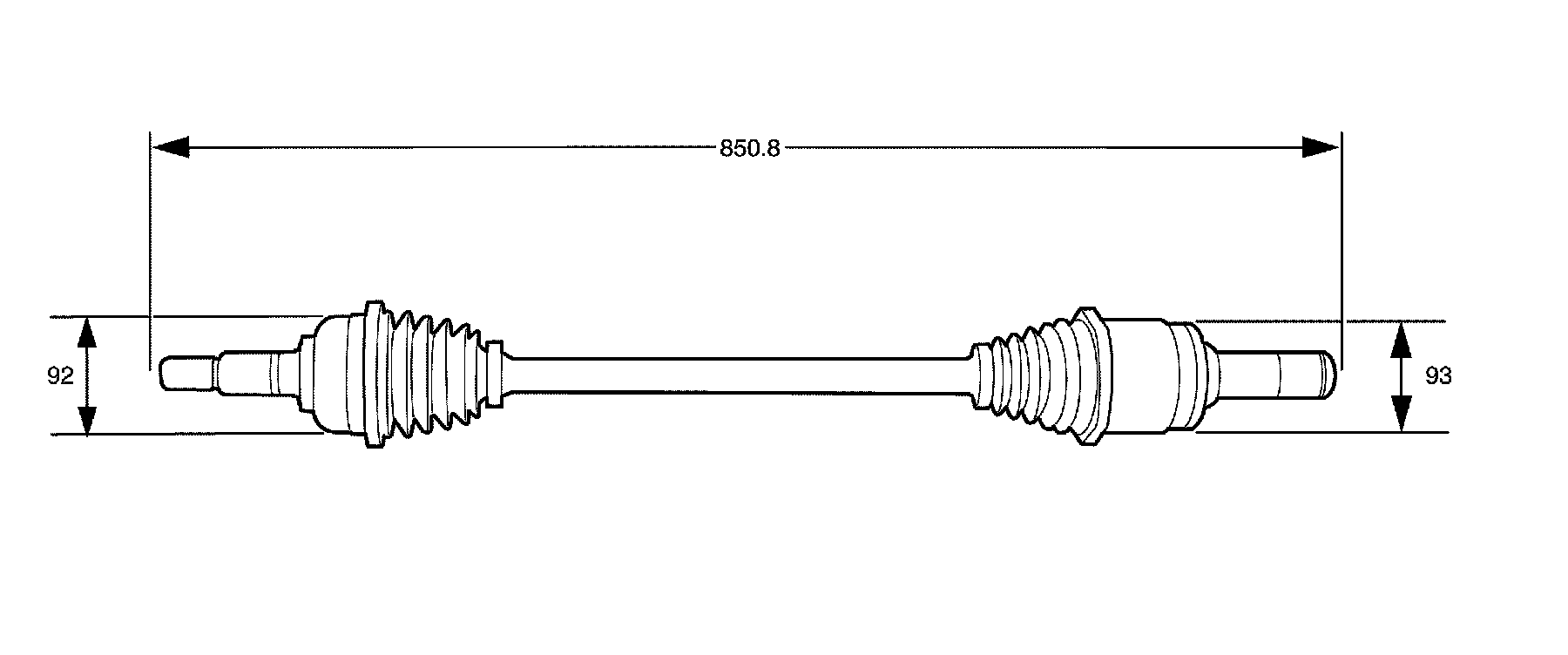

Wheel Drive Shaft Specifications

V8 Right Hand Side






V6 Right Hand Side






V8 Left Hand Side






V6 Left Hand Side

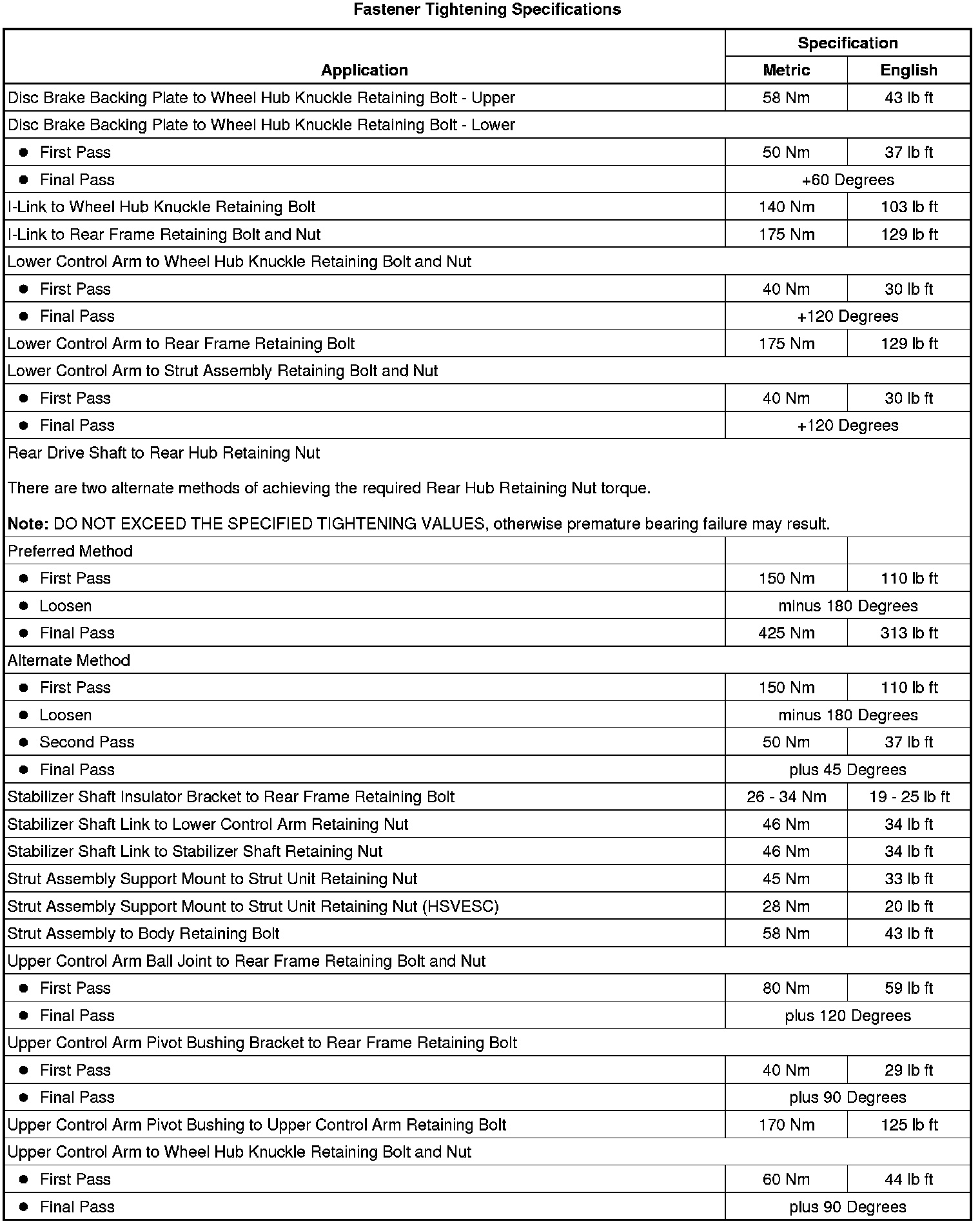

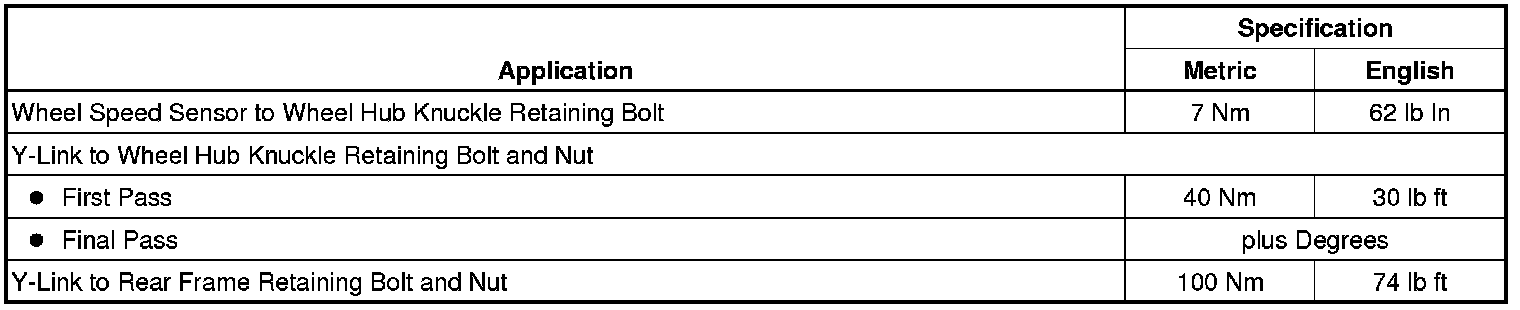

Fastener Tightening Specifications
