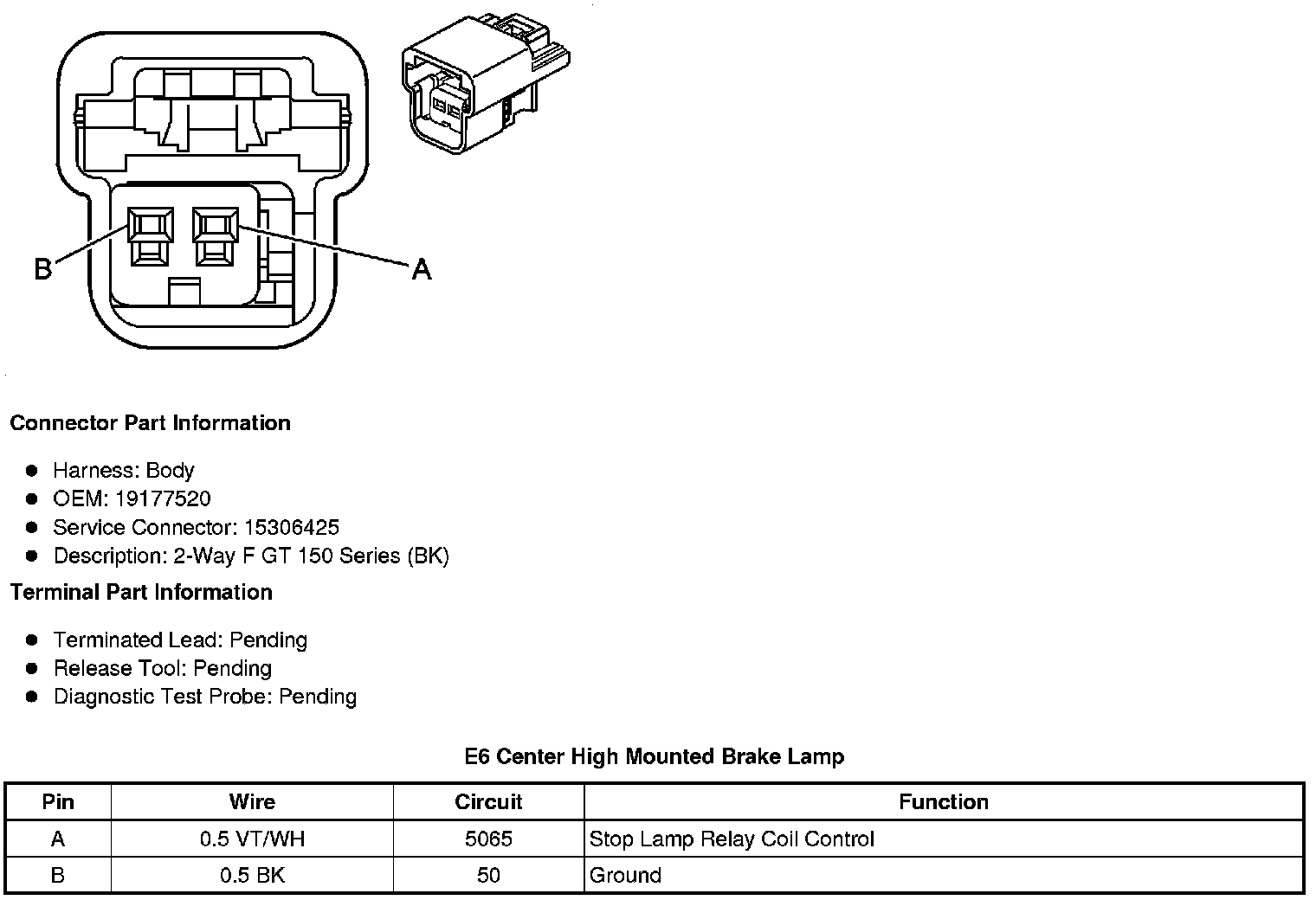

Center High Mounted Brake Lamp E6
Center High Mounted Brake Lamp E6
Component Connector End Views
E6 Center High Mounted Brake Lamp
