X101
X101

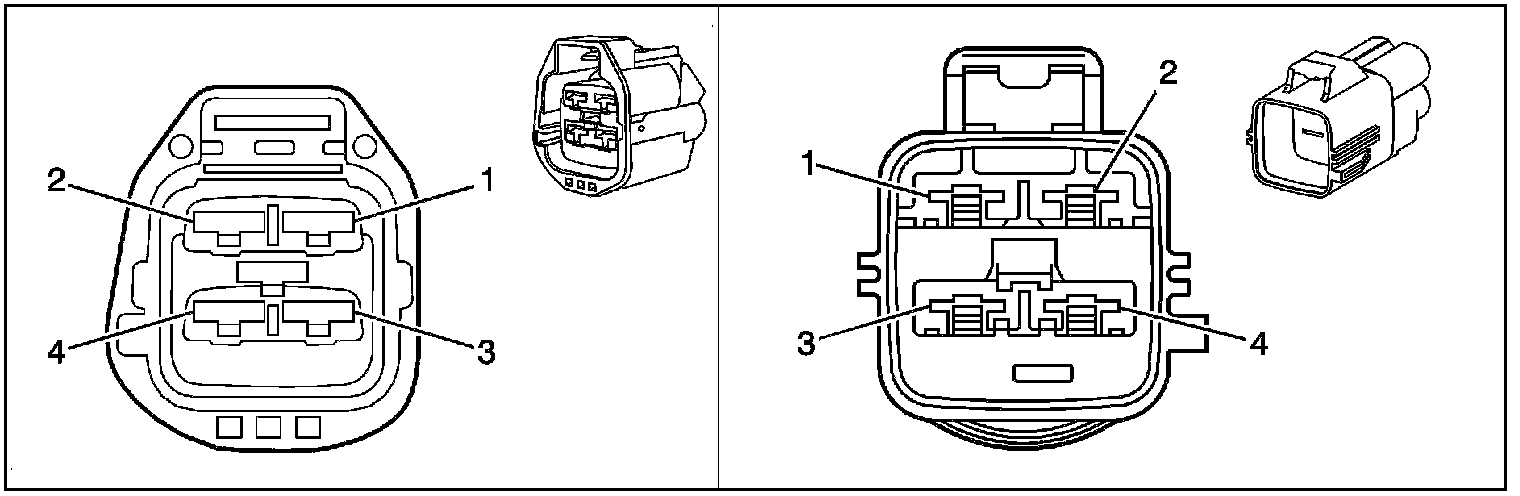

Inline Harness Connector End Views

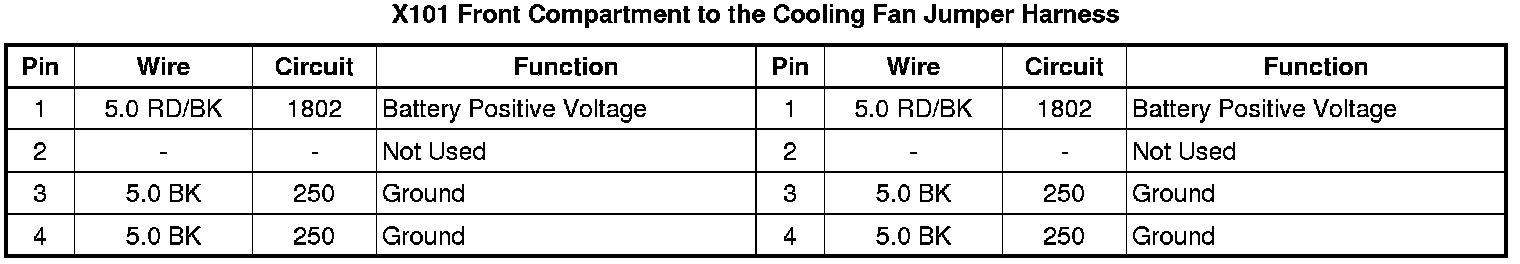

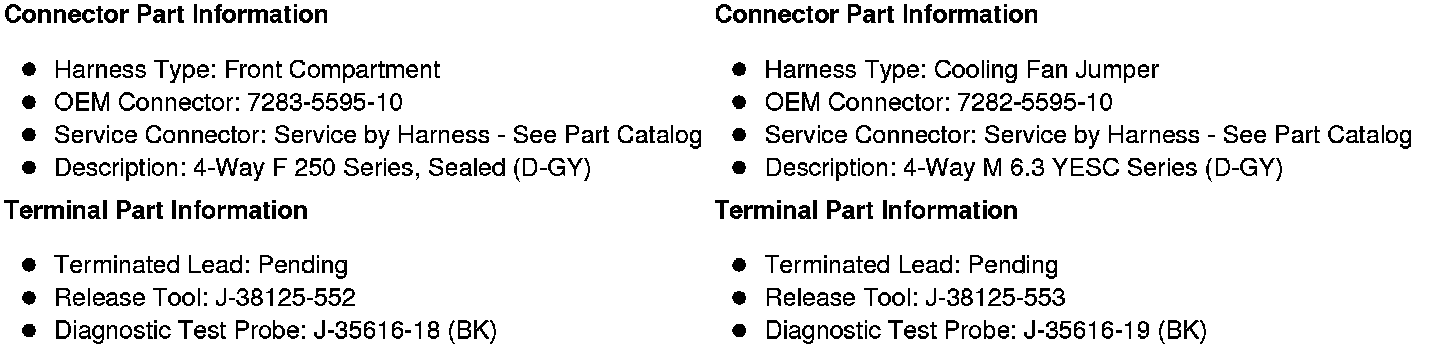

X101 Front Compartment Harness to the Cooling Fan Jumper Harness
