X106
X106

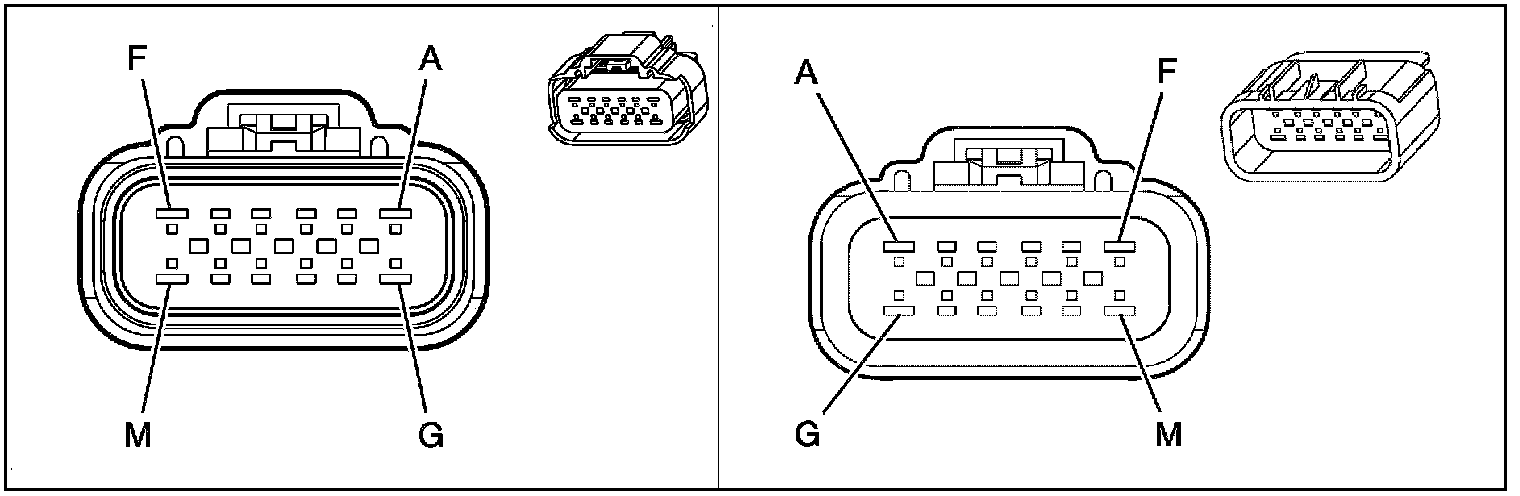

Inline Harness Connector End Views

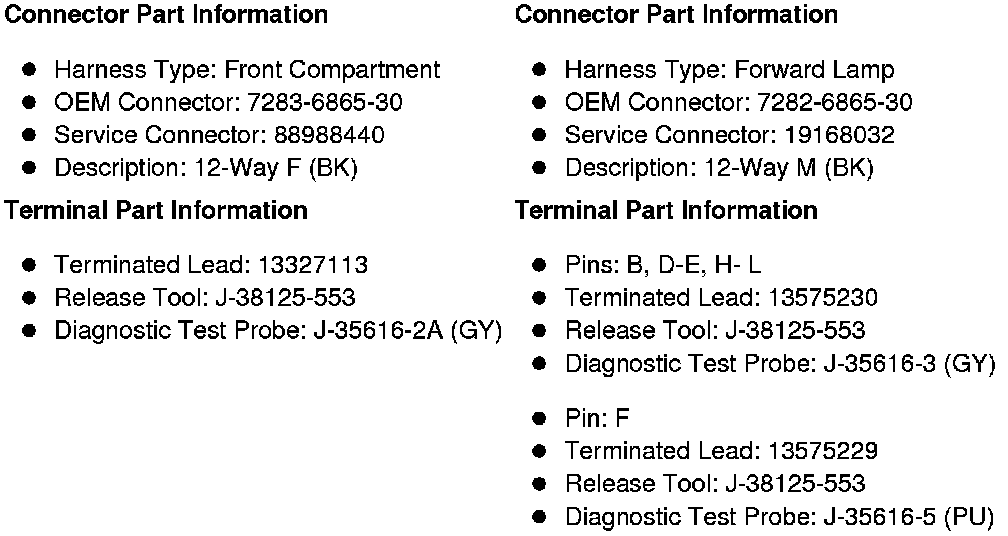

X106 Front Compartment Harness to the Forward Lamp Harness
