X120
X120

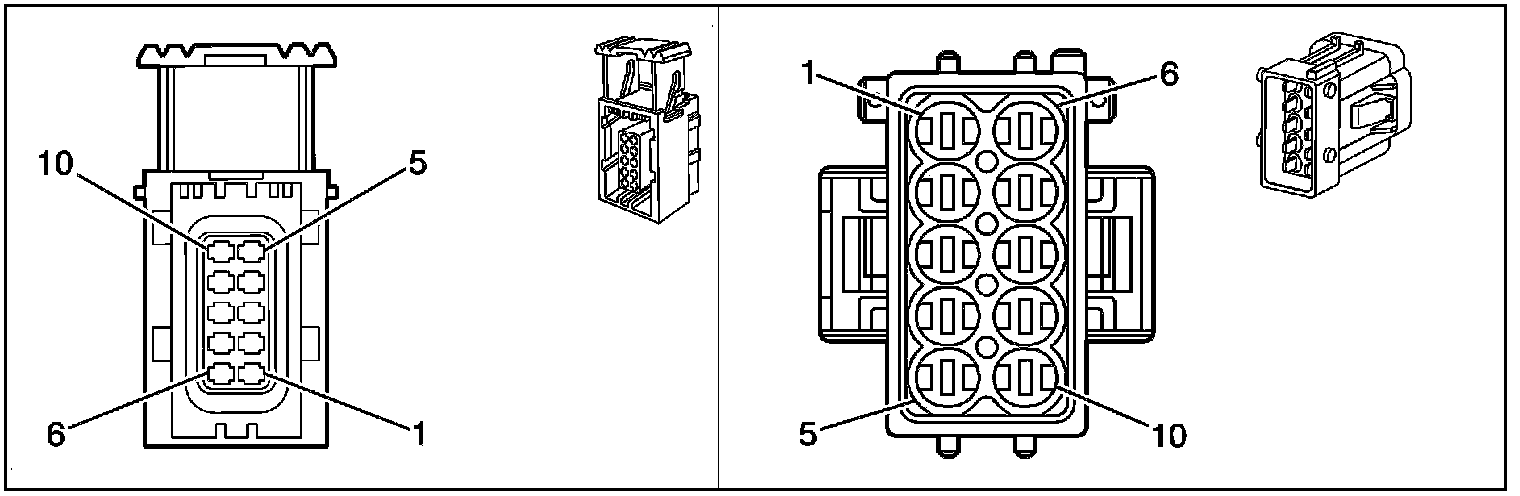

Inline Harness Connector End Views

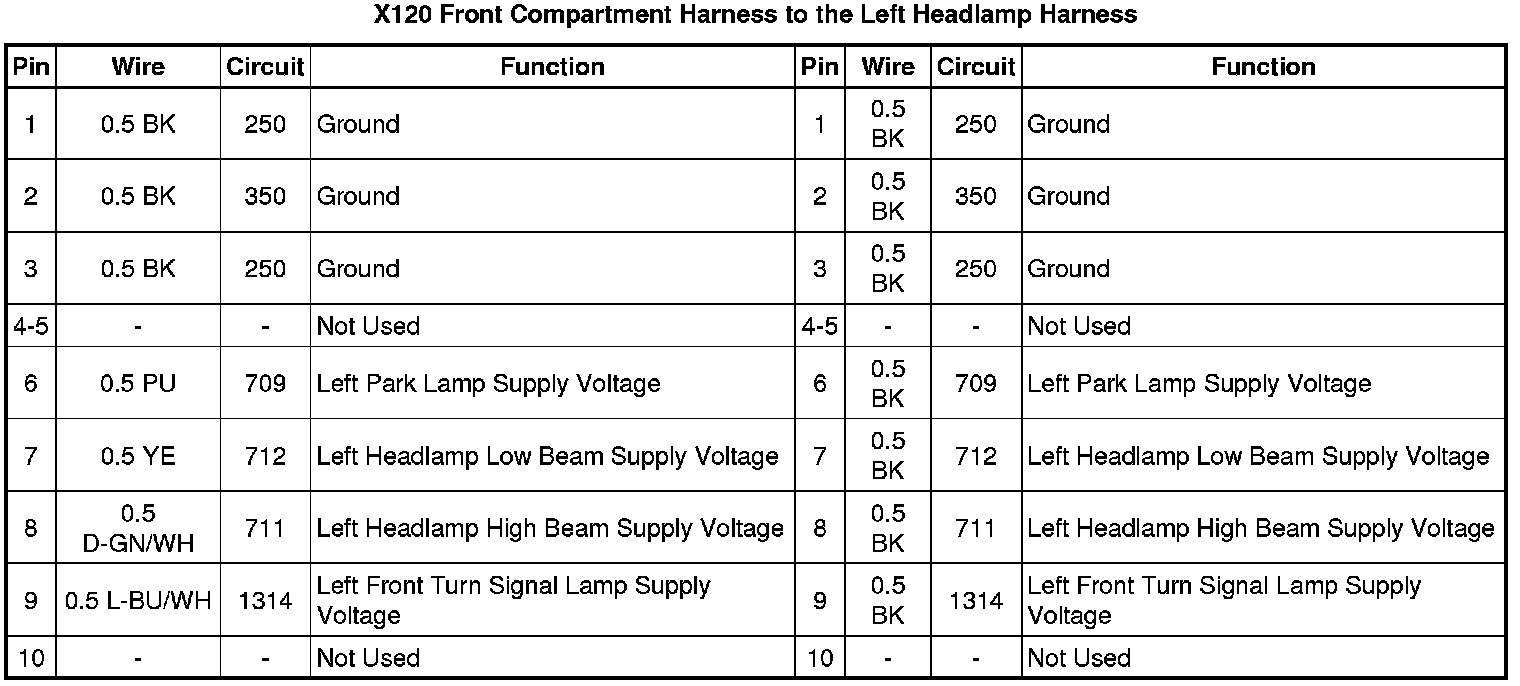

X120 Front Compartment Harness to the Left
Headlamp
Harness
