X121

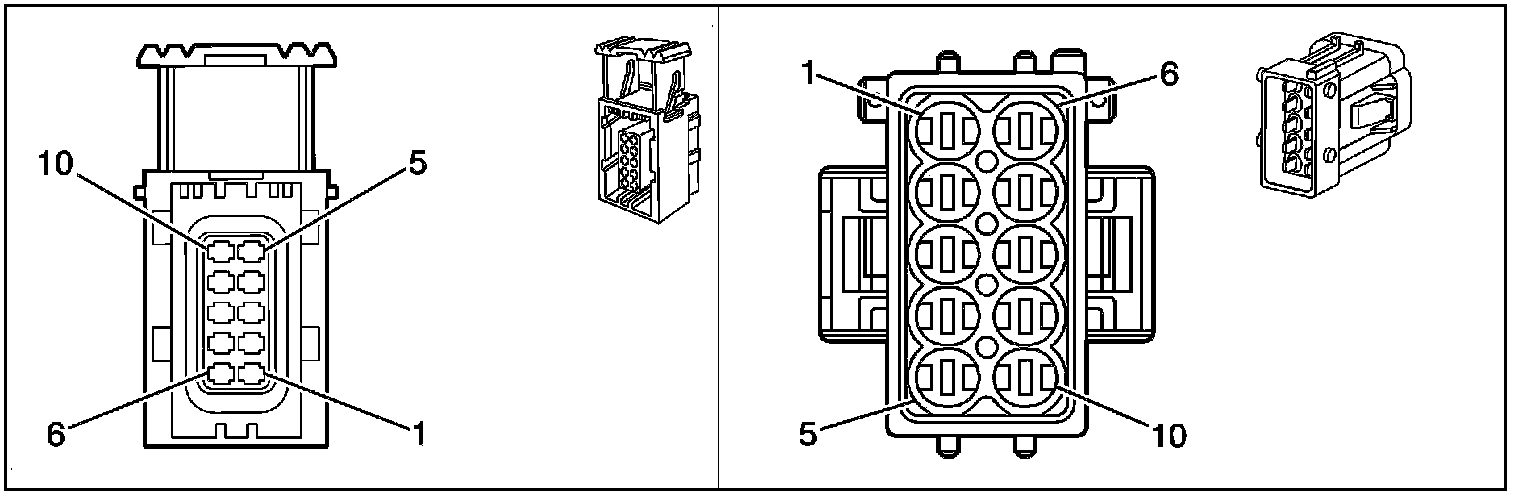

Inline Harness Connector End Views

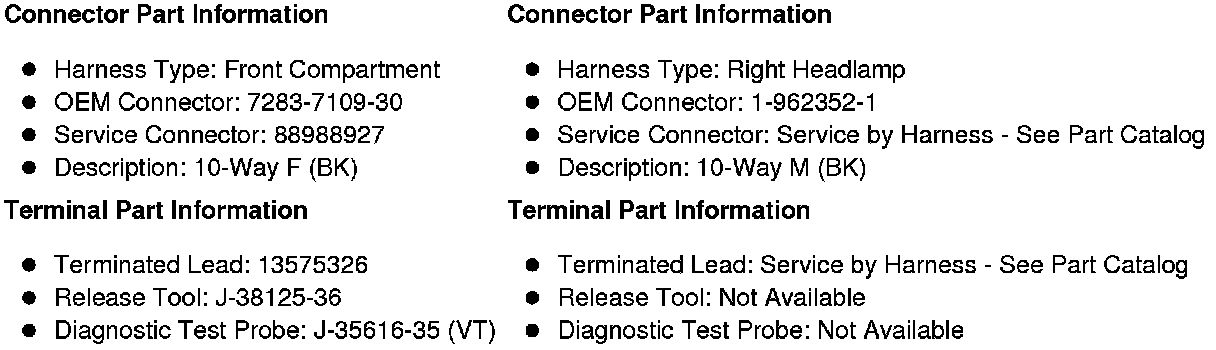

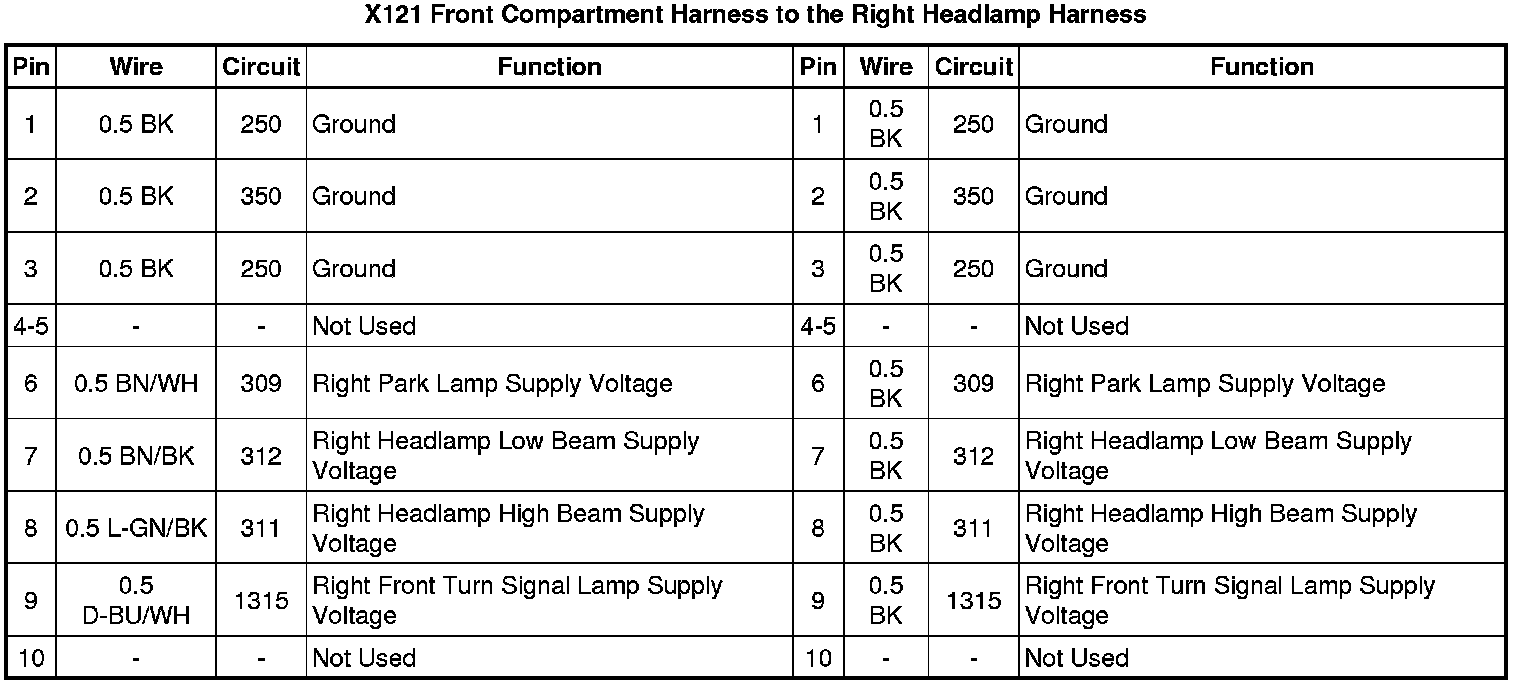

X121 Front Compartment Harness to the Right
Headlamp
Harness
