X162
X162

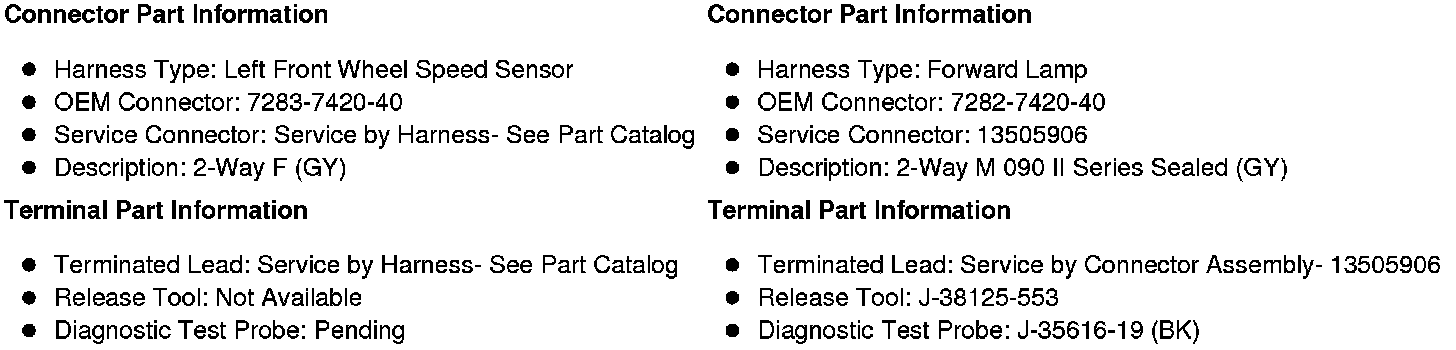

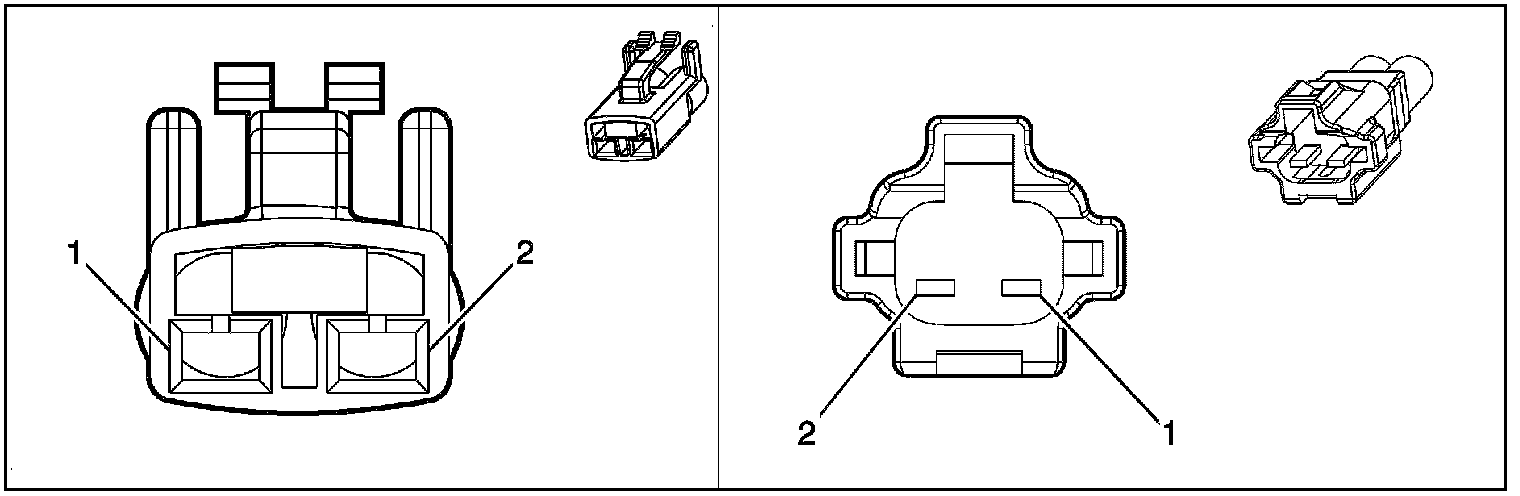

Inline Harness Connector End Views
X162 Left Front
Wheel Speed Sensor
Harness to the Forward Lamp Harness
