X164
X164

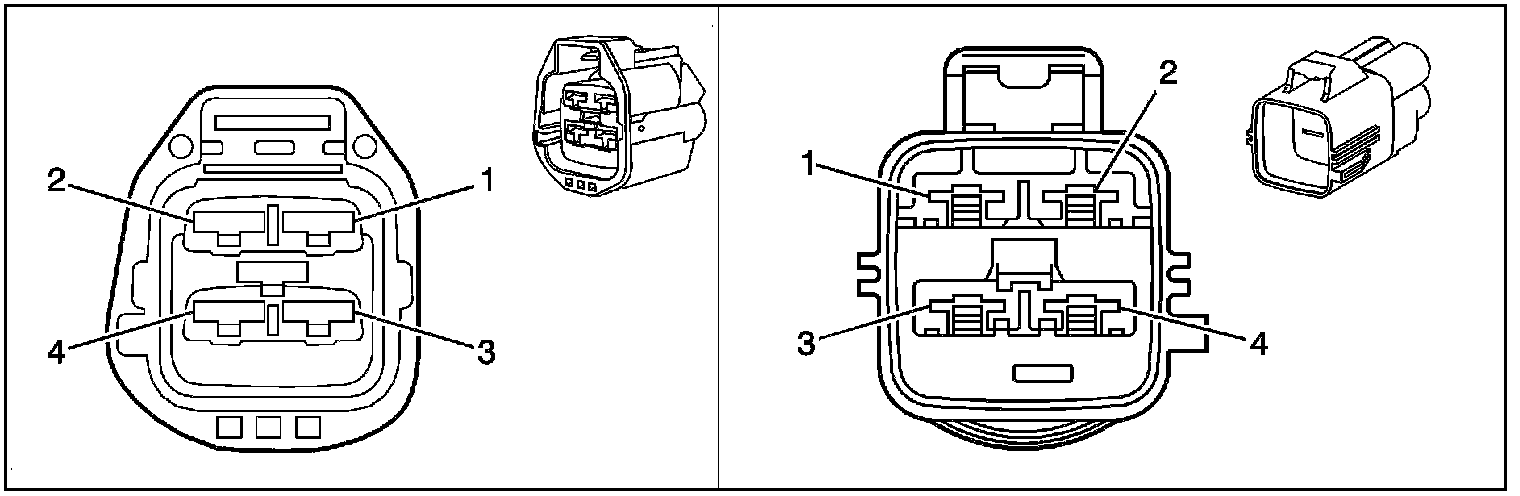

Inline Harness Connector End Views

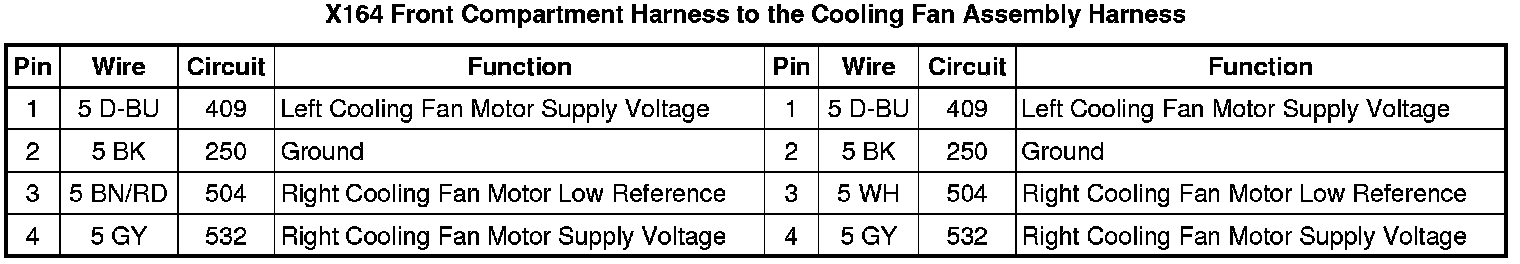

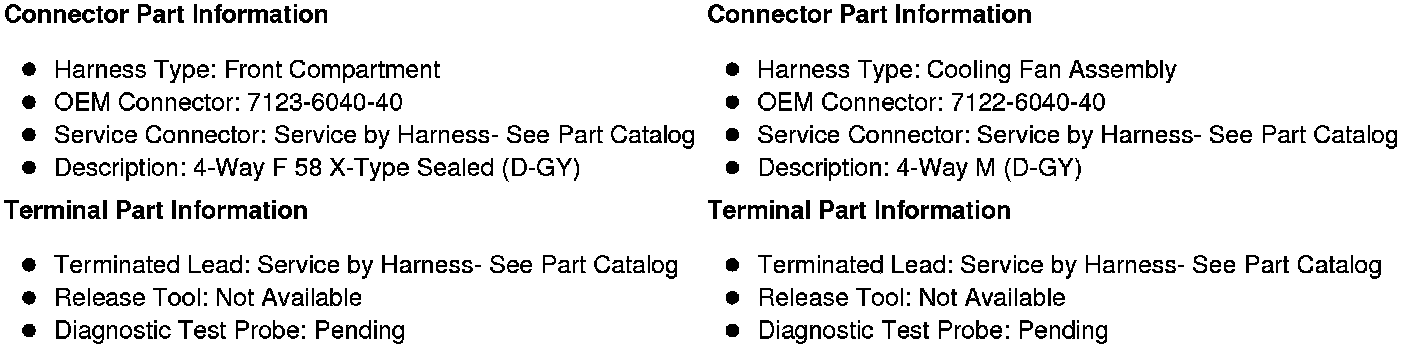

X164 Front Compartment Harness to the Cooling Fan Assembly Harness
