X165
X165

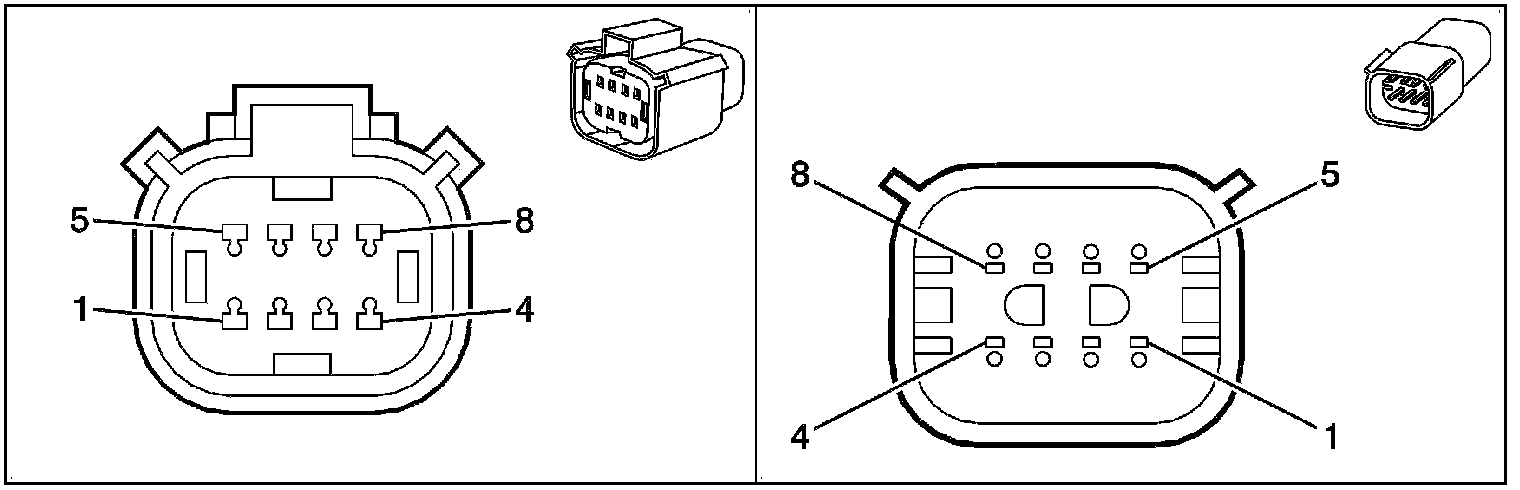

Inline Harness Connector End Views

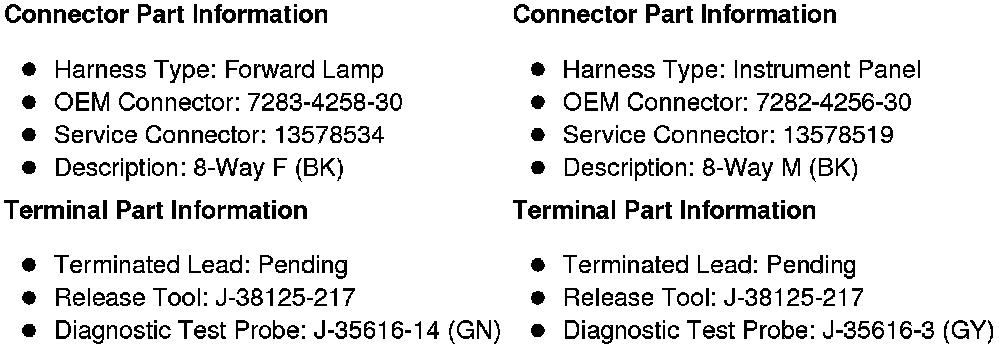

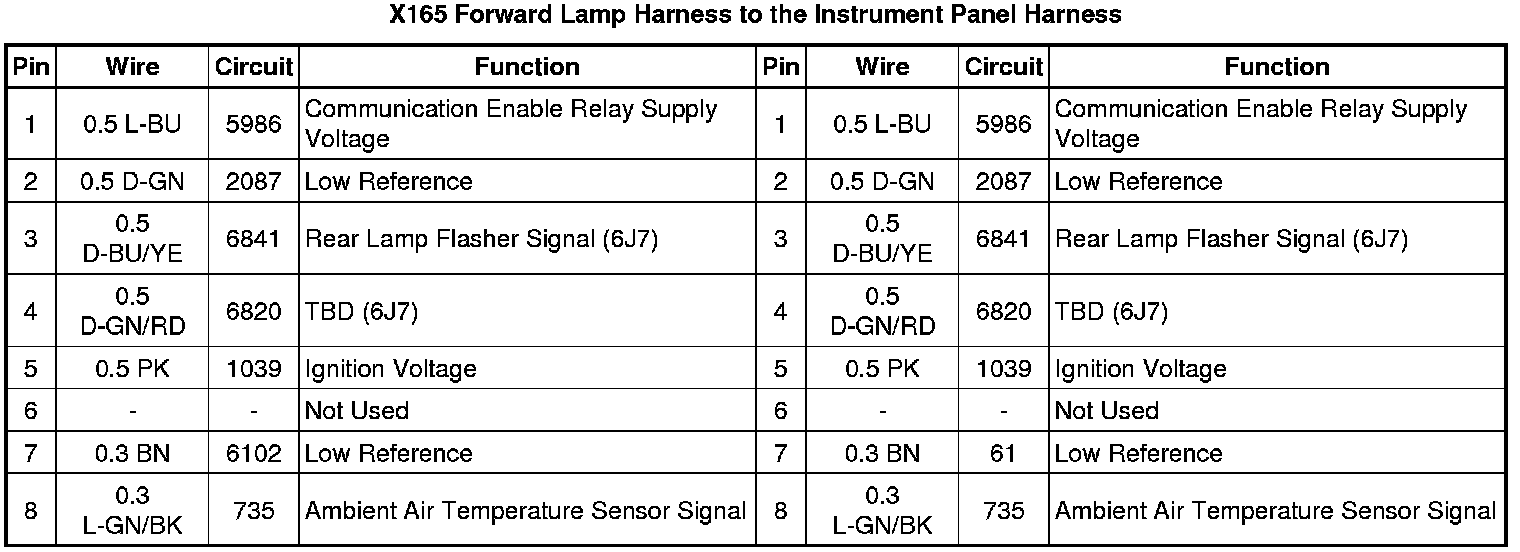

X165 Forward Lamp Harness to the Instrument Panel Harness
