X229

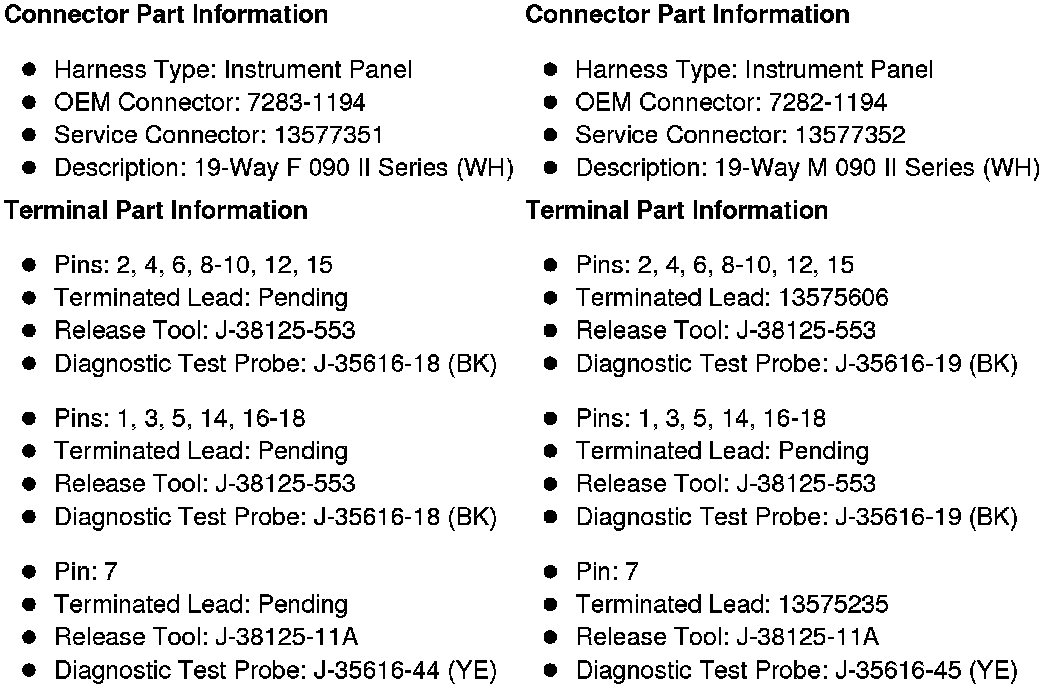

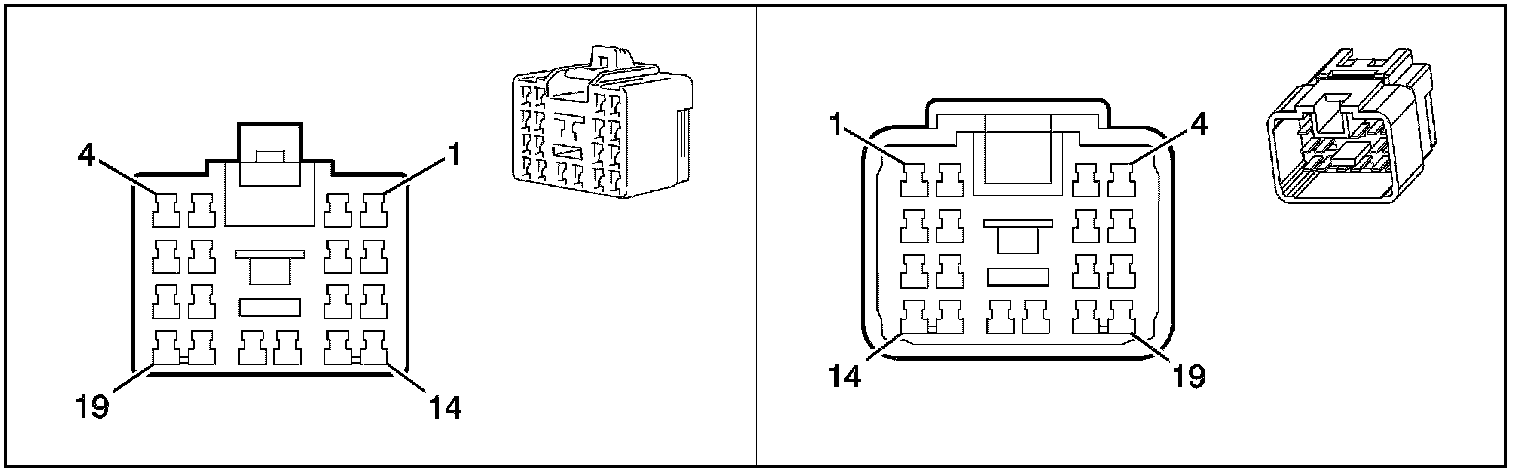

Inline Harness Connector End Views

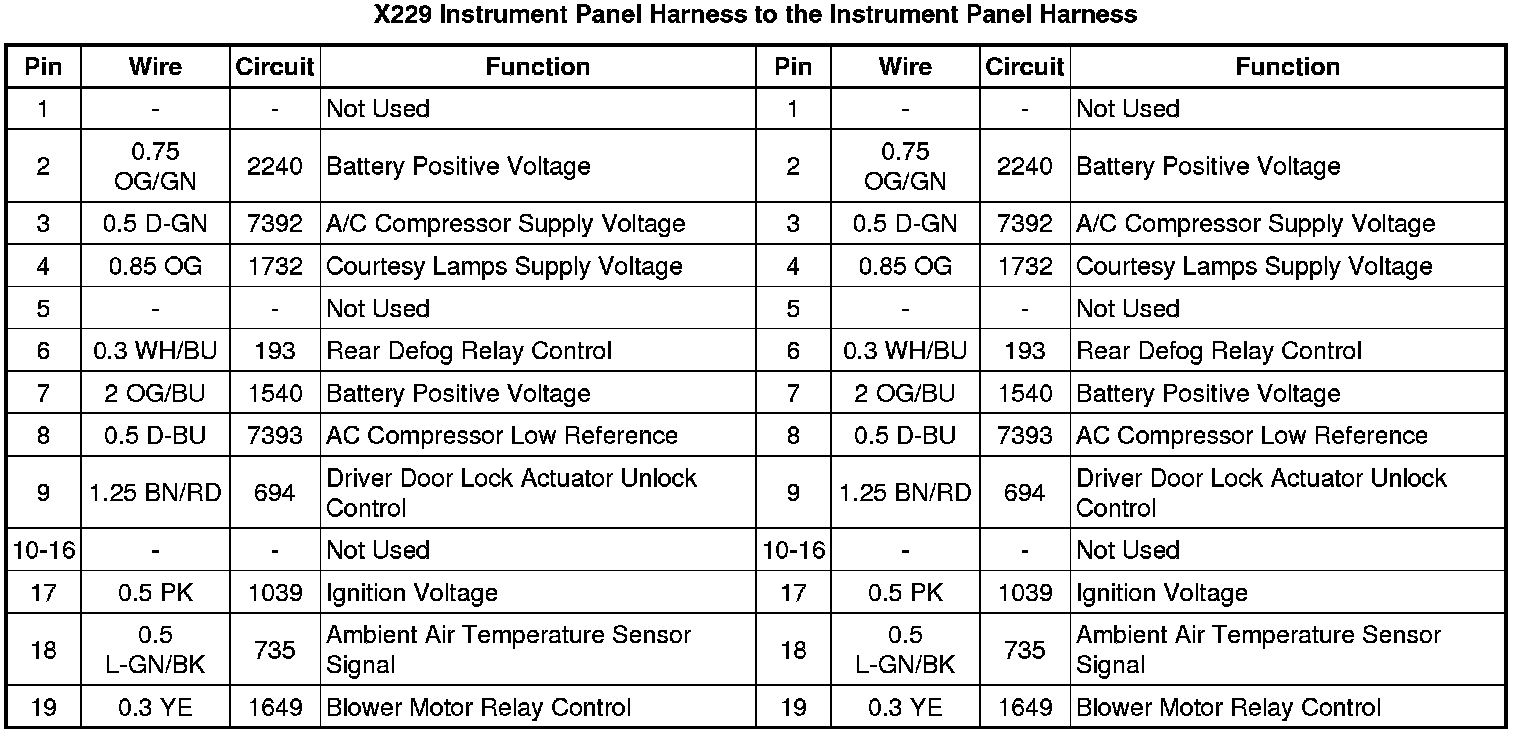

X229 Instrument Panel Harness to the Instrument Panel Harness
