X108
X108

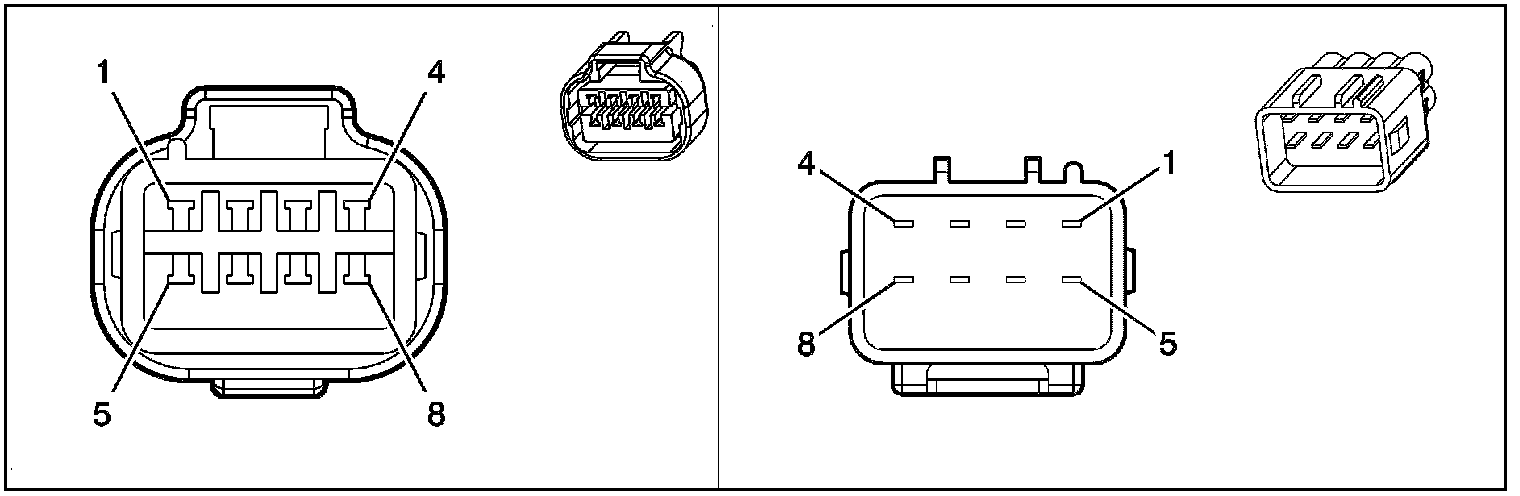

Inline Harness Connector End Views

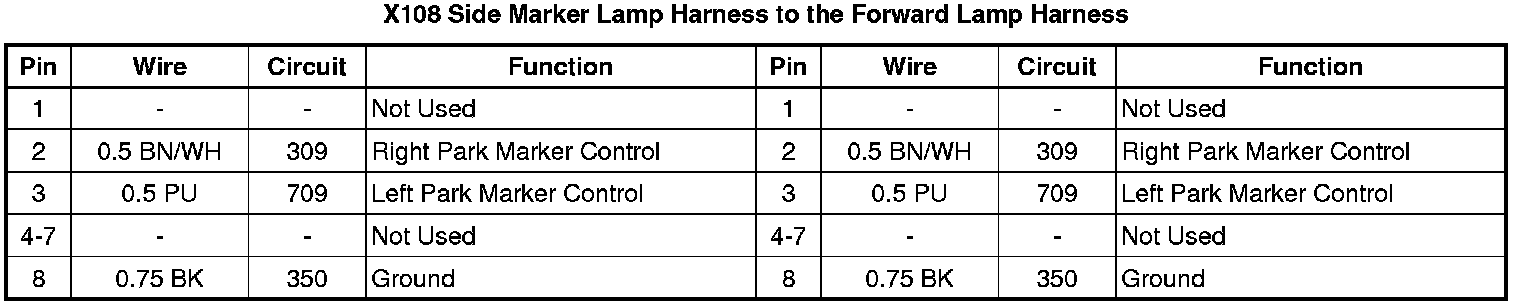

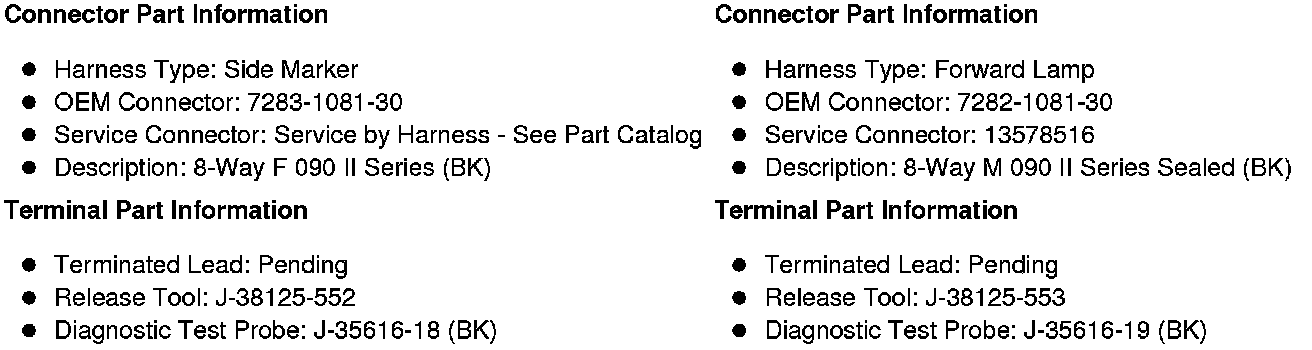

X108 Side Marker Lamp Harness to the Forward Lamp Harness
