Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
1985
>>
Astro Van M V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Engine Controls
>>
California Vehicles
California Vehicles

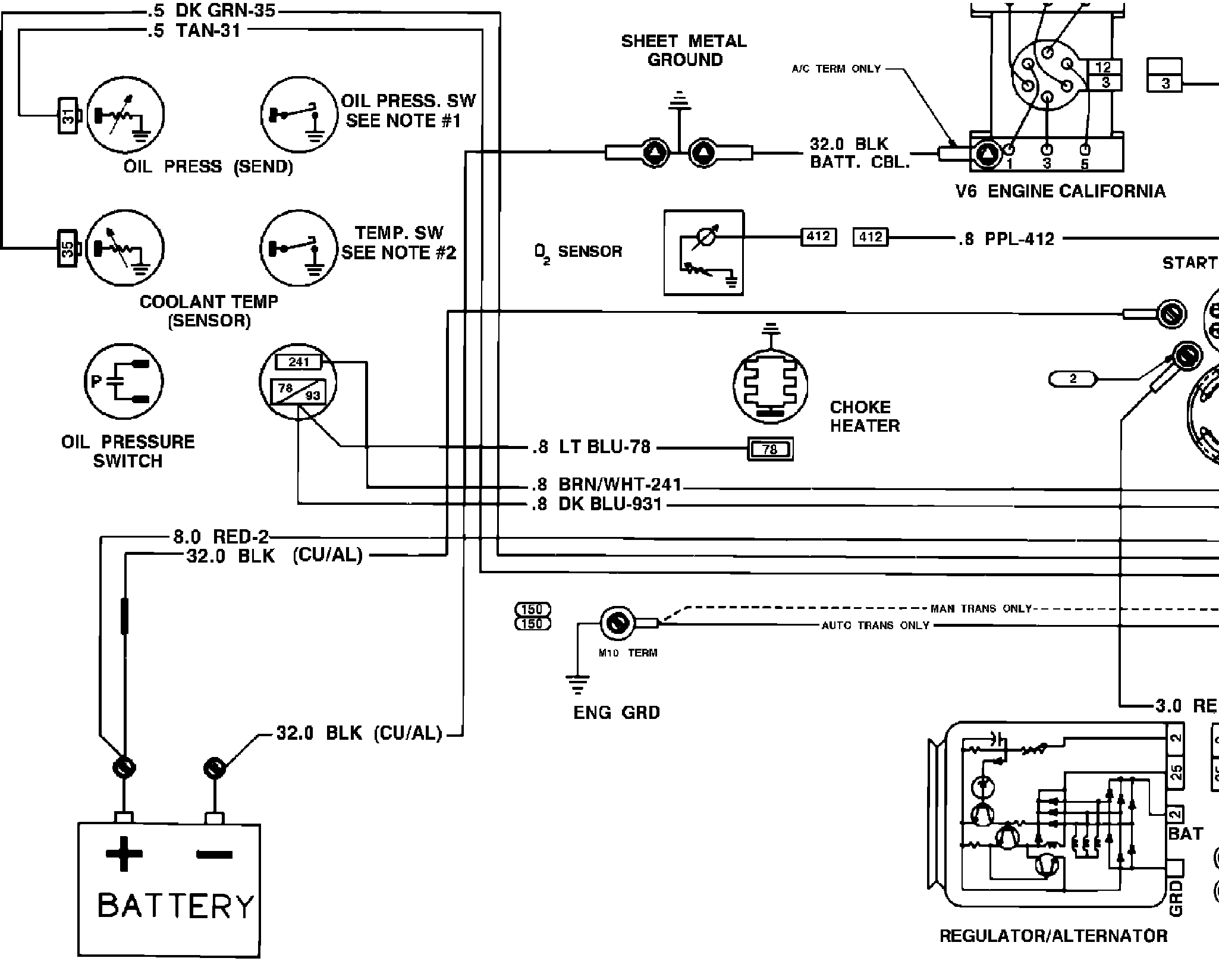

2�}$�~$�7~$Mn~$9q~$��~$D�~$@�~$ �~$Engine Wiring Circuit. California:
