Fuse Block

Fuse Block Location:

Behind LH Side Of I/P

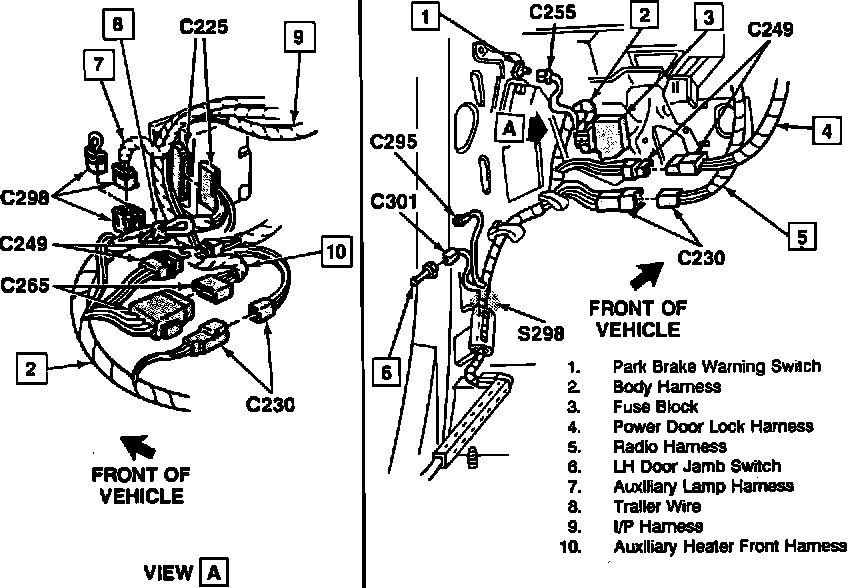

Fuse Block & Rear Body Harnesss.:

Behind LH Side Of I/P

Applicable to: 1991

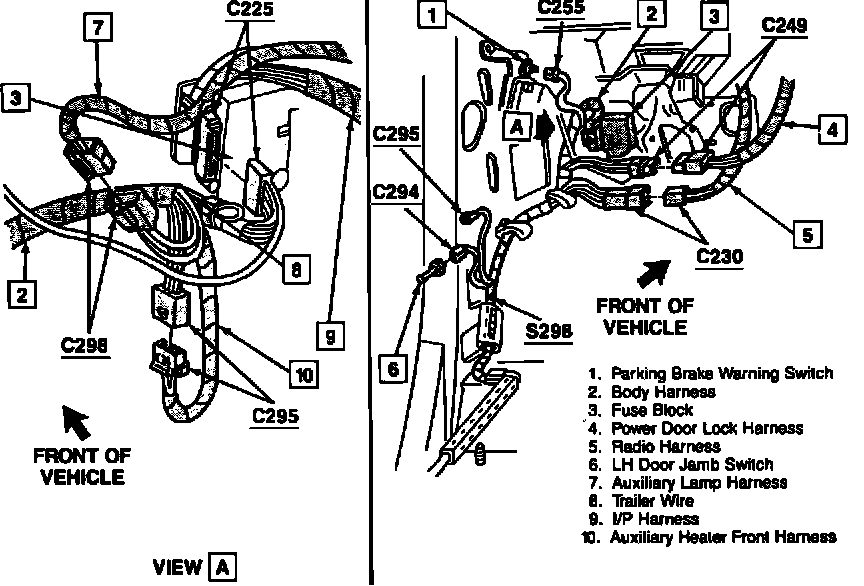

Fuse Block & Rear Body Harnesss.:

Behind LH Side Of I/P

Applicable to: 1992

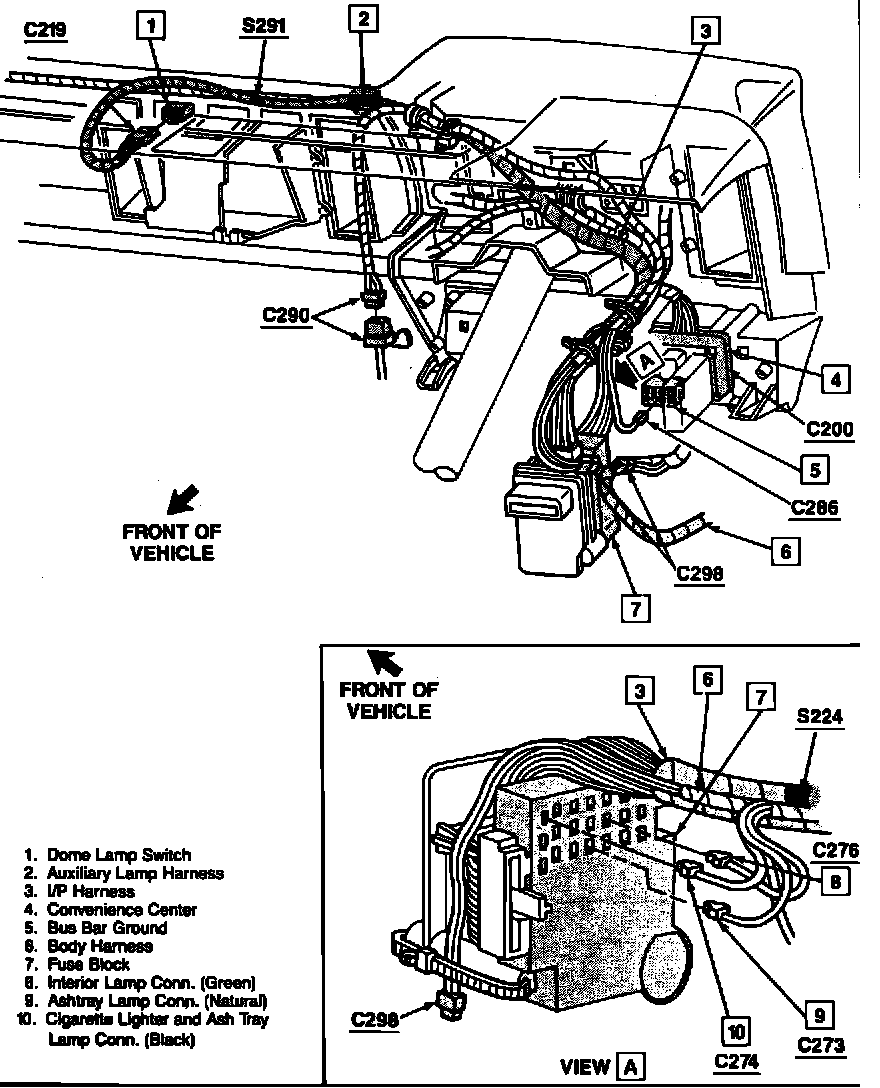

Dome & Reading Lamp:

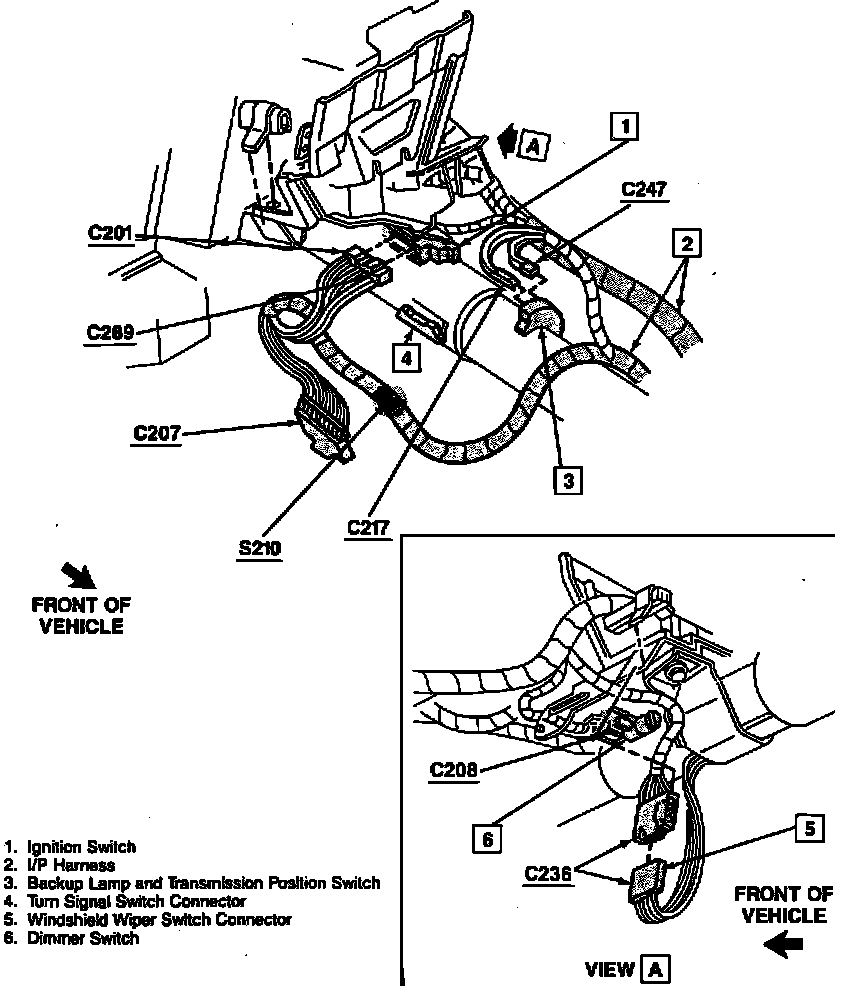

Steering Column Components:

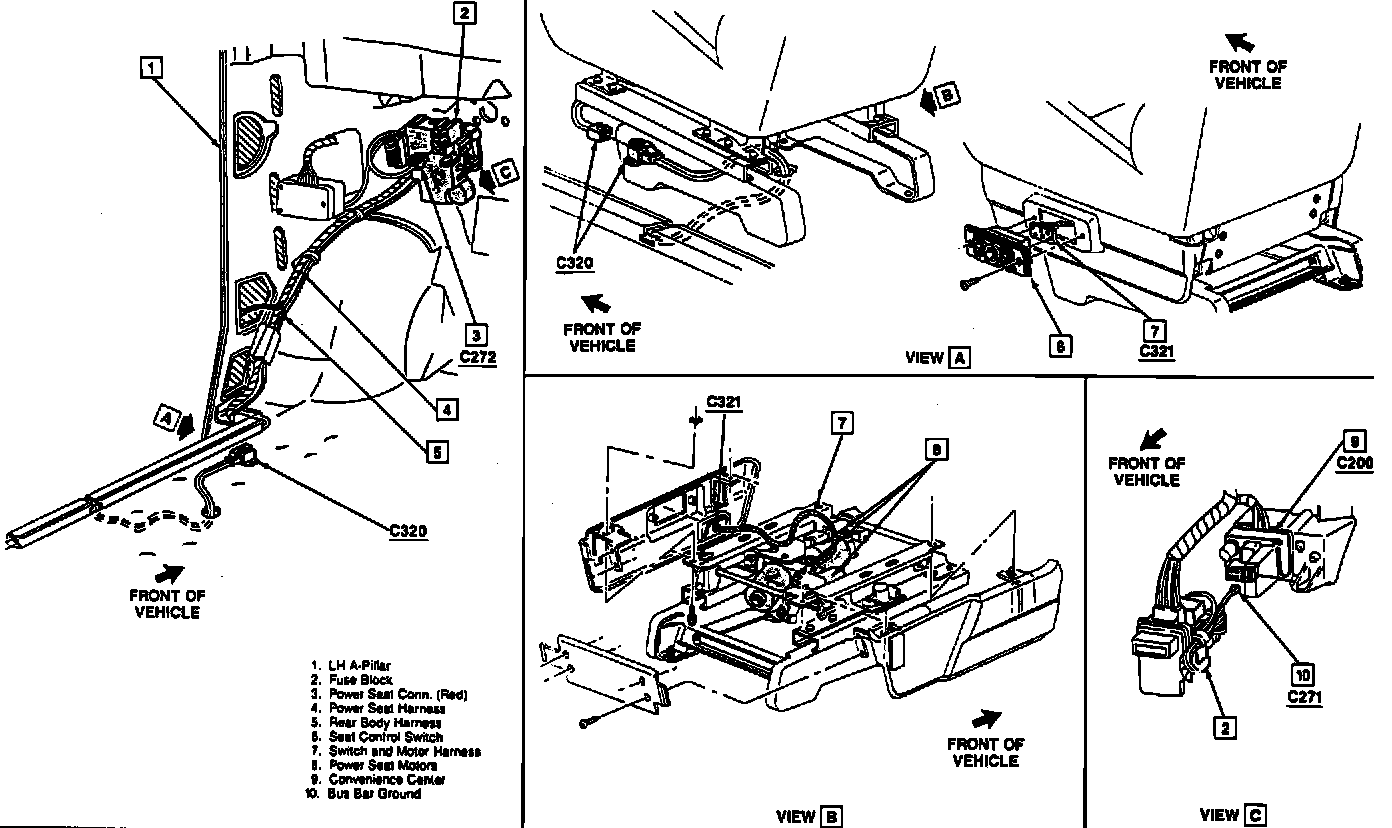

Power Seat Components:

Behind LH Side Of I/P

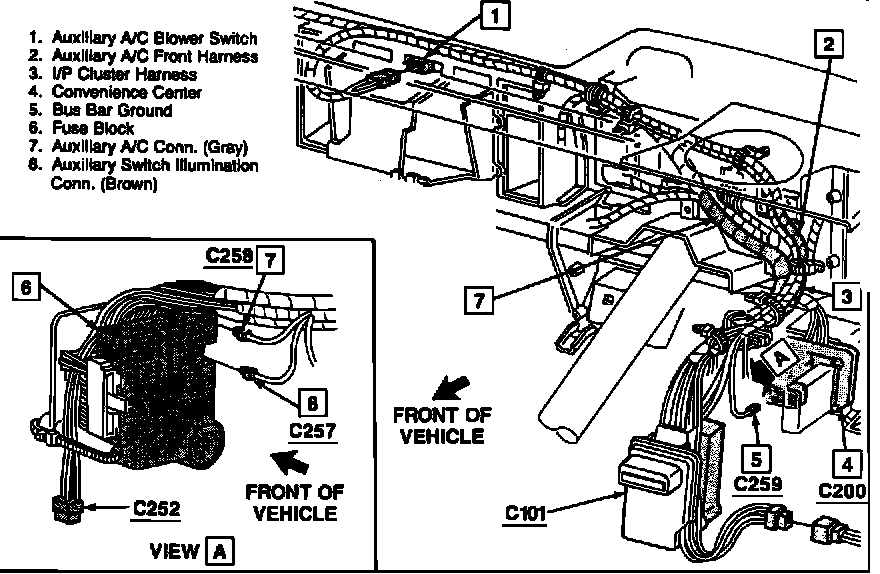

Engine Compartment Components.:

Behind LH Side Of I/P

Applicable to: 1991-92 TBI

Engine Compartment Components.:

Behind LH Side Of I/P

Applicable to: 1992 CPI
