Home >> Chevy Truck >> 1993 >> G 30 Van V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Grounds >> G201

G201

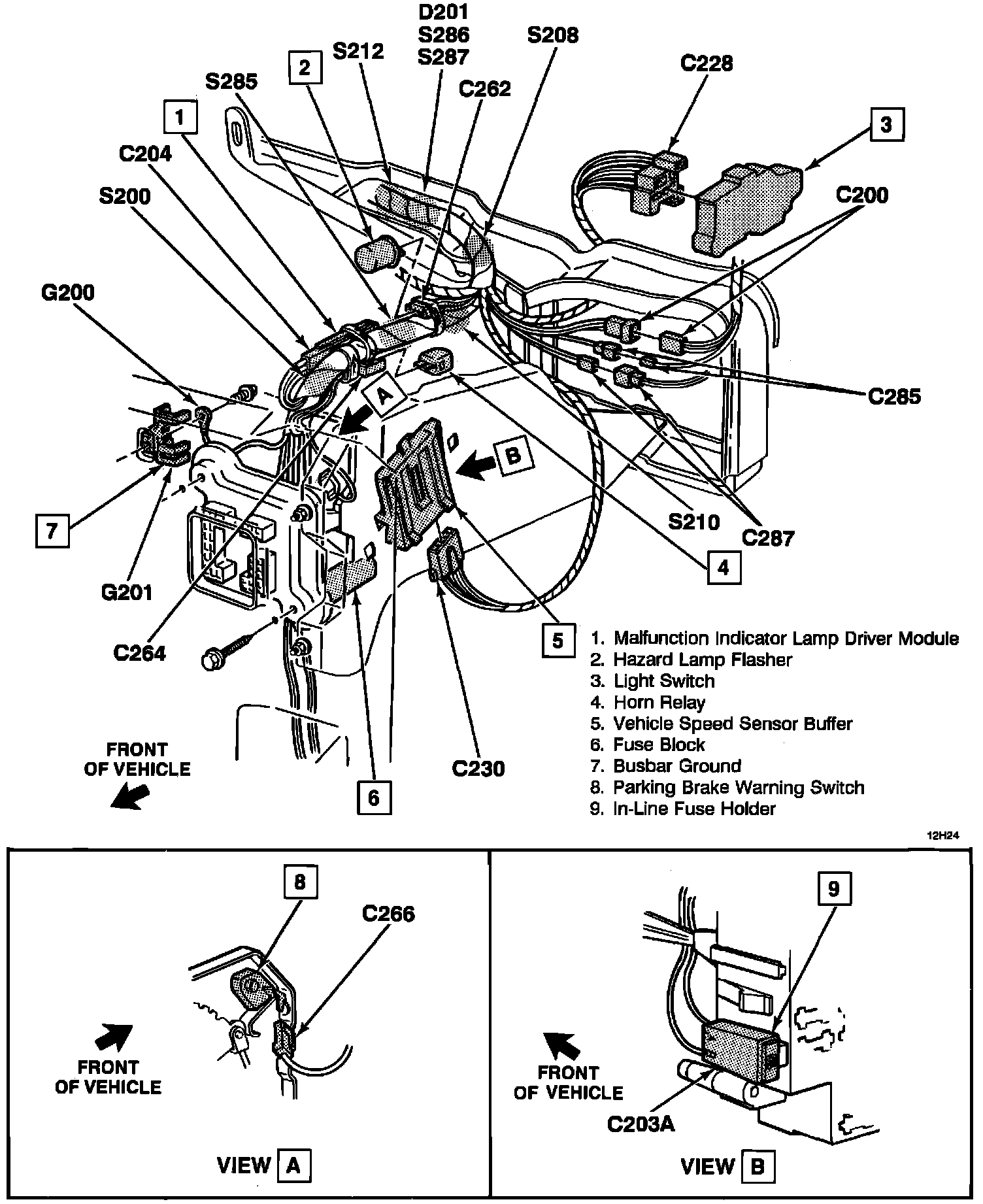

I/P Harness And Controls:

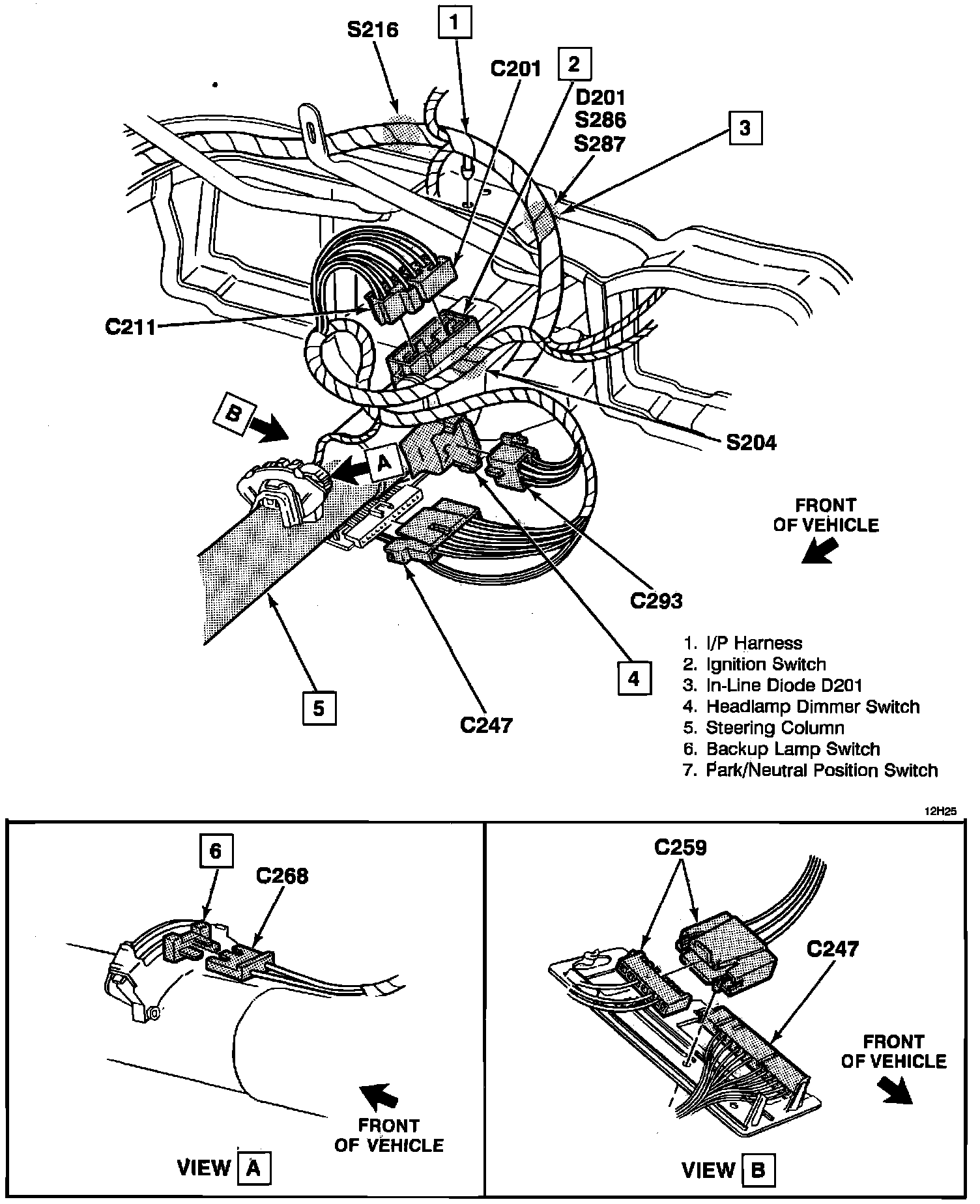

Steering Column Wiring Switches:
