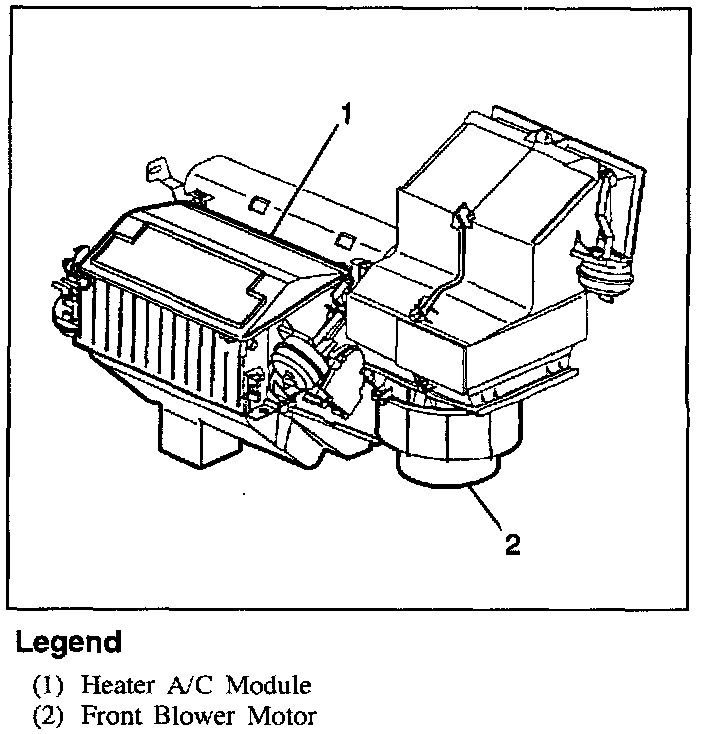

Front A/C

Remove or Disconnect

1. Battery ground (negative) cable.
2. Right-side instrument panel insulator.
3. Blower motor cooling hose.
4. Blower motor electrical connector
5. Blower motor mounting screws.
6. Blower motor.

Install or Connect

1. Blower motor and mounting screws.

Tighten
^ Screws to 20 N.m (15 lb. ft.).

2. Electrical connectors.
3. Blower motor cooling hose.
4. Right-side instrument panel insulator.
5. Battery ground (negative) cable.
