Home >> Chevy Truck >> 2000 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C313/C314

C313/C314

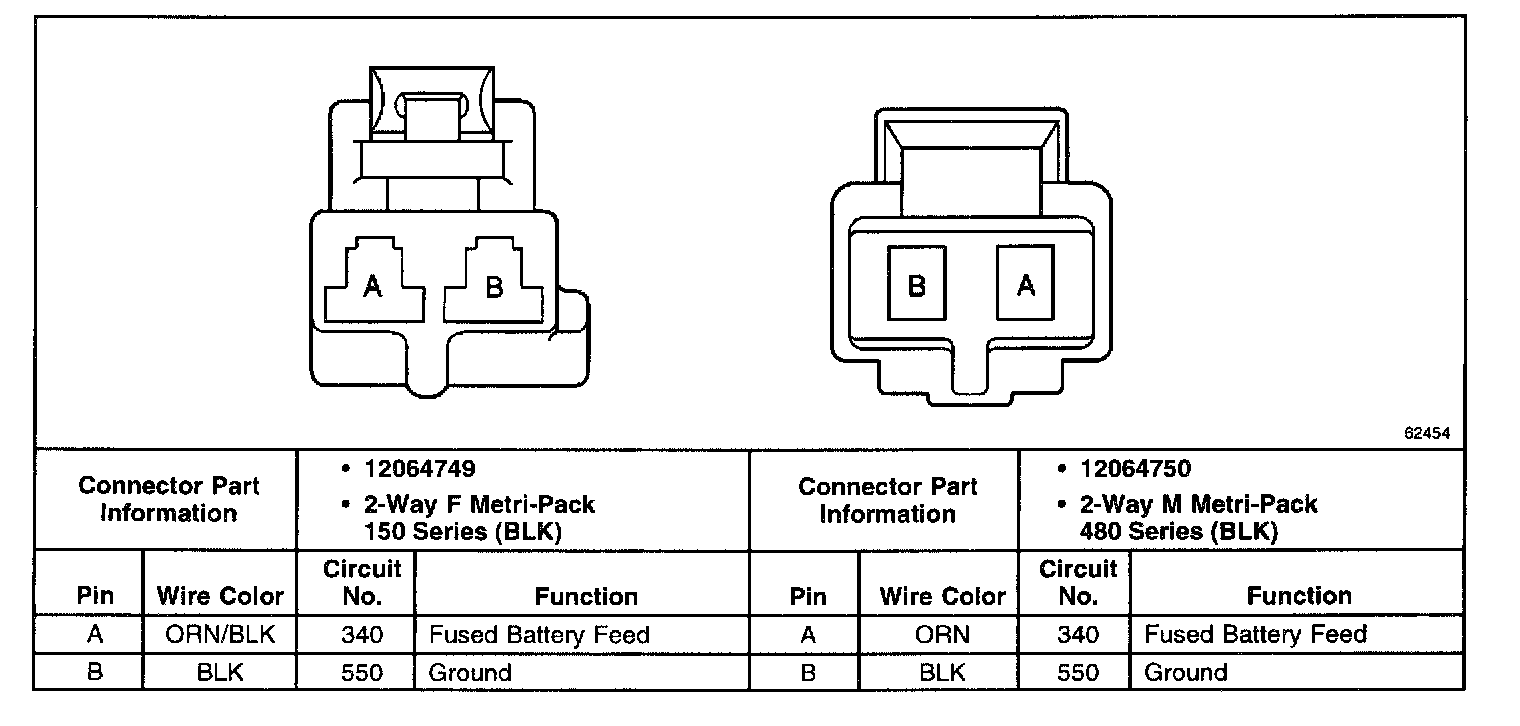

In-line Connector C313/C314:
