Chevy Truck
>>
2000
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Video System Schematics
>>
Video Screen Controls
Video Screen Controls

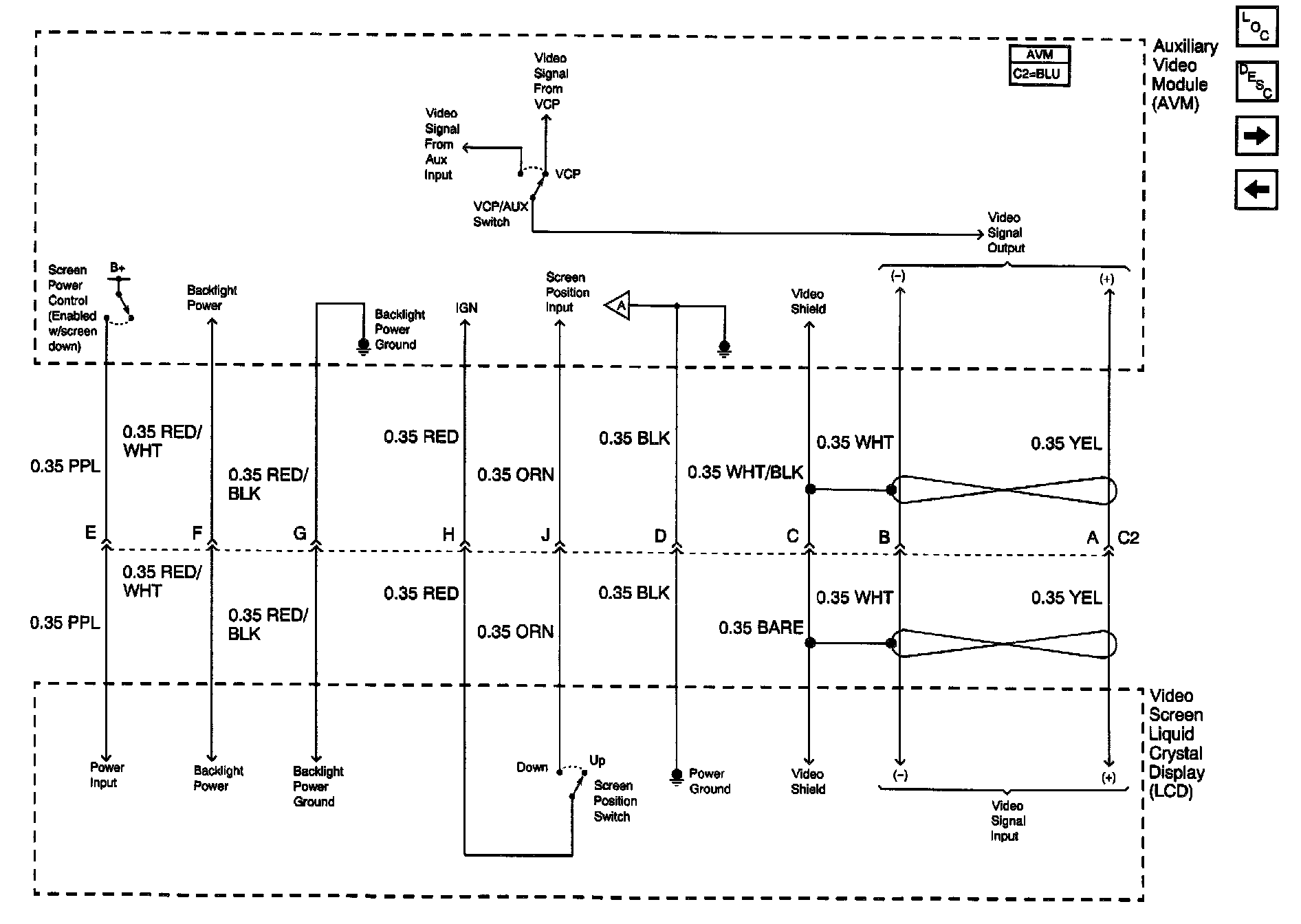

Video System Schematics: Video Screen Controls:
