Chevy Truck
>>
2000
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Connectors By Component Name
>>
Rear Window Wiper/Washer and Multi-function Switch Connector C1
Rear Window Wiper/Washer and Multi-function Switch Connector C1

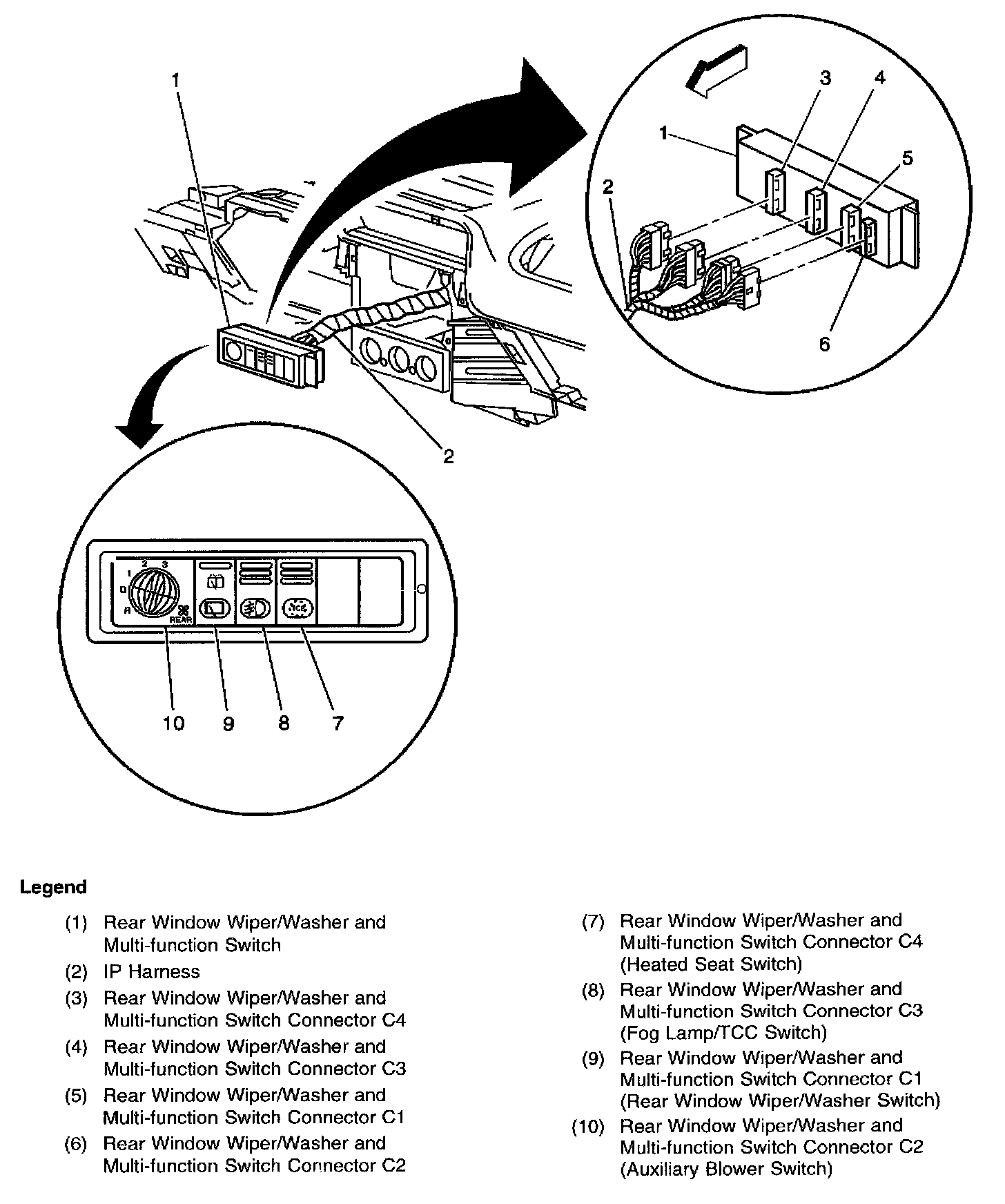

Locations View:
