Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2002
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Actuator
>>
Liftgate
Liftgate

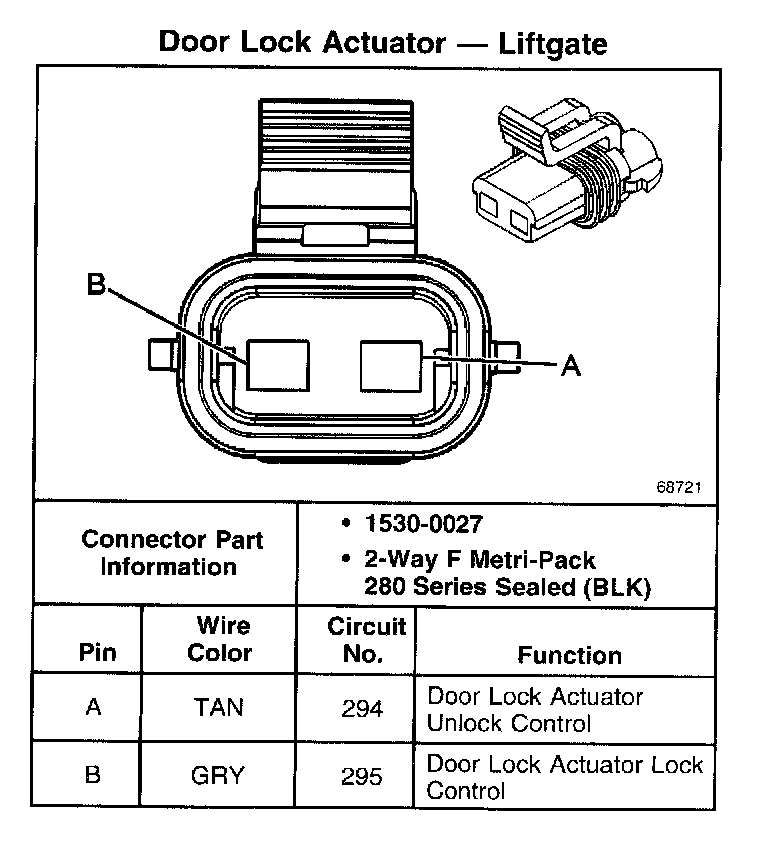

Door Lock Actuator-Liftgate:
