Cellular Phone

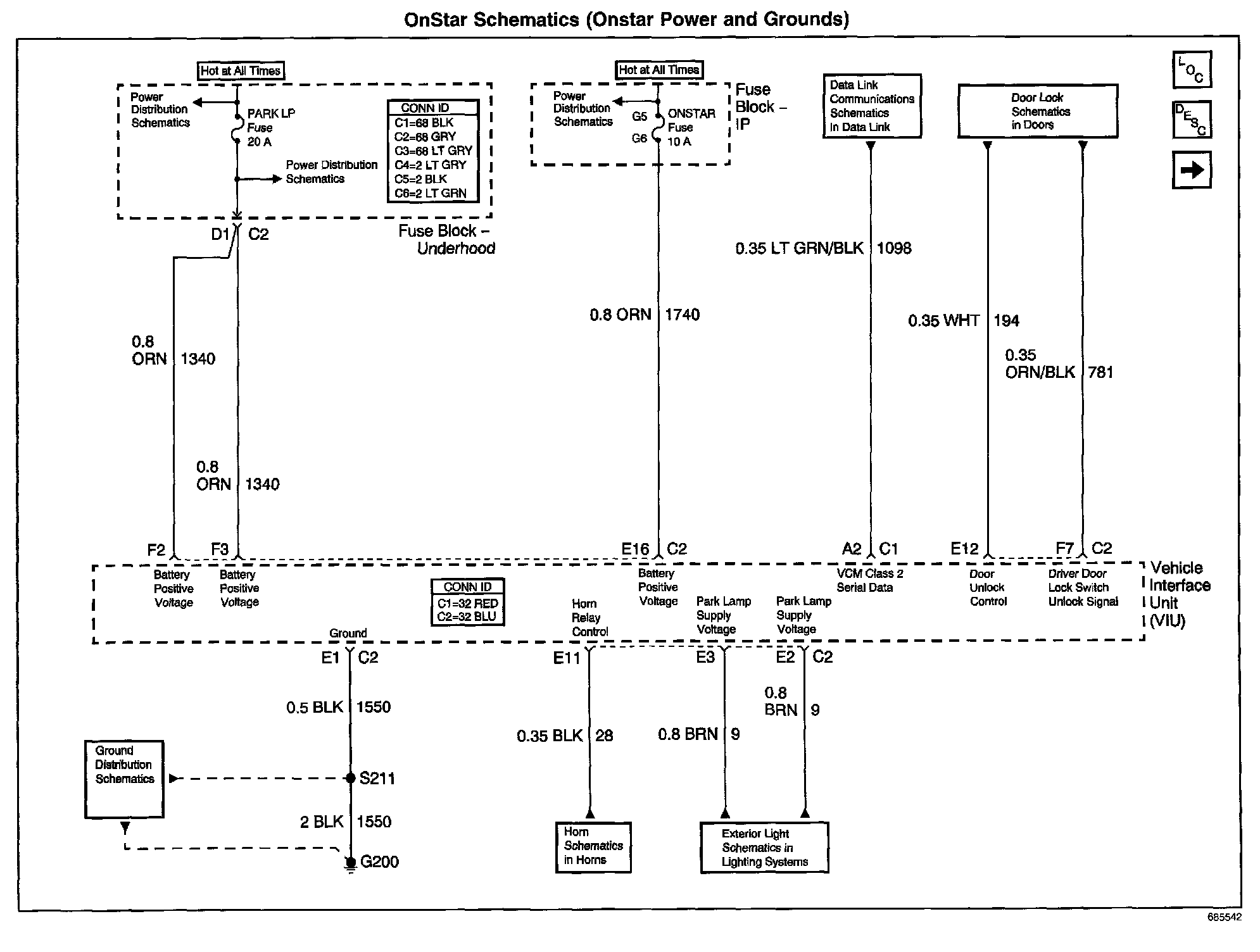

OnStar Schematics: Onstar Power And Grounds:

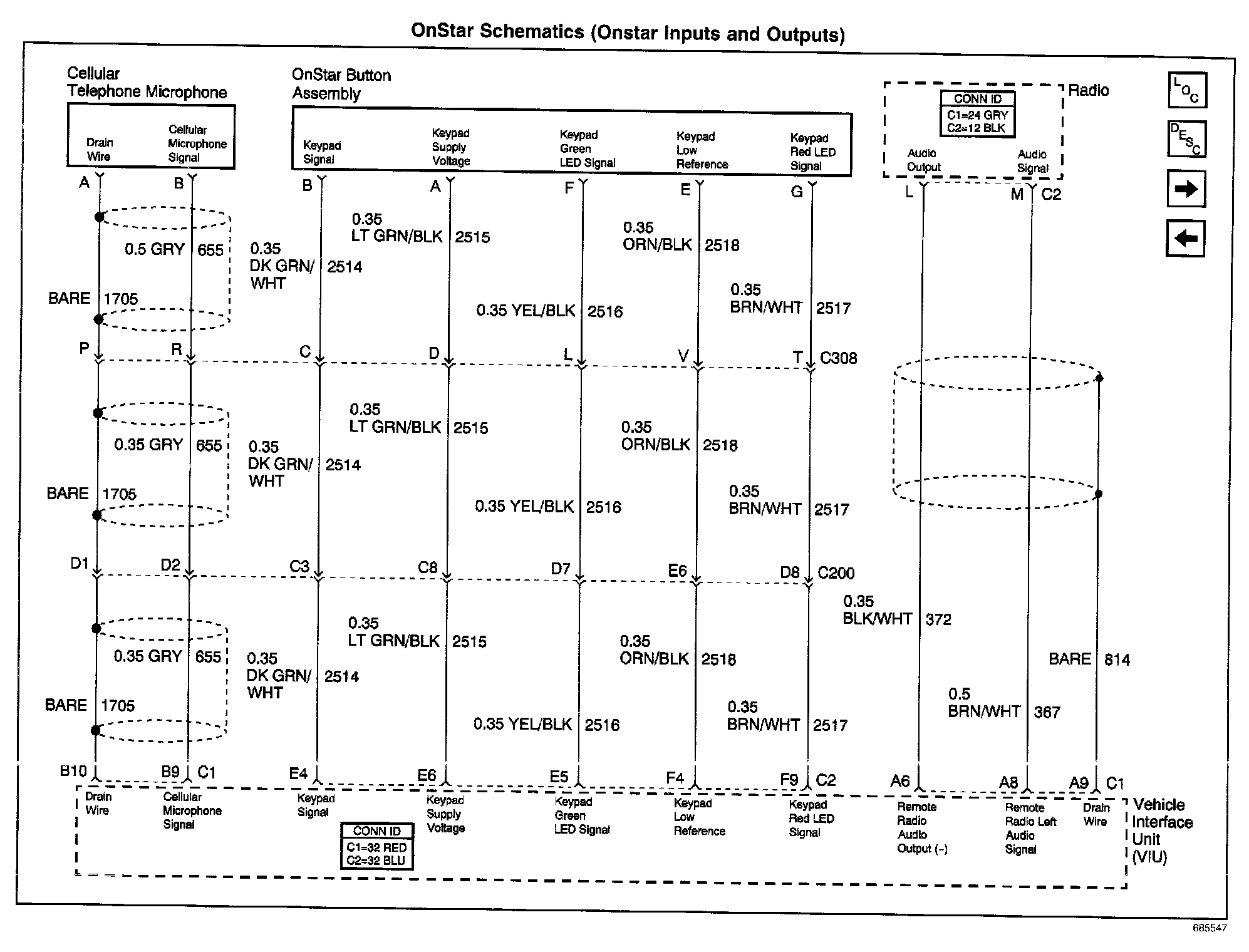

OnStar Schematics: Onstar Inputs And Outputs:

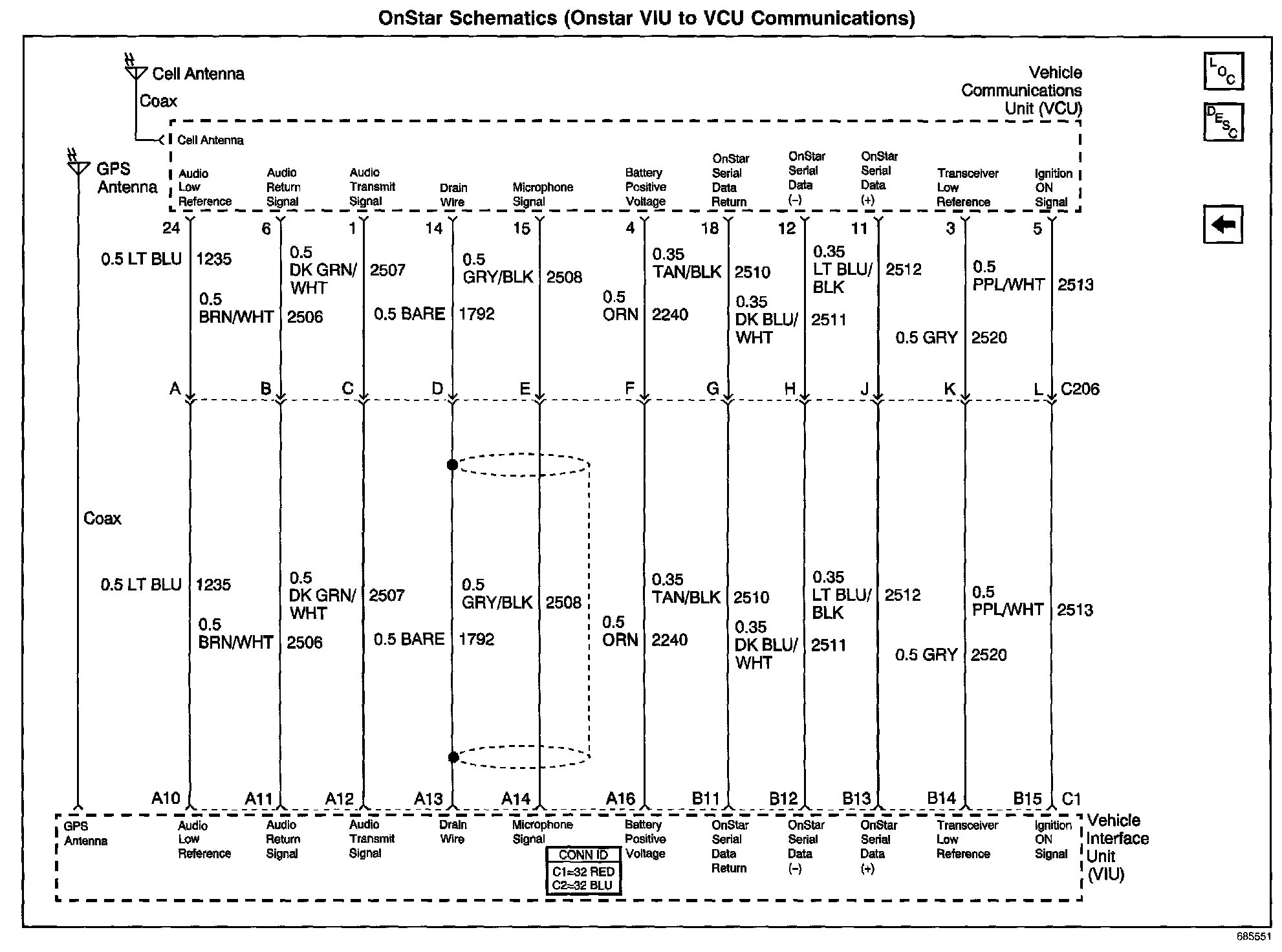

OnStar Schematics: Onstar VIU To VCU Communications:
