Cabin Air Filter / Purifier: Service and Repair

PASSENGER COMPARTMENT AIR FILTER REPLACEMENT

REMOVAL PROCEDURE




1. Open the IP compartment door.
2. Remove the rear inside IP compartment door.

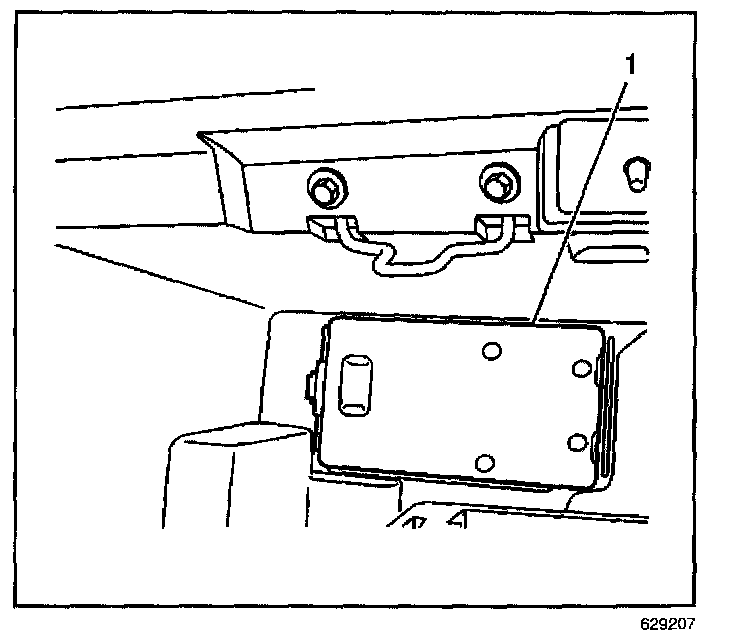

3. Open the HVAC module assembly access door (1).

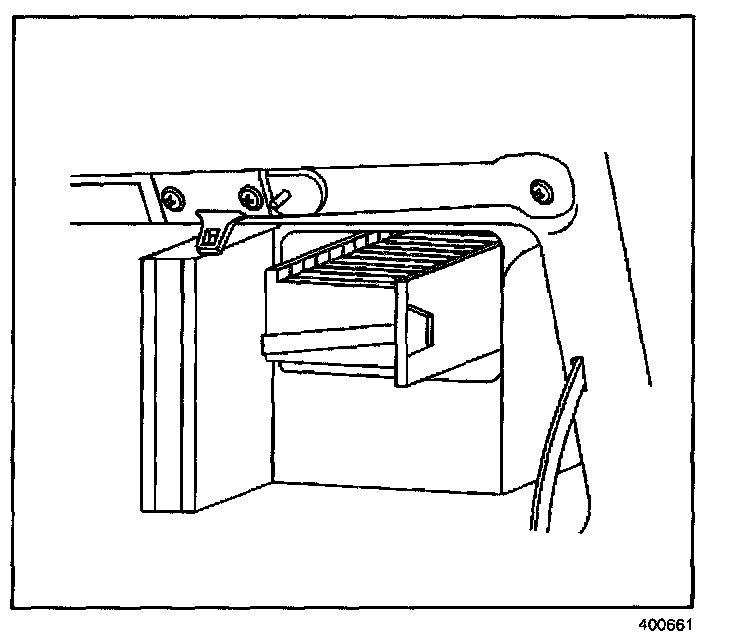

4. Pull out and remove the first passenger compartment air filter.
5. Slide the remaining passenger compartment air filter to the opening.
Pull out and remove the remaining passenger compartment air filter.

INSTALLATION PROCEDURE

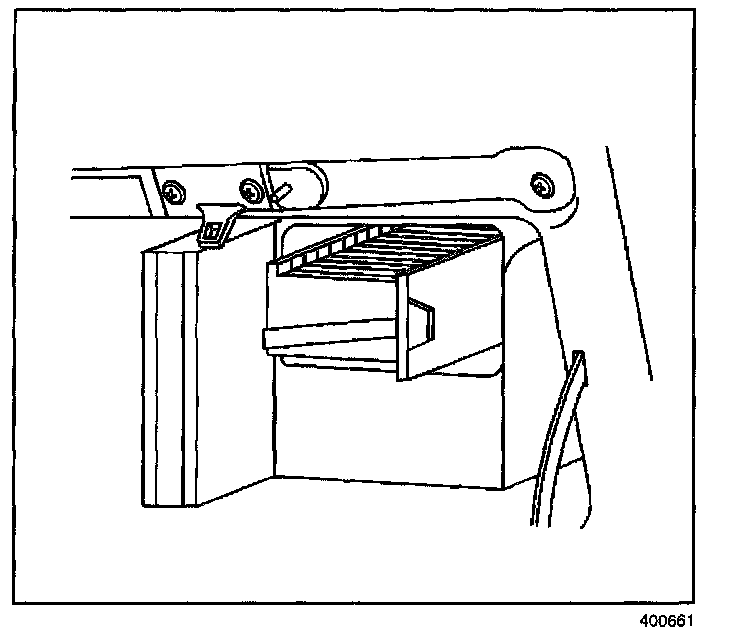

1. Install the first passenger compartment air filter into the opening.
Slide the first passenger compartment air filter over.
2. Install the remaining passenger compartment air filter directly into the opening.

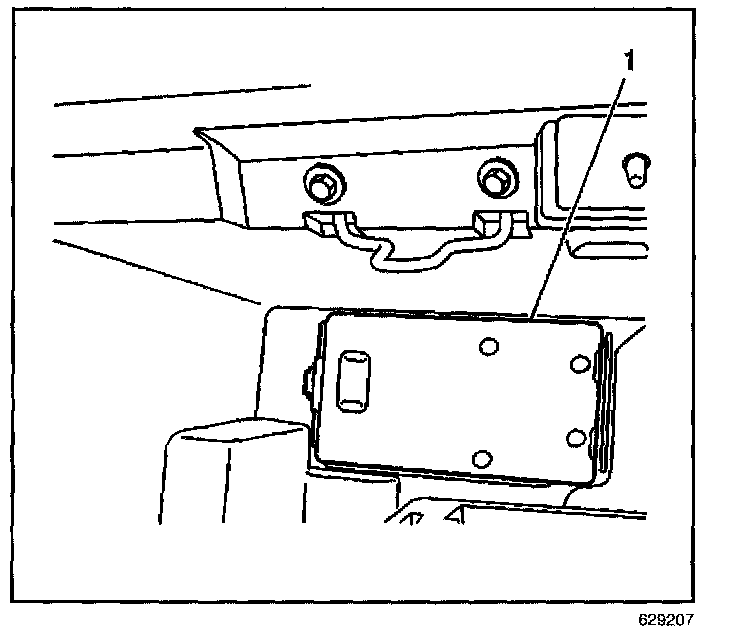

3. Close the HVAC module assembly access door (1).
4. Install the rear inside IP compartment door.
5. Close the IP compartment door.
